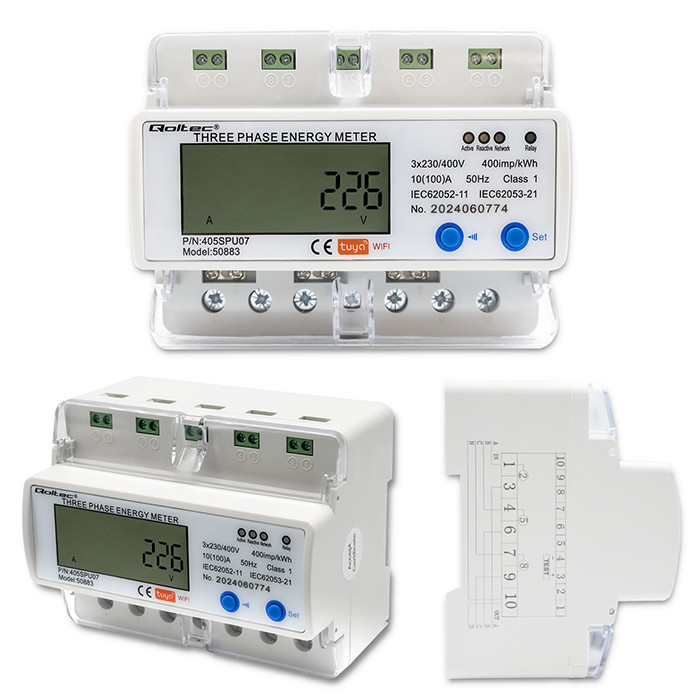

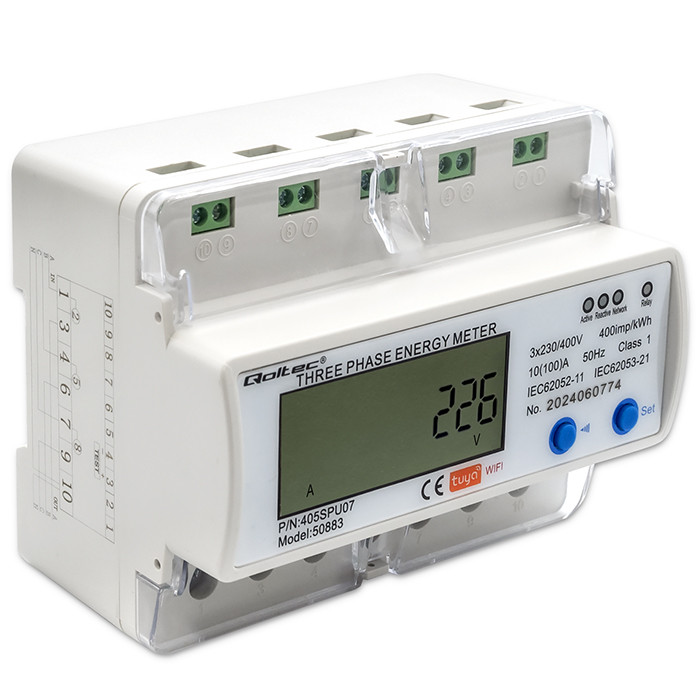

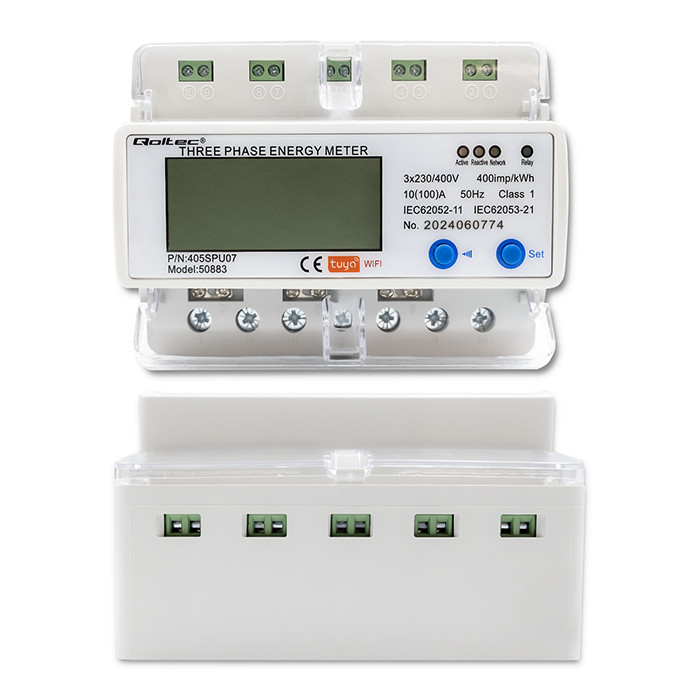

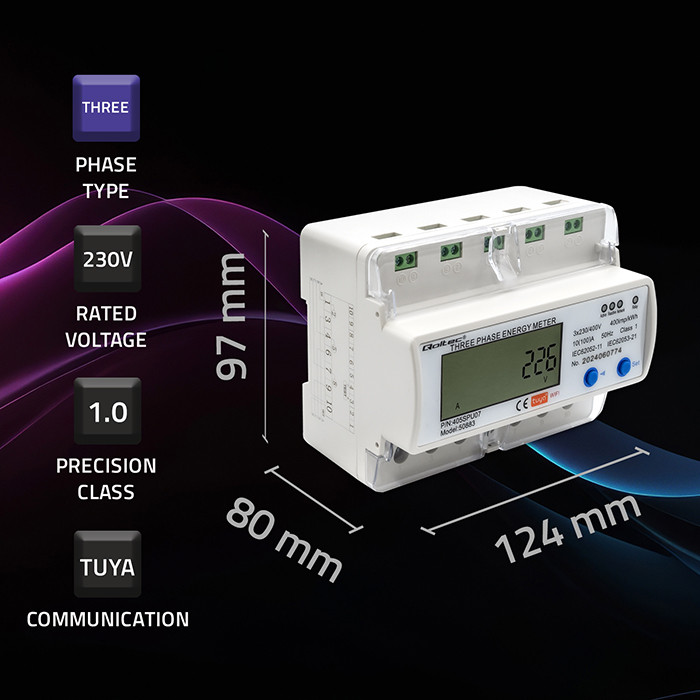

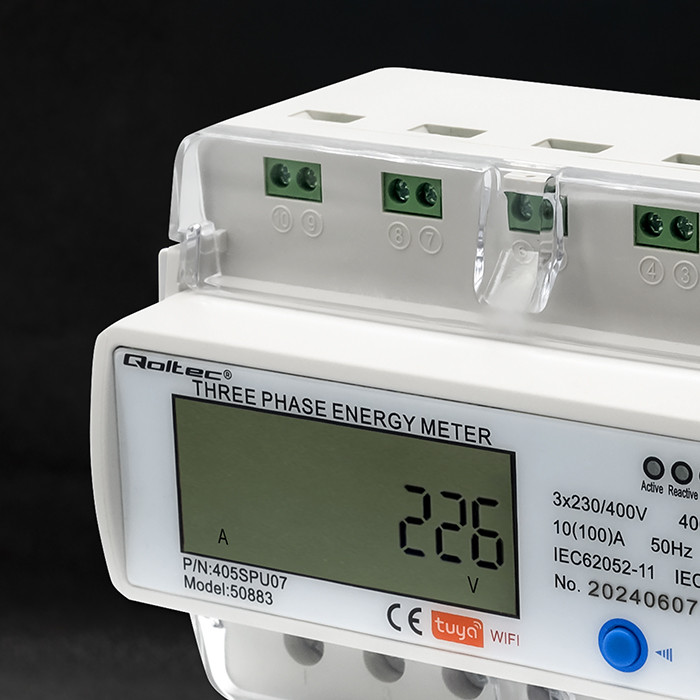

Qoltec Three-phase electronic meter | DIN rail energy consumption meter | 400V | LCD | Wi-fi

Powered by AC 230V/400V, for DIN rail35

Electronic meter enables real-time monitoring of the level of electricity consumption by three-phase receivers supplied with 230V/400V alternating current 50Hz frequency. Operating at an inrush current of 0.4%Ib and 230V AC at 50Hz, the meter is extremely efficient and stable. The device has an LED indicator, which indicates energy consumption, the diode flashes at a frequency that depends on the energy consumed with a pulsing constant of 400imp/kWh. LCD display, indicates the value of energy consumed converted based on the number of pulses. The meter is designed for mounting in switchboards on DIN rail TH35.

Accuracy class 1.0, single-phase, unidirectional, base current 5A

Thanks to its small size, installation is extremely easy and fast, making it ideal for both domestic and larger industrial applications. LCD display provides clear and accurate data on energy consumed, which allows for effective management of energy consumption and identification of potential savings.

Product Features :
- Three-phase,,
- Unidirectional, counts energy regardless of the direction of its flow,

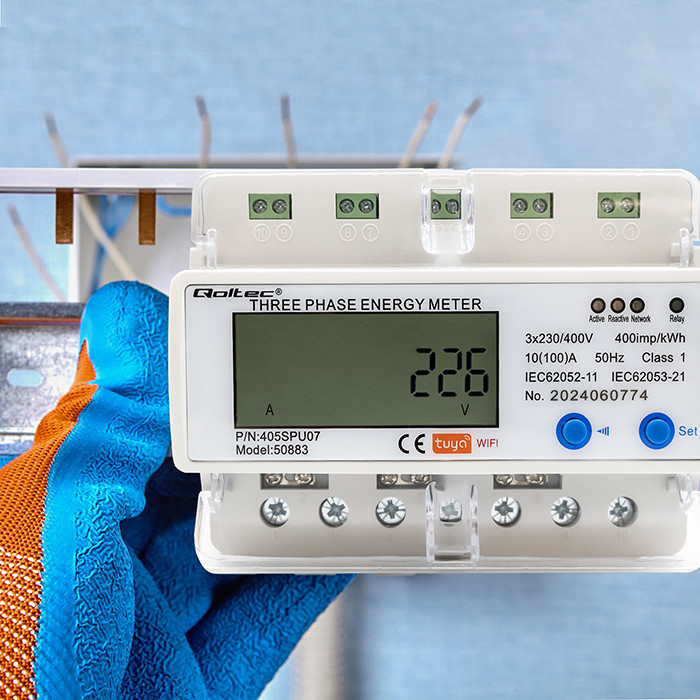

- Standard mounting of the device on 35mm DIN rail,
- Energy consumption measurement displayed in kWh,
- Direct measurement is 10(100)A,
- Complies with IEC 62053-21 and DIN EN50022 standards,
- Accurate measurement, Class 1.0,
- Base current is 10A, maximum current is 100A,
- Possibility of remote monitoring thanks to Wi-Fi module and Tuya app.

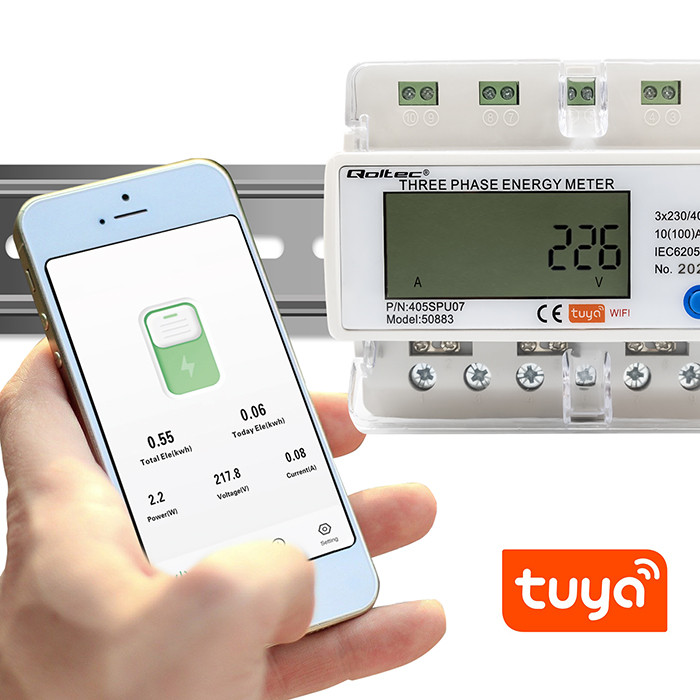

Wi-Fi function and the ability to monitor energy consumption via the Tuya app

In addition, the meter is equipped with a Wi-Fi module, which allows remote monitoring of energy consumption via the Tuya app. This is a particularly useful solution for people who want to have full control over their energy consumption, even while away from home or office, as long as the user has access to the Internet. With the Tuya app You can easily determine which devices generate the highest costs, which enables better energy management.

Do you care about the high quality of the product you are buying? Our solutions will meet your expectations. Product covered by a 24-month guarantee from the date of purchase.
