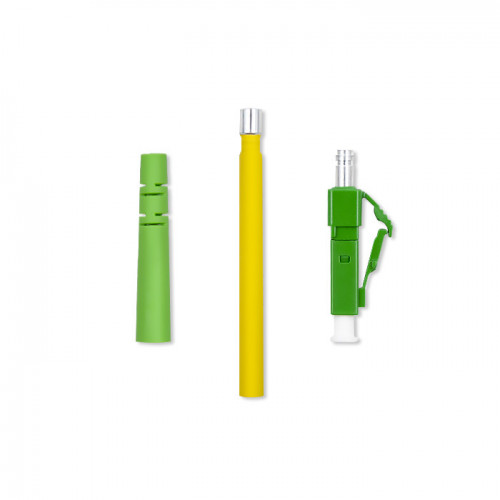

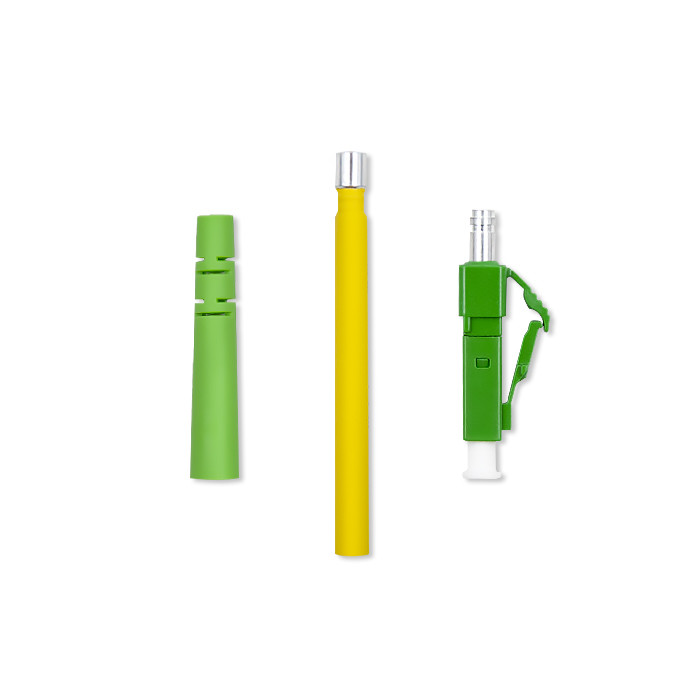

Qoltec LC/APC fiber connectors | Singlemode | 2.0mm | Mounting set | 200pcs.

Qoltec LC/APC fiber connectors | Singlemode | 2.0mm | Mounting set | 200pcs.

Product code: 54431

Optical fiber connector designed to connect optical fibers.
Connectors: LC/APC
Fiber Type: Singlemode

Fiber optic connector
Fiber optic connectors are designed to connect optical fibers. They allow to switch and connect optical lines. Thanks to the highest quality optical connectors the lowest attenuation is guaranteed. Each connector is different, depending on the type of optical fiber and the size and polishing method of the ferrule. Ferrula is a tube, which is made of ceramic sinter and it is a cover and guide for optical fiber in connector.
LC/APC connectors
The advantage of LC connectors is their small size, which makes them suitable for use in areas that have a high density of switching fields. They also have a latching locking system, which prevents the connector from being accidentally pulled out. LC connectors are used in LAN, WAN and FTTD networks, on railroads, in telecommunication networks, in cable TV networks and in measurement technology. The APC connector has a polished ferrule face at an angle of 8 degrees, so that the phenomenon of reflectance, which occurs when light passes through the border of media, has much less influence on the attenuation of the connector.
Trust confirmed by warranty

Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of the fiber optic connectors we offer is covered by a 24-month warranty valid from the date of purchase.

CONFIDENCE CONFIRMED BY A WARRANTY

Do you want a high quality product? Our solutions will meet your expectations. Each connector we offer comes with a 24-month guarantee valid from the date of purchase.


Technical data
Producer
Qoltec
Type connectors
LC/APC
Fiber type
Singlemode
Usage
Telecommunications, industry, wide-area and local city networks, passive fiber-optic networks, cable TV.
Diameter cable
2.0 mm
Package size
200 x 200 mm
Package contents

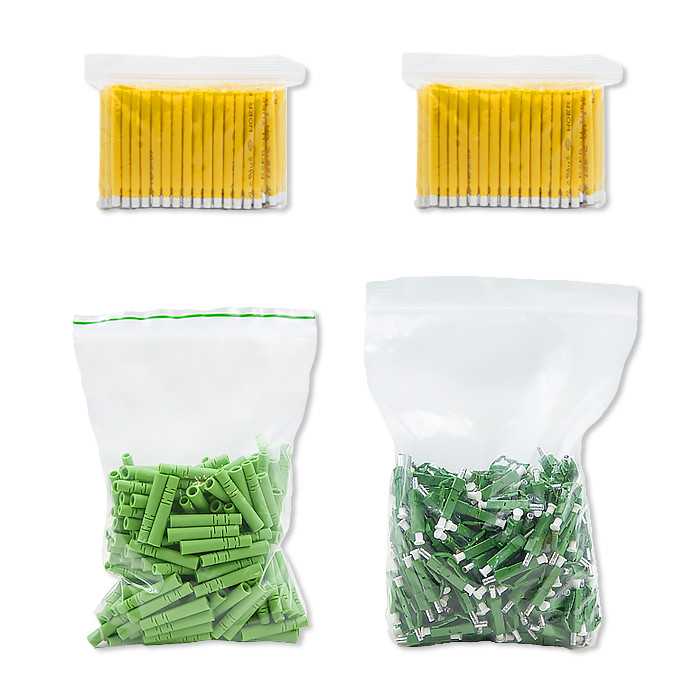

Complete mounting set LC/APC connector 200 pcs.
Package
Polybag
Package depth / length [mm]
100
Package width [mm]
20
Package height [mm]
160
Net weight [kg]
0.2810
Gross weight [kg]
0.2820
Warranty
24 months
EAN code
5901878544311
