Qoltec UTP network cable| CAT5E | 305m | PVC grey
Qoltec Cable Patchcord UTP | CAT5 | UTP | 10m
Qoltec UTP network cable | CAT6 | 305m | PVC grey
Product code: 50359
Qoltec brand UTP drop cable, unshielded with a length of 305m. It will work well in telephone installations, computer networks, CCTV systems. The cable is made of CCA copper cable. The outer sheath of the cable was made of PVC.
Stable data transmission
UTP CAT6 cable by Qoltec with a length of 305 m designed for indoor installations especially in data communication networks, computer networks, power transmission, data transmission and monitoring systems. The cable can also be used for transmission of digital HDTV.
High quality construction
Qoltec brand cable features:
- high quality workmanship confirmed by warranty,
- cable sheath made of PVC, resistant to mechanical damage,

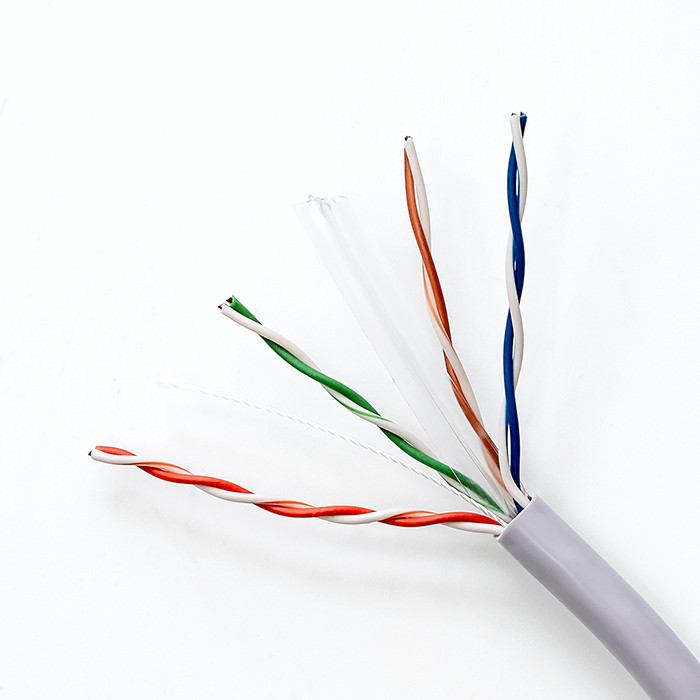

- single-wire copper conductors, paired,
- designed for indoor installation,
- high quality workmanship confirmed by warranty,
- cable sheath made of PVC, resistant to mechanical damage,
- single-wire copper conductors, paired,
- designed for indoor installation,
Confidence confirmed by a warranty
Do you care about the high quality of the product you buy? Our solutions will satisfy your expectations. Product is covered by a 25 years warranty valid from the date of purchase.
Technical data
Producer
Qoltec
Category
Cat6
Class
UTP
AWG cross section
23AWG
Insulation resistance
500Ω/km Ref
Characteristic apparent resistance (1-100MHz)
100+/15Ω (1-100 MHz) ; 100+/-22Ω (100-250MHz)
DC Resistance
115Ω/km Ref
Delayed propagation
548ns/100m
DC system
500V DC/1min
Nominal propagation speed (NVP)
69%
Conductor cross-sectional area
8 x 0.50 mm (24AWG)
Insulation material
HDPE
Usage
Indoor
OTHER PARAMETERS
Colour
Grey
Material
PVC
Cable length
305 m
Package depth / length [mm]
242
Package height [mm]
380
Package width [mm]
380
Net weight [kg]
9.000
Gross weight [kg]
9.100
Warranty
25 years
EAN code
5901878503592
