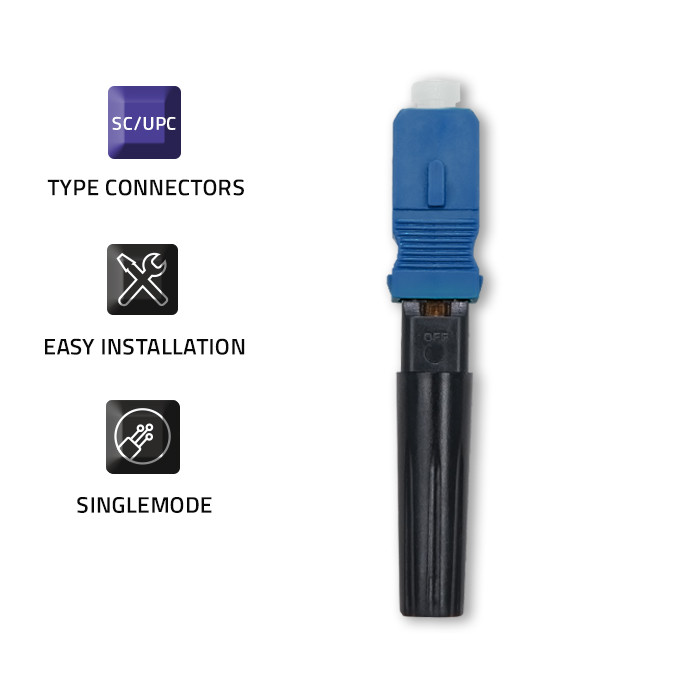

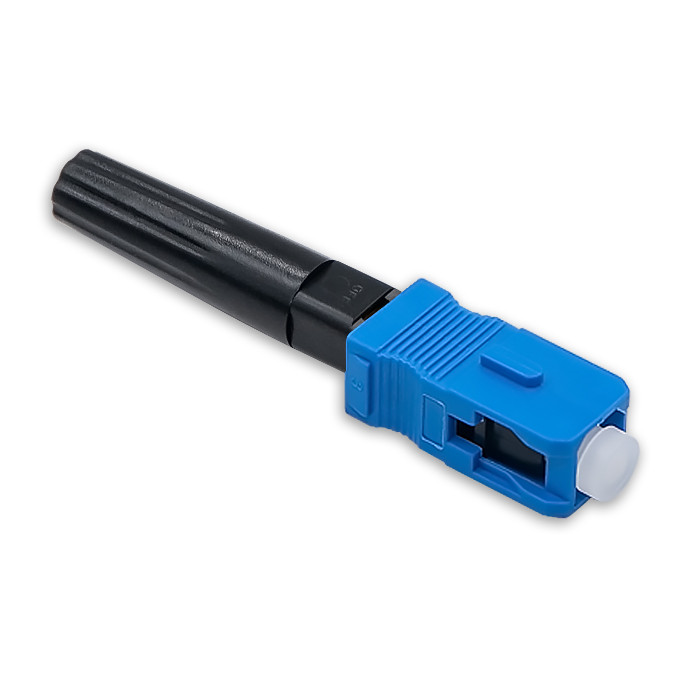

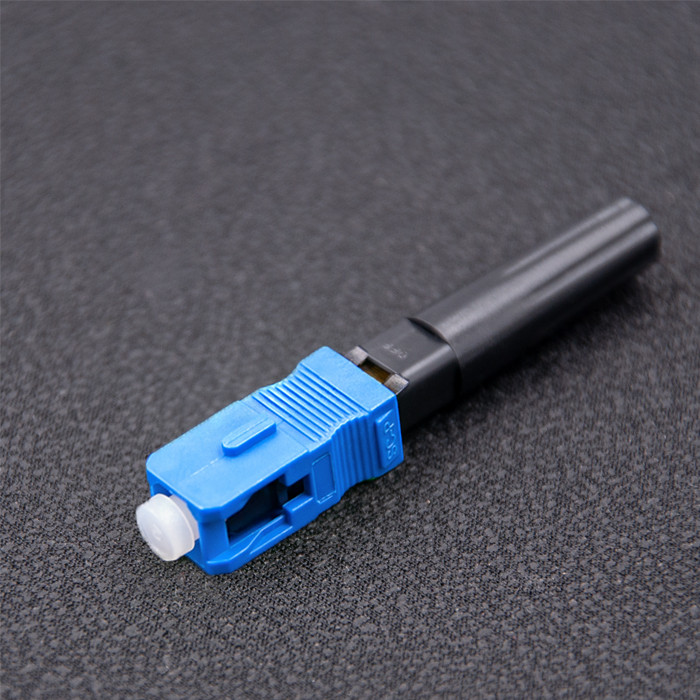

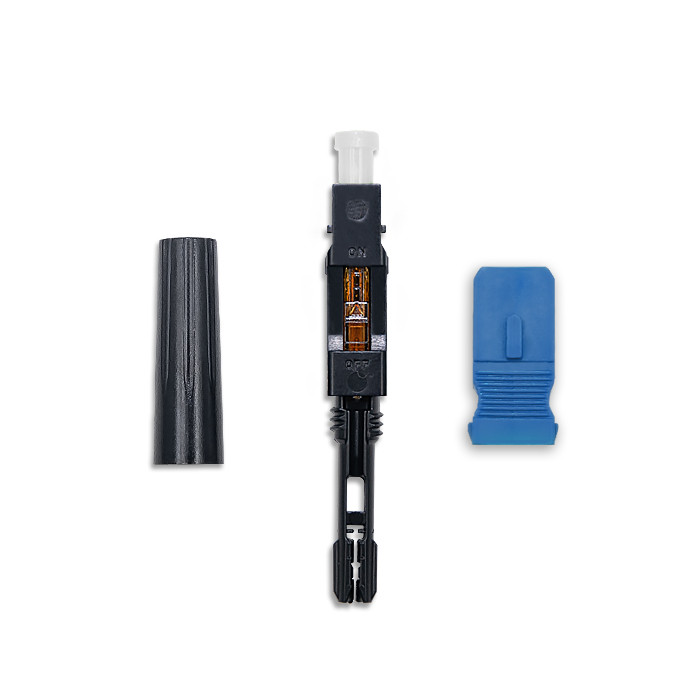

Qoltec SC / UPC fiber optic quick connector | Singlemode | 0.9 | Set of 10 pcs

Qoltec SC / UPC fiber optic quick connector | Singlemode | 0.9 | Set of 10 pcs

Product code: 54499

The fast connector allows the termination of optical fiber without the need for welding.
Connectors: SC/UPC
Fiber type: Singlemode

Fiber optic fast connector
 Fiber optic fast connector Fiber optic fast connectors guarantee low attenuation and allow fiber optic termination without the need for welding.
The fast connectors are suitable for terminating optical lines wherever conventional glued optical connectors are used, e.g. for terminating optical fibres in building switch boxes.
SC / APC connectors
SC connectors are designed for use in telecommunications. They are also used in active devices such as video converters and media. They ensure quick and easy connection and are resistant to connection defects. The shape of the joint allows for easy and safe installation. In addition to telecommunications applications, the SC fiber optic connector is used in LAN and WAN networks, CATV networks, measurement techniques, sensor systems and on railways. The APC connector has a polished end face of the ferrule at an angle of 8 degrees, thanks to which the reflectance phenomenon occurring when the light passes through the interface has a much smaller impact on the attenuation of the connector.
Trust confirmed by warranty

Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of the quick couplers we offer has a 24-month warranty valid from the date of purchase.


Technical data
Producer
Qoltec
Type connectors
SC/UPC
Fiber type
Singlemode
Diameter cable
0.9 mm
Package contents
Qoltec SC/UPC fiber optic fast connector 10 pcs
Package
Polybag
Package depth / length [mm]
15
Package width [mm]
70
Package height [mm]
120
Net weight [kg]
0.0030
Gross weight [kg]
0.0040
Warranty
24 months
EAN code
5901878544991
Technical support

If you have problem with this product please contact us using this form.
You can also contact us using telephone, phone numbers are in contact.

I have problem with this product
Retail sales

You can find our product in well known stores with electronic equipment.

Wholesale

Ntec is an exclusive distributor of Qoltec product in Poland www.en.b2b.ntec.eu

Safety information
English safety information
