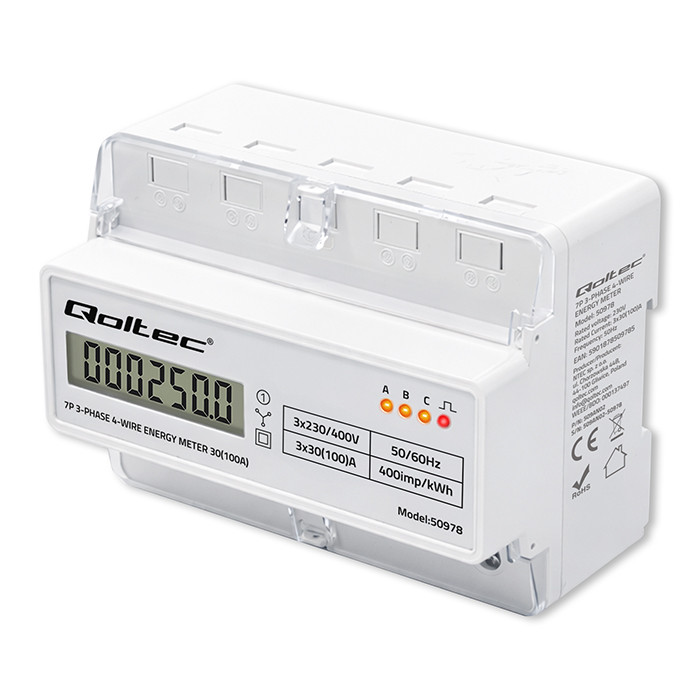

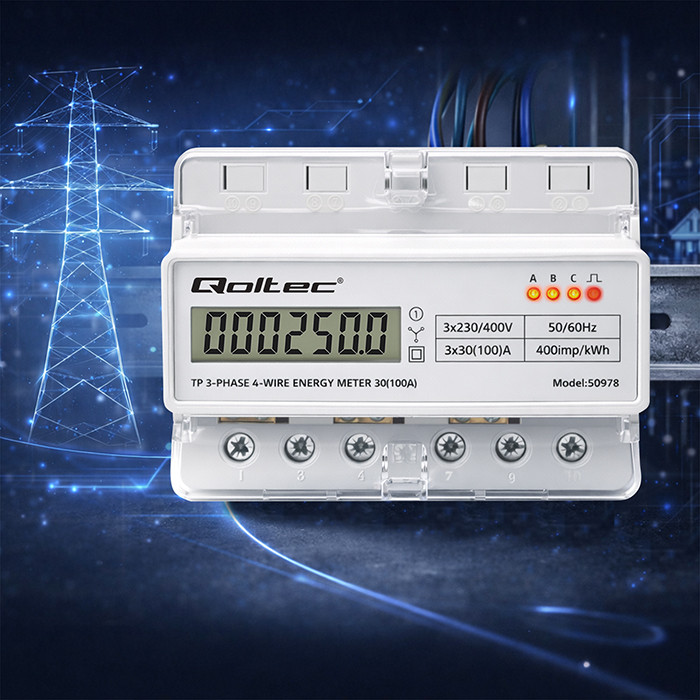

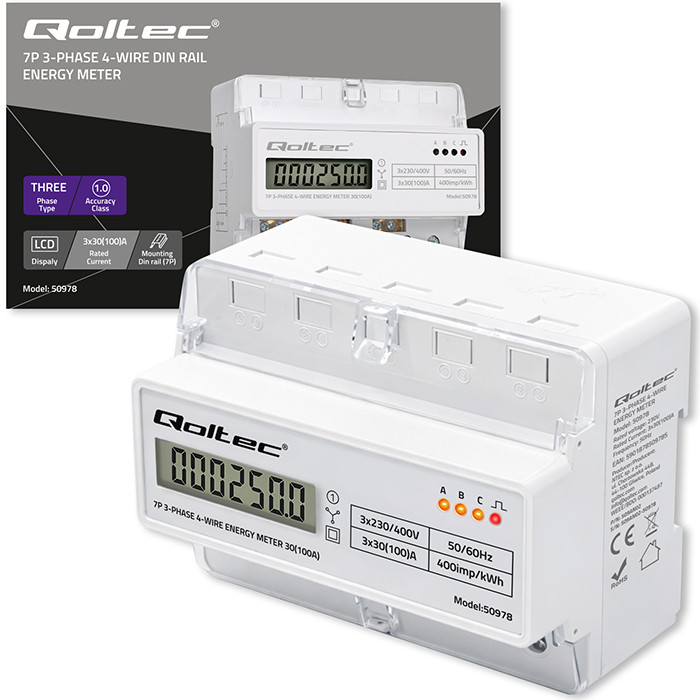

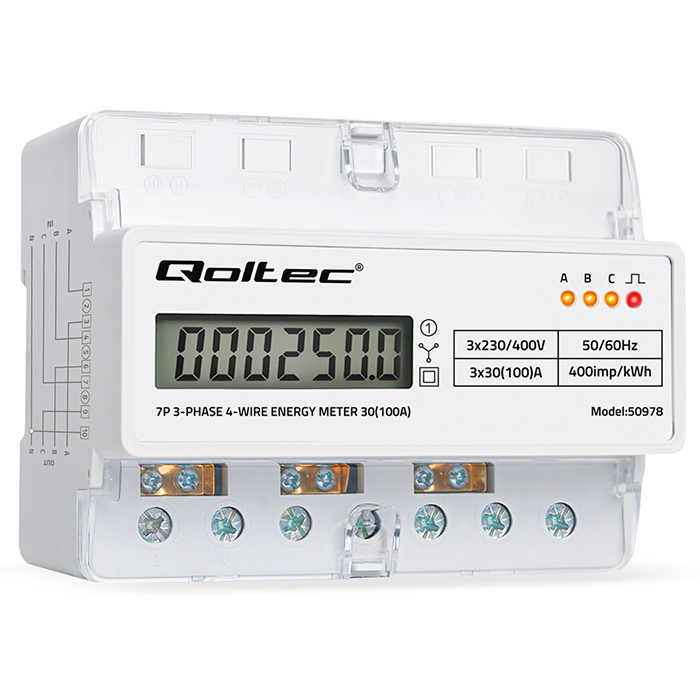

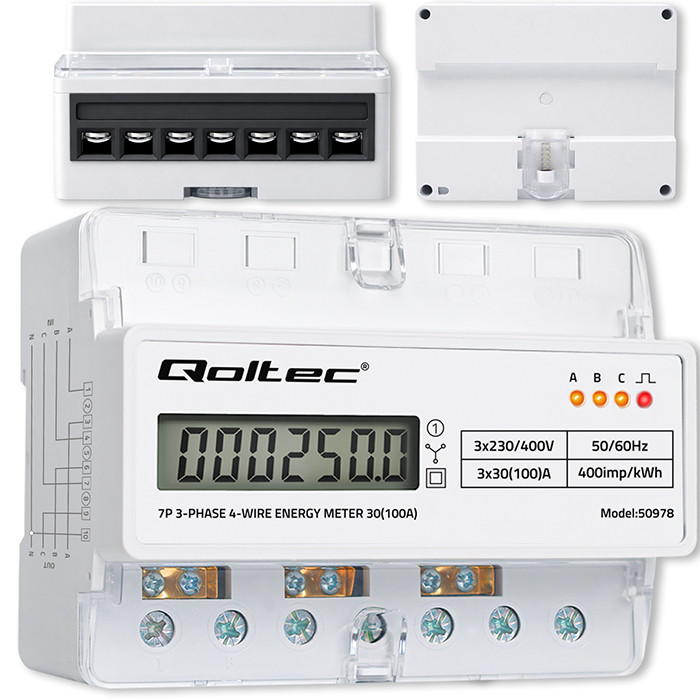

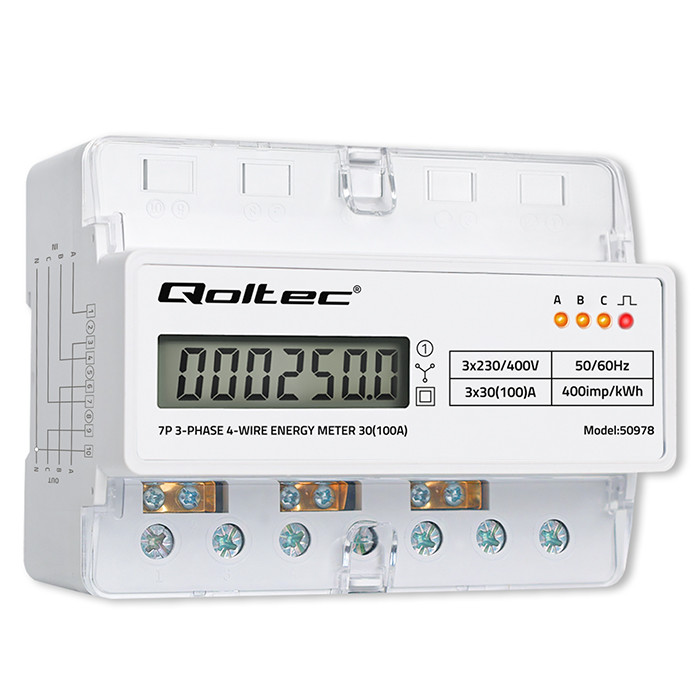

Qoltec Three-phase electronic meter | energy consumption meter for DIN rail | 400V | 100A | LCD | LED | 7P

Powered by 230V/400V AC, for DIN35 rail mounting

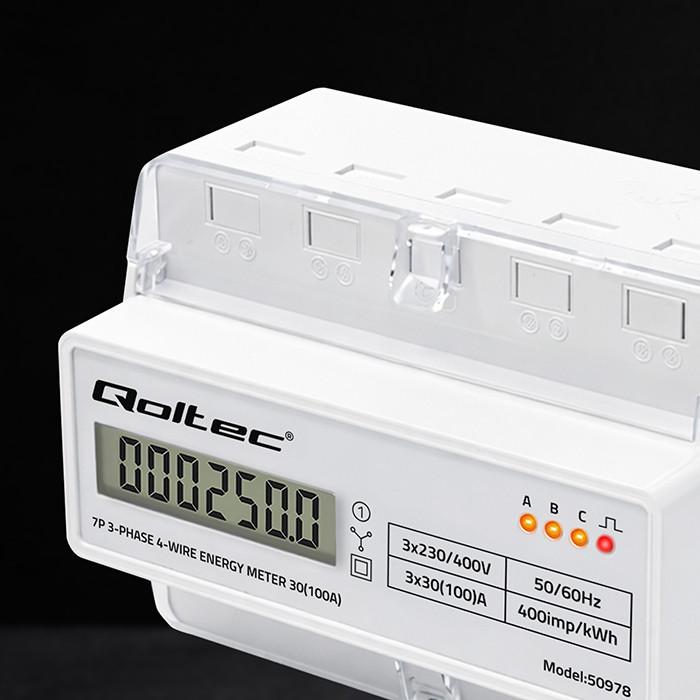

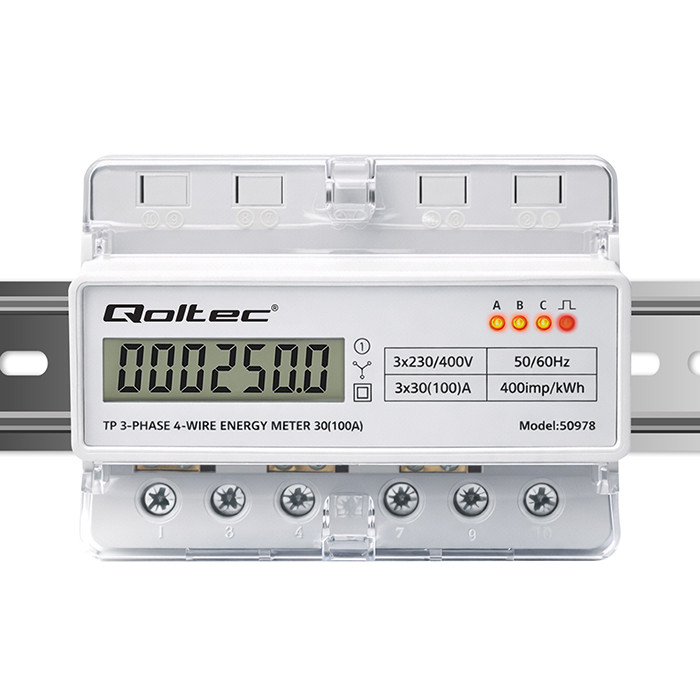

The electronic electricity consumption meter allows you to monitor the level of electricity consumption by three-phase receivers powered by 230V/400V alternating current with a frequency of 50Hz. The device has an LED indicator that signals energy consumption; the diode flashes at a frequency that depends on the energy consumed, with a constant pulse rate of 400 pulses/kWh. The LCD display shows the value of the energy consumption calculated on the basis of the number of pulses. The meter is designed for installation in switchboards on a DIN TH35 rail. An additional advantage of the product is its very easy operation and small size, which will certainly facilitate the installation of the device.

Accuracy class 1.0, three-phase, single-directional, maximum current 100A

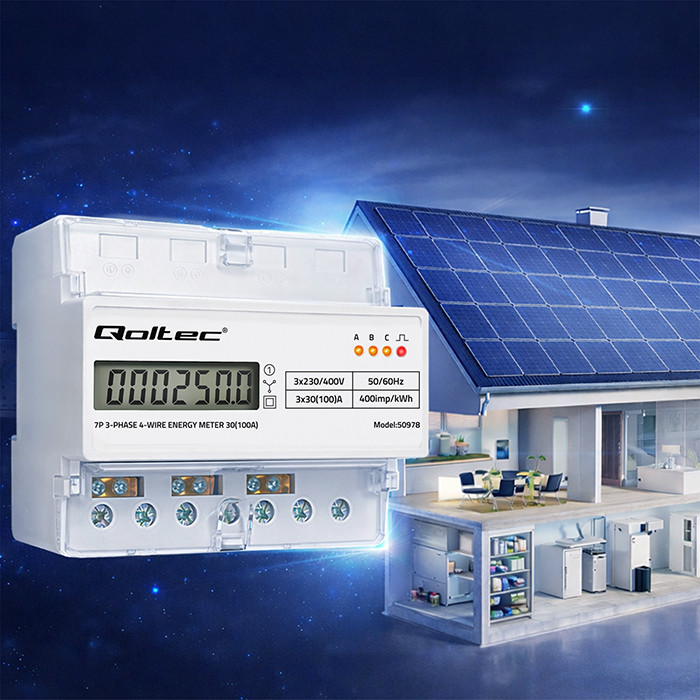

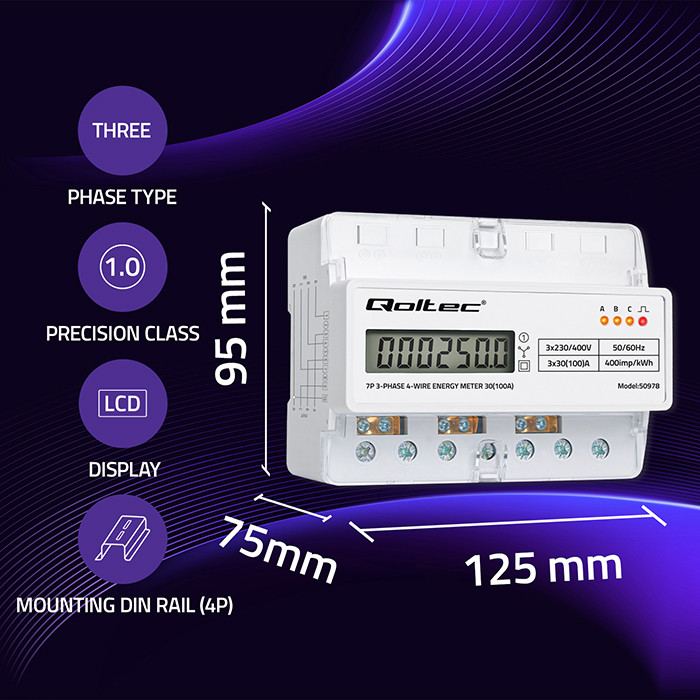

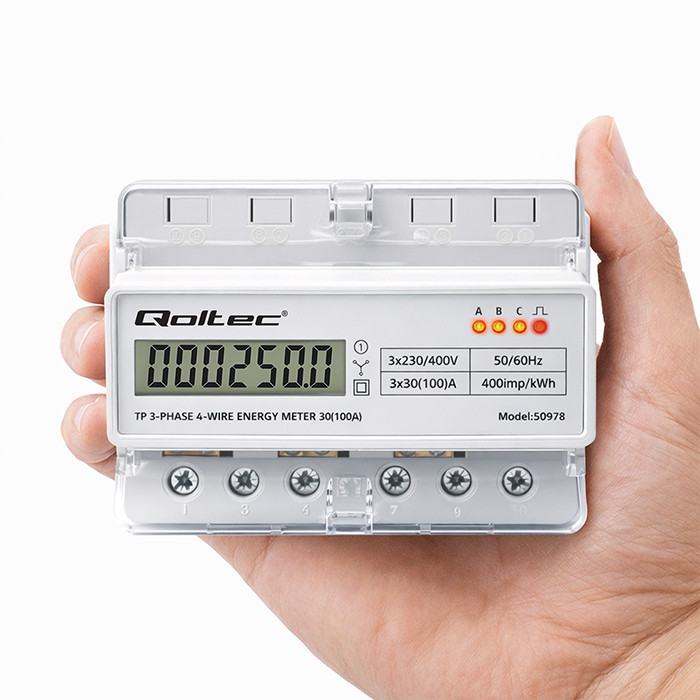

The Qoltec electricity consumption meter is not only a precise tool for monitoring energy consumption, but also a compact and easy-to-use device. Thanks to its small size, installation is extremely simple and quick, making it ideal for both domestic and larger industrial applications. The LCD display provides clear and accurate data on energy consumption, allowing for effective energy management and identification of potential savings. The meter can be used in both domestic and industrial installations.

Product features:
- Three-phase, four-wire,
- Unidirectional,

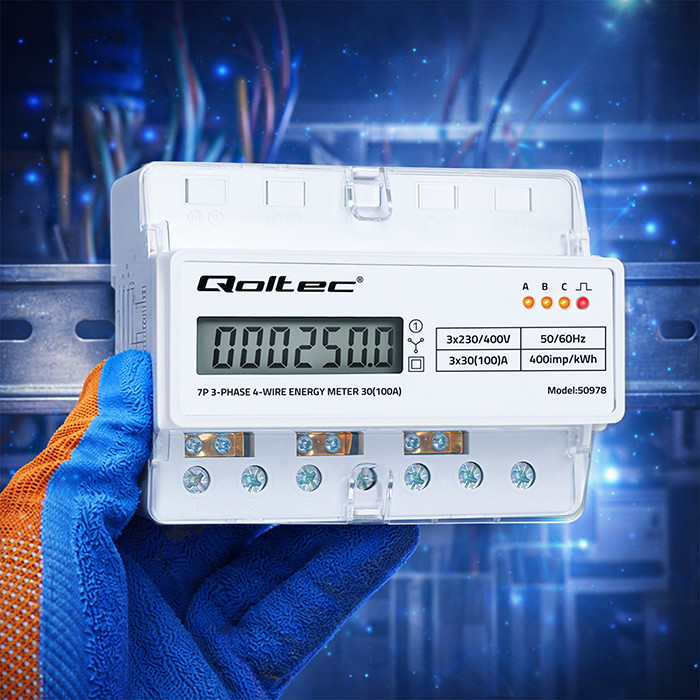

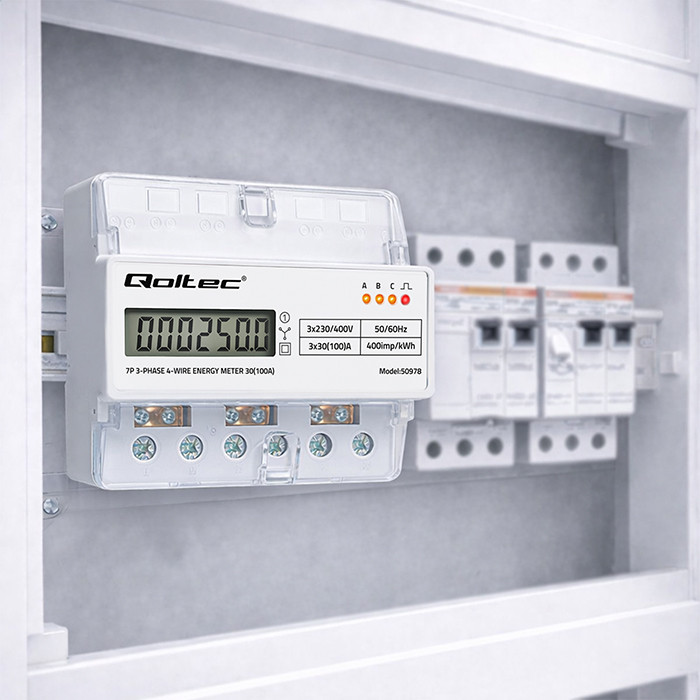

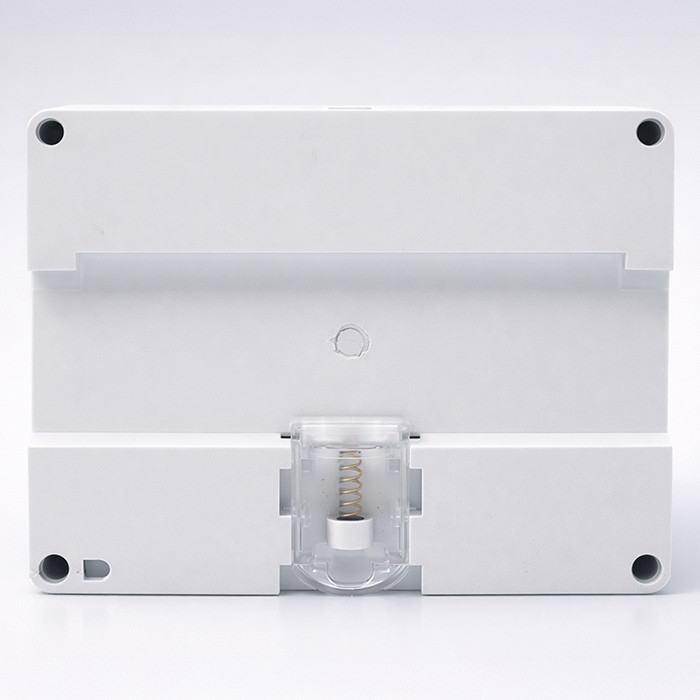

- Standard installation of the device in a switchboard on a 35 mm DIN rail,
- Energy consumption measurement displayed in kWh,

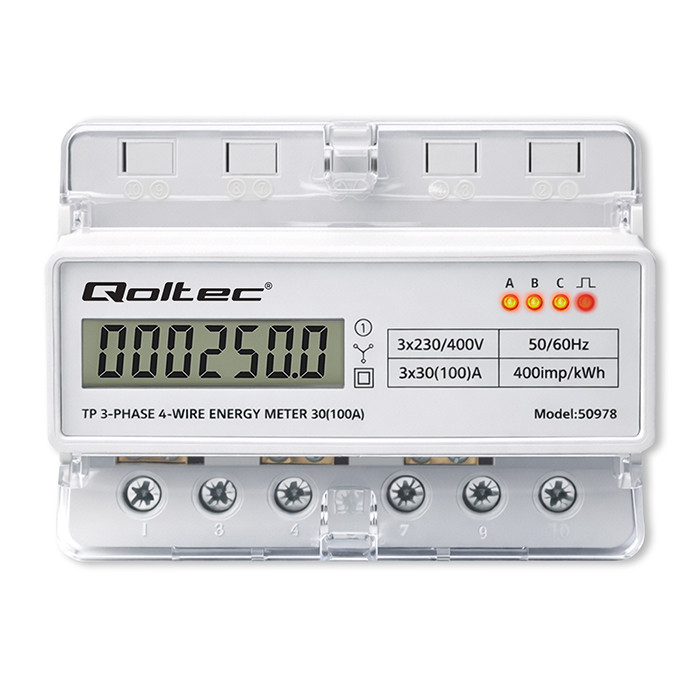

- Features a 6+1 LCD display for monitoring measurements,
- Compliant with IEC 62053-21 and DIN EN50022 standards,
- Base current is 10A, maximum current 100A,
- Accuracy class 1.0.

The product is covered by a 24-month warranty.
