Archival product Qoltec Screen LED 15.6"

Qoltec Screen LED 15.6"

Product code: 7137.LED_15.6_G_SLIM

Model / part number: LP156WH3 (TL)(B1)
Backlight technology: LED
Screen size: 15.6"
Connectors: 40 pin
Surface: Glossy

NOTE! Compare photo to own part for exchange

Screen LED

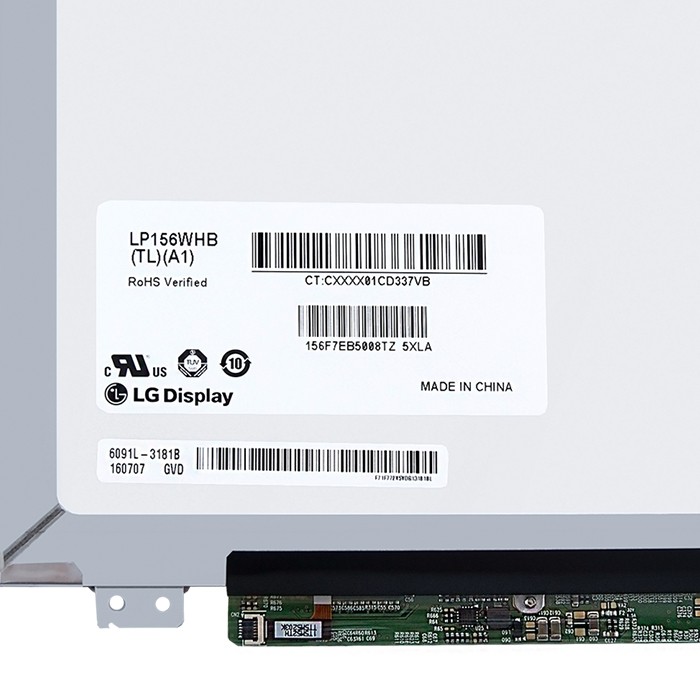

The notebook screen is the main part of the laptop allows you to work. In order to fit an appropriate model should be verified compatibility list contained in the product description on the page qoltec.pl. If in doubt, please check number of the original matrix located on the backside - for example: LP156WH3 (TL)(B1), where LTN is the designation of the manufacturer, 156 is the number of inches (15.6 "), the remaining characters to define a series of laptops that are tailored matrix. Changing even one character can attest to the difference in the location of the mounting clamps or tape, and other parameters. In choosing the correct model will help you the configurator located on our website or at http://notebookspareparts.pl

Technical data
Producer
Qoltec
Model / part number
LP156WH3 (TL)(B1)
Backlight
LED
Designed for brands
Acer, Asus, IBM/Lenovo, Gateway
Quality assessment
GRADE A+
Screen size
15.6"
Resolution
1366*768
Connector
40 pin
Configurator
notebookspareparts.pl
Replaces
Samsung: LTN156AT35-W01, LTN156AT35-T01, LTN156AT35-P01, LTN156AT34-W01, LTN156AT34-D01, LTN156AT30-W01, LTN156AT30-T01, LTN156AT30-L01, LTN156AT30-H01, LTN156AT30-D01, LTN156AT30-B01, LTN156AT30-701, LTN156AT30-601, LTN156AT30-501, LTN156AT30-401, LTN156AT30-301, LTN156AT20-W01, LTN156AT20-S01, LTN156AT20-P02, LTN156AT20-P01, LTN156AT20-N01, LTN156AT20-L01, LTN156AT20-H01, LTN156AT20-701, LTN156AT29-W01, LTN156AT29-L01, LTN156AT29-H01, LTN156AT29-B01, LTN156AT29-401, LTN156AT11-A01, LTN156AT11-001, LTN156AT07-N01, LTN156AT07-A01, LTN156AT06-A01, LTN156AT06-001
LG: LP156WHU(TL)(B1), LP156WHU-TLB1, LP156WHU(TL)(A1), LP156WHU-TLA1, LP156WHU(TL)(AA), LP156WHU-TLAA, LP156WHB(TL)(D1), LP156WHU-TLD1, LP156WHB(TL)(C1), LP156WHU-TLC1, LP156WHB(TL)(B1), LP156WHU-TLB1, LP156WHB(TL)(A1), LP156WHU-TLA1, LP156WH3(TL)(TB), LP156WHU-TLTB, LP156WH3(TL)(TA), LP156WHU-TLTA, LP156WH3(TL)(T2), LP156WHU-TLT2, LP156WH3(TL)(T1), LP156WHU-TLT1, LP156WH3(TL)(SA), LP156WHU-TLSA, LP156WH3(TL)(S3), LP156WHU-TLS3, LP156WH3(TL)(S2), LP156WHU-TLS2, LP156WH3(TL)(S1), LP156WHU-TLS1, LP156WH3(TL)(Q1), LP156WHU-TLAQ, LP156WH3(TL)(L2), LP156WHU-TLL2, LP156WH3(TL)(L1), LP156WHU-TLL1, LP156WH3(TL)(L3), LP156WHU-TLL3, LP156WH3(TL)(M1), LP156WHU-TLM1, LP156WH3(TL)(F1), LP156WHU-TLF1, LP156WH3(TL)(E1), LP156WHU-TLE1, LP156WH3(TL)(D1), LP156WHU-TLD1, LP156WH3(TL)(C2), LP156WHU-TLC2, LP156WH3(TL)(C1), LP156WHU-TLC1, LP156WH3(TL)(BD), LP156WHU-TLBD, LP156WH3(TL)(BC), LP156WHU-TLBC, LP156WH3(TL)(BA), LP156WHU-TLBA, LP156WH3(TL)(B1), LP156WHU-TLB1, LP156WH3(TL)(AC), LP156WHU-TLAC, LP156WH3(TL)(AB), LP156WHU-TLAB, LP156WH3(TL)(AA), LP156WHU-TLAA, LP156WH3(TL)(A3), LP156WHU-TLA3, LP156WH3(TL)(A2), LP156WHU-TLA2, LP156WH3(TL)(A1), LP156WHU-TLA1,
Au Optronics: B156XW03 V.4, B156XW03 V.2, B156XW03 V.1, B156XTN04.3, B156XTN04.2, B156XTN03.4, B156XTN03.2, B156XW04 V.6, B156XW04 V.5, B156XW04 V.1, B156XW04 V.0
Chimei Innolux: N156BGE-LB1, N156BGE-LA1, N156BGE-L41, N156BGE-L31, N156B6-L0D, N156O6-L0D, NT156WHM-N10
Gross weight [kg]
0.6280
Net weight [kg]
0.6180
Warranty
12 months
EAN code
5908260271374
Compatible with
Asus K56C
Asus K56CA
Asus K56CB
Asus K56CM
Asus R510C
Asus R510CA
Asus S500CA
Asus S550C
Asus S56CA
Asus S56CM
Asus S56CB
Asus V550CA
Asus X501A
Asus X501U
Asus X550LN
Asus X550LD
Asus X550VL
Asus X502C
Asus X502CA
Asus X550C
Asus X550CL
Asus X550CA
Asus X550CC
Asus U53SD
Asus U53JC
Asus U53F
Asus U53JC-B1
Asus U53JC-A1
Asus F550CC
Asus F550L
Asus F555L
Asus K555L
Asus K555LD
Acer 5745
Acer 5745Z
Acer V5-531
Acer V5-531G
Acer V5-551
Acer V5-551G
Acer V5-571
Acer V5-571G
Acer P653-M
Acer P653-MG
Acer P653-V
Acer 5820T
Acer 5820TG
Acer 5830T
Acer 5830TG
Acer 5810T
Acer 5810TZ
Acer M3-581TG
Acer 5538
Acer 5810
Acer 5534
Acer 5745G
Acer V5-555
Acer V5-573G
Dell 15 3537
Dell 15R 5521
Dell 15R 5537
Dell 15 3521
Dell 15 3531
Dell 15Z 5523
Dell 15Z 1570
Dell 1570
Dell 1569
Dell M531R
Dell 7000
Dell 7537
Dell E5540
Dell 3540
Samsung NP510R5E
Lenovo E531
Lenovo G500S
Lenovo P585
Lenovo U510
Lenovo Y560
Lenovo G505S
Lenovo P500
Lenovo P580
Lenovo S500
Lenovo Z500
Lenovo 15 3521
Lenovo S510P
Lenovo U550
Toshiba C55DT
Toshiba C55T
Toshiba L50
Toshiba L50-A
Toshiba S50
HP Compaq 250 G3
HP Compaq 255 G3
HP Compaq 450 G1
HP Compaq M6-1102SA
HP Compaq M6-1205DX
HP Compaq 6-1040EW
HP Compaq 6-1130SW
Sony Vaio SVF1521A6EB
Sony Vaio SVF1521C6EW
Sony Vaio SVF1521D6EW
Sony Vaio SVF1521E6EB
Sony Vaio SVF1521E6EW
Sony Vaio SVF1521F2EW
Sony Vaio SVF1521G6EW
Sony Vaio SVF1521H4E
Sony Vaio SVF1521Q1EB
Sony Vaio SVF1521R1EW
Sony Vaio SVE1511A1EW
Sony Vaio SVE1511B1EB
Sony Vaio SVE1511G1EB
Sony Vaio SVE1511G1ESI
Sony Vaio SVE1511HFXW
Sony Vaio SVE1511S1EW
Sony Vaio SVE1511S1E
Sony Vaio SVE1511V1EW
Sony Vaio SVE1512E6EB
Sony Vaio SVE1512E6EW
Sony Vaio SVE1512F1RW
Sony Vaio SVE1512J6E/W
Sony Vaio SVE1512J6EB
Sony Vaio SVE1512J6ESI
Sony Vaio SVE1512M6ESI
Sony Vaio SVE1512M6EW
Sony Vaio SVE1512N1EB
Sony Vaio SVE1512P1E/B
Sony Vaio SVE1513F1EB
Sony Vaio SVE1513G1EB
Sony Vaio SVE1513F1EW
Sony Vaio SVE1513H4E
Sony Vaio SVE1513R1EB
Sony Vaio SVE151C11M
Sony Vaio SVE151D11M
Sony Vaio SVE151E11M
Sony Vaio SVE151G13M
Sony Vaio SVE151G17M
Sony Vaio SVE151J11M
Sony Vaio SVE151J13M
Sony Vaio SVF1521C6EW
Sony Vaio SVF1521F7EW
Sony Vaio SVF1521F6EB
Sony Vaio SVF152A29H
Sony Vaio SVF152A29M
Sony Vaio SVF152C29M
Sony Vaio SVE15115FXS
Sony Vaio SVS152A29M
