Archival product Qoltec Screen LED 15.6"

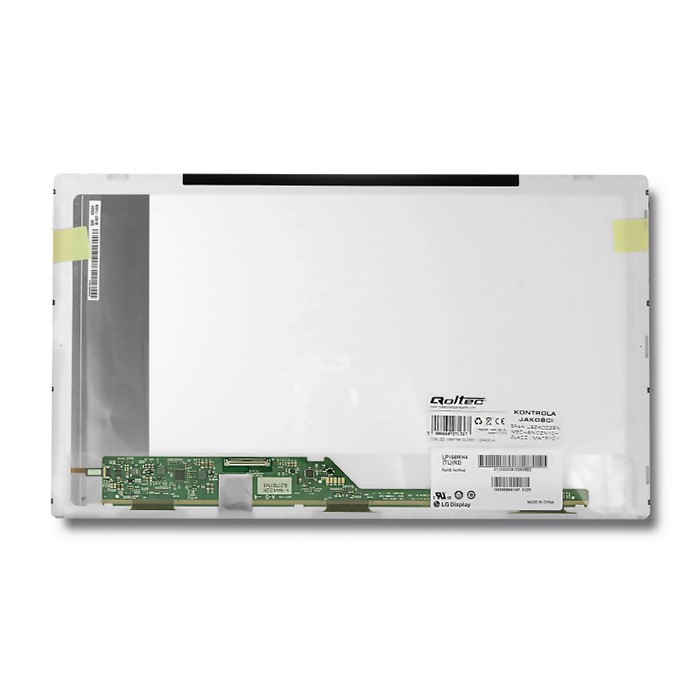

Qoltec Screen LED 15.6"

Product code: 7136.LED_15.6_G

Model / part number: LP156WH4 (TL)(A1)
Backlight technology: LED
Screen size: 15.6"
Connectors: 40 pin
Surface: Glossy

NOTE! Compare photo to own part for exchange

Screen LED

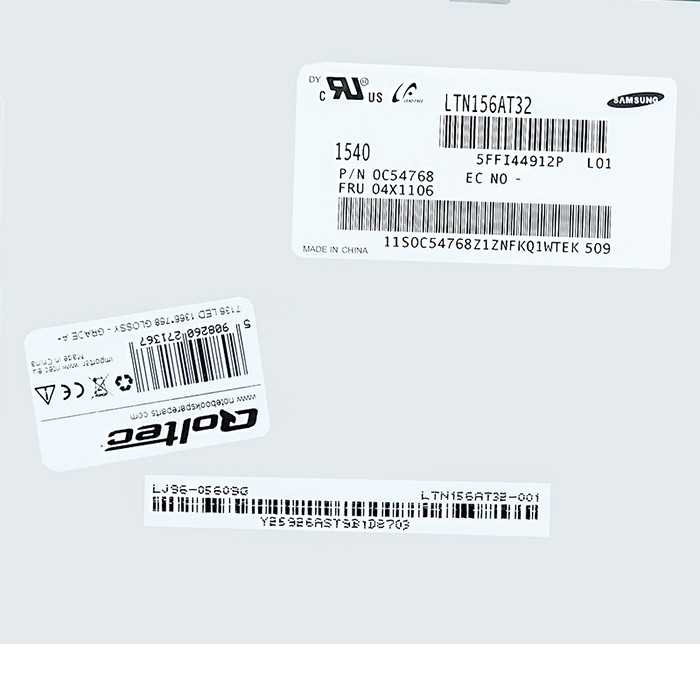

The notebook screen is the main part of the laptop allows you to work. In order to fit an appropriate model should be verified compatibility list contained in the product description on the page qoltec.pl. If in doubt, please check a number of the original matrix located on the backside - for example: LP156WH4 (TL)(A1), where LTN is the designation of the manufacturer, 156 is the number of inches (15.6 "), the remaining characters to define a series of laptops that are tailored matrix. Changing even one character can attest to the difference in the location of the mounting clamps or tape, and other parameters. In choosing the correct model will help you the configurator located on our website or at http://notebookspareparts.pl

Technical data
Producer
Qoltec
Model / part number
LP156WH4 (TL)(A1)
Backlight
LED
Designed for brands
Acer, Asus, Dell, HP/Compaq, Samsung, Toshiba, IBM/Lenovo, Packard-Bell, Sony
Quality assessment
GRADE A+
Screen size
15.6"
Resolution
1366*768
Connector
40 pin
Configurator
notebookspareparts.pl
Replaces
Au Optronics: B156XTN02.0, B156XTN02.1 H/W:2A, B156XTN02.1 H/W:3A, B156XTN02.2, B156XTN02.4 H/W:0A, B156XW02 V.0 H/W:2A, B156XW02 V.0 H/W:AA, B156XW02 V.1 H/W:0B, B156XW02 V.1 H/W:DA, B156XW02 V.2 H/W:0B, B156XW02 V.2 H/W:4A, B156XW02 V.2 H/W:5A, B156XW02 V.3, B156XW02 V.6 H/W:0A
BOEHyndis: HT156WXB-100
CHI MEI: N156B6-L03, N156B6-L04 C1, N156B6-L06 C1, N156B6-L07, N156B6-L0A A1, N156B6-L0A C1, N156B6-L0A C2, N156B6-L0A C3, N156B6-L0B C1, N156B6-L0B C2, N156B6-L0B C3, N156BGE-L11 C1, N156BGE-L11 C2, N156BGE-L21 C1, N156BGE-L21 C2
Chunghwa: CLAA156WA11A, CLAA156WB11A
Hyundai: HB156WX1-100, HB156WX1-200
Innolux: BT156GW01 V.1, BT156GW01 V.3, BT156GW01 V.4, BT156GW01 V.6, BT156GW02 V.0
LG Display: LP156WH2-TLA1, LP156WH2-TLAA, LP156WH2-TLAB, LP156WH2-TLAC, LP156WH2-TLBA, LP156WH2-TLBB, LP156WH2-TLC1, LP156WH2-TLC2, LP156WH2-TLD1, LP156WH2-TLD2, LP156WH2-TLD3, LP156WH2-TLE1, LP156WH2-TLEA, LP156WH2-TLF1, LP156WH2-TLFA, LP156WH2-TLQ1, LP156WH2-TLQ2, LP156WH2-TLQA, LP156WH2-TLQB, LP156WH2-TLR1, LP156WH2-TLR2, LP156WH2-TLRA, LP156WH2-TLRB, LP156WH4-TLA1, LP156WH4-TLB1, LP156WH4-TLC1, LP156WH4-TLC2, LP156WH4-TLD1, LP156WH4-TLD2, LP156WH4-TLN1, LP156WH4-TLP1, LP156WH4-TLQ1, LP156WH4-TLQ2, LP156WH4-TLR1, LP156WH4-TLRB
Samsung: LTN156AT02-A02, LTN156AT02-A04, LTN156AT02-B04, LTN156AT02-C07, LTN156AT02-C10, LTN156AT02-D01, LTN156AT02-D03, LTN156AT02-D04, LTN156AT02-D09, LTN156AT02-L01, LTN156AT02-P01, LTN156AT02-P06, LTN156AT02-P08, LTN156AT02-P09, LTN156AT02-W01, LTN156AT03-001, LTN156AT03-H01, LTN156AT03-L01, LTN156AT05, LTN156AT05-001, LTN156AT05-301, LTN156AT05-701, LTN156AT05-F01, LTN156AT05-H01, LTN156AT05-H07, LTN156AT05-J01, LTN156AT05-S01, LTN156AT05-T01, LTN156AT05-U05, LTN156AT05-U09, LTN156AT05-W01, LTN156AT05-Y02, LTN156AT09-B02, LTN156AT09-H02, LTN156AT09-H04, LTN156AT10-503, LTN156AT13-K01, LTN156AT15, LTN156AT15-C01, LTN156AT15-C04, LTN156AT16-K01, LTN156AT16-L01, LTN156AT17-102, LTN156AT17-103, LTN156AT17-B01, LTN156AT17-D01, LTN156AT17-D02, LTN156AT23-C01, LTN156AT23-C02, LTN156AT23-W01, LTN156AT24-401, LTN156AT24-801, LTN156AT24-802, LTN156AT24-803, LTN156AT24-B01, LTN156AT24-C01, LTN156AT24-C02, LTN156AT24-H02, LTN156AT24-L01, LTN156AT24-P01, LTN156AT24-P02, LTN156AT24-T01, LTN156AT24-W01, LTN156AT27-302, LTN156AT27-B01, LTN156AT27-H02, LTN156AT27-H04, LTN156AT27-H07, LTN156AT27-W01
Gross weight [kg]
0.6280
Net weight [kg]
0.6180
Warranty
12 months
EAN code
5908260271367
Compatible with
Acer Aspire 5235
Acer Aspire 5236
Acer Aspire 5340
Acer Aspire 5536
Acer Aspire 5536G
Acer Aspire 5635
Acer Aspire 5635Z
Acer Aspire 5635ZG
Acer Aspire 5738G
Acer Aspire 5738T
Acer Aspire 5738Z
Acer Aspire 5739G
Acer Aspire 5739
Acer Aspire 5740
Acer Aspire 5741G
Acer Aspire 5740D
Acer Aspire 5741
Acer Aspire 5935
Acer Aspire 5940G
Acer Aspire 5942
Acer Aspire 5942G
Acer Extensa 5235
Acer Extensa 5635
Acer Extensa 5635ZG
Acer Extensa 5635G
Acer Extensa 5635Z
Asus K50AB
Asus K50C
Asus K50IJ
Asus K50IN
Asus UL50A
Asus L50AG
Asus L50VG
Asus F52Q
Asus G51VX
Asus K51AC
Asus K50C
Asus U50VG
Asus N51VF
Asus N51TP
Asus N51VF
Asus N51VG
Asus X5DAB
Asus X5DAD
Asus X5DIJ
Asus L50AG
Asus L50VG
Asus G51VX
Asus U50VG
Asus X52
Asus X52N
Asus X5DAB
Asus X5DAB
Asus X5DAD
Asus X5DIJ
Asus K50 seria
Asus K50AB-1A
Asus K50AD-1A
Asus K50AF-1A
Asus K50C-1A
Asus K50C-SX002
Asus K50ID-1A
Asus K50IE-1A
Asus K50IJ-1A
Asus K50IJ-1E
Asus K50IJ-2B
Asus K50IJ-2C
Asus K50IL-1A
Asus K50IL-1E
Asus K50IN-1A
Asus K50IP-1A
Asus Pro-K50AB-1A
Asus Pro-K50AD-1A
Asus Pro-K50AF-1A
Asus Pro-K50C-1A
Asus Pro-K50ID-1A
Asus Pro-K50IE-1A
Asus Pro-K50IJ-1A
Asus Pro-K50IN-1A
Asus Pro-K50IP-1A
Asus Retail-K50AB-1A
Asus Retail-K50AD-1A
Asus Retail-K50AF-1A
Asus Retail-K50C-1A
Asus Retail-K50C-1B
Asus Retail-K50ID-1A
Asus Retail-K50ID-1C
Asus Retail-K50IE-1A
Asus Retail-K50IE-1C
Asus Retail-K50IJ-1A
Asus Retail-K50IN-1A
Asus Retail-K50IP-1A
Asus K51 seria
Asus K51AC-1A
Asus K51AE-1A
Asus Pro-K51AC-1A
Asus Pro-K51AE-1A
Asus Retail-K51AC-1A
Asus Retail-K51AE-1A
Asus K52 seria
Asus K52DE-1A
Asus K52DE-2C
Asus K52DR-1A
Asus K52DR-1D
Asus K52DR-2C
Asus K52DR-1A
Asus K52DY-1A
Asus K52DY-1C
Asus K52F-1A
Asus K52F-1C
Asus K52F-1D
Asus K52F-2B
Asus K52F-2C
Asus K52F-2F
Asus K52F-2GV
Asus K52JB-1A
Asus K52JC-1A
Asus K52JC-2C
Asus K52JC-2F
Asus K52JE-1A
Asus K52JE-2C
Asus K52JK-1A
Asus K52JR-1A
Asus K52JT-1A
Asus K52JT-1C
Asus K52JT-SX505V
Asus K52JU-1C
Asus K52JV-1A
Asus K52JV-1C
Asus K52JV-2F
Asus K52N-1A
Asus K52N-1C
Asus K52N-1D
Asus K52N-2C
Asus K52N-2F
Asus K52N-3A
Asus Pro-K52F-1A
Asus Pro-K52JB-2C
Asus Pro-K52JK-1AV
Asus Retail-K52DE-1A
Asus Retail-K52DR-1A
Asus Retail-K52F-1A
Asus Retail-K52F-2F
Asus Retail-K52JB-1A
Asus Retail-K52JC-1A
Asus Retail-K52JK-1A
Asus Retail-K52JR-1A
Asus Retail-K52N-1A
Asus K53 seria
Asus K53BY-1A
Asus K53E-1A
Asus K53E-3C
Asus K53E-3D
Asus K53E-3E
Asus K53E-3F
Asus K53E-3H
Asus K53E-3I
Asus K53E-3J
Asus K53SJ-1A
Asus K53SJ-3C
Asus K53SJ-3D
Asus K53SJ-3E
Asus K53SJ-3F
Asus K53SJ-3H
Asus K53SJ-3I
Asus K53SJ-3J
Asus K53SV-1A
Asus K53SV-3C
Asus K53SV-3D
Asus K53U-1A
Asus N51 seria
Asus N51A-1A
Asus N51TE-1A
Asus N51TE-1B
Asus N51TP-1A
Asus N51TP-1B
Asus N51VF-1A
Asus N51VG-1A
Asus N51VN-1A
Asus N51VN-1B
Asus Pro-N51VF-1A
Asus Pro-N51VG-1A
Asus Retail-N51TP-1A
Asus Retail-N51TP-1B
Asus Retail-N51VF-1A
Asus Retail-N51VG-1A
Asus Retail-N51VN-1A
Asus N53 seria
Asus N53DA-1C
Asus N53JF-1A
Asus N53JF-1C
Asus N53JG-1A
Asus N53JG-1C
Asus N53JL-1A
Asus N53JN-1A
Asus N53JN-2A
Asus N53JQ-1C
Asus N53JQ-2A
Asus N53SV-1A
Asus N53SV-1C
Asus N53SV-2A
Asus Pro-N53JF-1A
Asus Pro-N53JG-1A
Asus Pro-N53JG-1C
Asus Pro-N53JN-1A
Asus Retail-N53JF-1A
Asus Retail-N53JG-1A
Asus Retail-N53JG-1C
Asus Retail-N53JN-1A
Dell Studio 1555
Dell Studio 1557
Dell Studio 1558
Dell Studio 1545
Dell Inspiron R51
Dell Inspiron 1545
Dell Inspiron 156
Dell Inspiron 1546
Dell Inspiron R51
Dell Inspiron 15R
Dell Inspiron N5010
Dell Inspiron N5030
Dell Inspiron M5030
Dell Inspiron N5040
Dell Inspiron M501R (M5010)
Dell XPS 15
Dell L501X
Dell L502X
Dell Latitude E5520
Fujitsu Siemens Amilo Li3710 CM
Fujitsu Siemens Amilo Li3710
Fujitsu Siemens Amilo Li3710
HP Pavilion seria DV6
HP Pavilion seria DV6Z
HP Pavilion seria G62
HP Compaq Presario seria CQ60
HP Compaq Presario seria CQ61
HP Compaq G60 series
HP ProBook 4510s
HP Compaq 610
HP Compaq 615
HP Compaq 625
HP Compaq 425
HP Pavilion DV6Z-2000
HP Pavilion DV6-3158CA
HP Pavilion DV6-6008eg
HP Pavilion DV6-3030ew
HP Pavilion DV6-6160ew
HP Pavilion DV6-2005SW
HP Pavilion 1320EG
HP Pavilion G6-1028sg
HP Pavilion G62
HP Pavilion G62-130EG
HP Pavilion G62-A10SW
HP Pavilion G62-A40EW
HP Pavilion G62-A05SW
HP Pavilion G60 series
HP Pavilion G60
HP Pavilion G60T-200
HP Pavilion G60T-500)
HP Presario seria CQ61
HP Presario seria CQ61
HP Compaq 610
HP Compaq 615
HP Compaq Presario seria CQ56
Lenovo IdeaPad G550
Lenovo IdeaPad G550L
Lenovo IdeaPad G555
Lenovo IdeaPad Y550
Lenovo IdeaPad G560
Lenovo IdeaPad G560E
Lenovo IdeaPad G570/model 4334/
Lenovo IdeaPad G650
MSI CX 500
Packard Bell Easy Note TJ61
Packard Bell Easy Note TJ62
Packard Bell Easy Note TJ65
Packard Bell Easy Note TJ66
Packard Bell Easy Note TJ75
Packard Bell Easy Note TJ76
Packard Bell Easy Note TJ77
Packard Bell Easy Note TJ78
Packard Bell Easy Note TM86
Packard Bell Easy Note TR82
Packard Bell Easy Note TR85
Packard Bell Easy Note TR86
Packard Bell Easy Note TM87
Packard Bell Easy Note TM89
Samsung R519
Samsung R520
Samsung R522
Samsung R530
Samsung R540
Samsung R580
Samsung RV 580
Samsung X520
Sony Vaio VPC-EB4S1E
Sony Vaio VPC-EB42FM
Sony Vaio VPC-EH1M1E
Sony Vaio Vaio PCG-71811M
Toshiba Satellite C650D
Toshiba Satellite L500D
Toshiba Satellite L500
Toshiba Satellite S500
Toshiba Satellite Pro S500
Toshiba Satellite L450
Toshiba Satellite L450D
Toshiba Satellite L455
Toshiba Satellite L650
Toshiba Satellite Pro L650
Toshiba Satellite C650
Toshiba Satellite L655,
Toshiba Satellite L655D
Toshiba Satellite L505
Toshiba Qosmio F60
Toshiba Qosmio 10X
Toshiba Qosmio 10L
Toshiba Tecra A11
Toshiba Tecra S11
