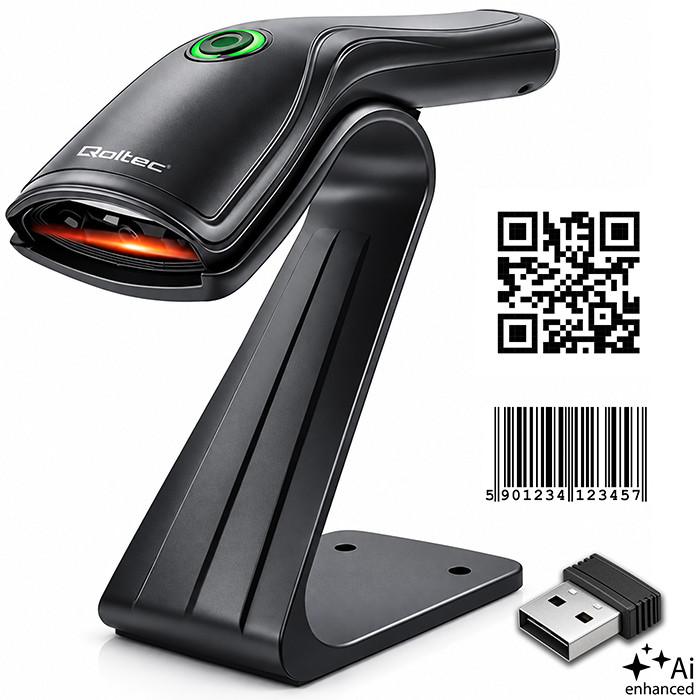

Qoltec Precise Wireless Barcode Scanner 1D 2D + Scanner Stand  | QR | EAN | USB

Qoltec Precise Wireless Barcode Scanner 1D 2D + Scanner Stand | QR | EAN | USB

Product code: 52752

Bezprzewodowy czytnik kodów kreskowych marki Qoltec do skanowania kodów 1D i 2D pozwoli Ci cieszyć się niezawodnością i komfortem pracy. Jego precyzja, szybkość i łatwość obsługi i zgodność z różnymi systemami czynią go nieocenionym wsparciem w codziennej pracy. Nasze urządzenie gwarantuje:
- odczyt kodów 1D i 2D na ekranie elektronicznym,
odporność na upadki do 1.5m,
szybkość skanowania 100 skanów na sekundę,
skanowanie pod różnymi kątami.

Skontaktuj się z nami, a specjalnie dla ciebie stworzymy indywidualny kod kreskowy według Twoich wytycznych, bez żadnych dodatkowych opłat.

Easy to scan - high quality with functionality

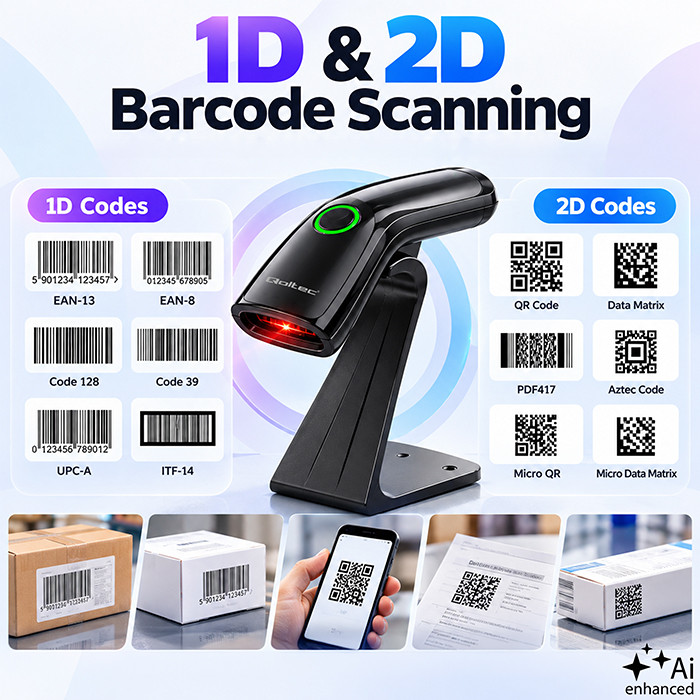

Fast and accurate scanning of 1D and 2D barcodes

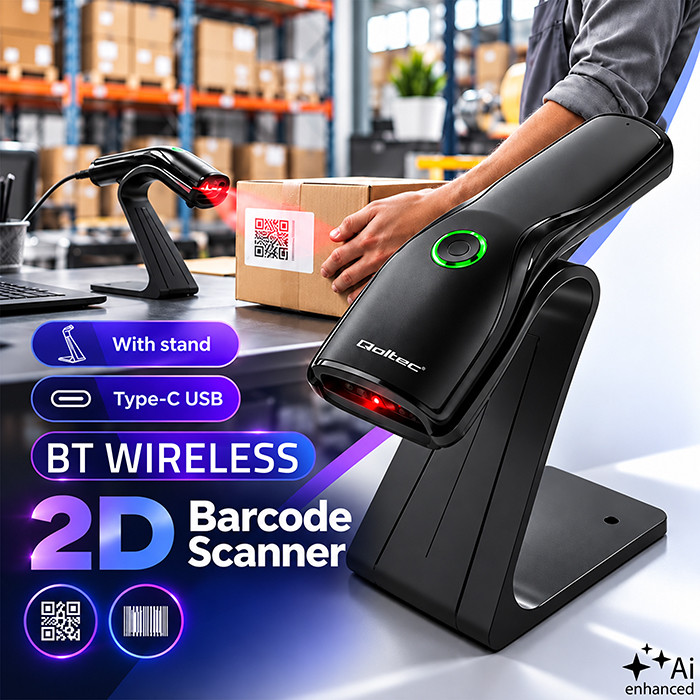

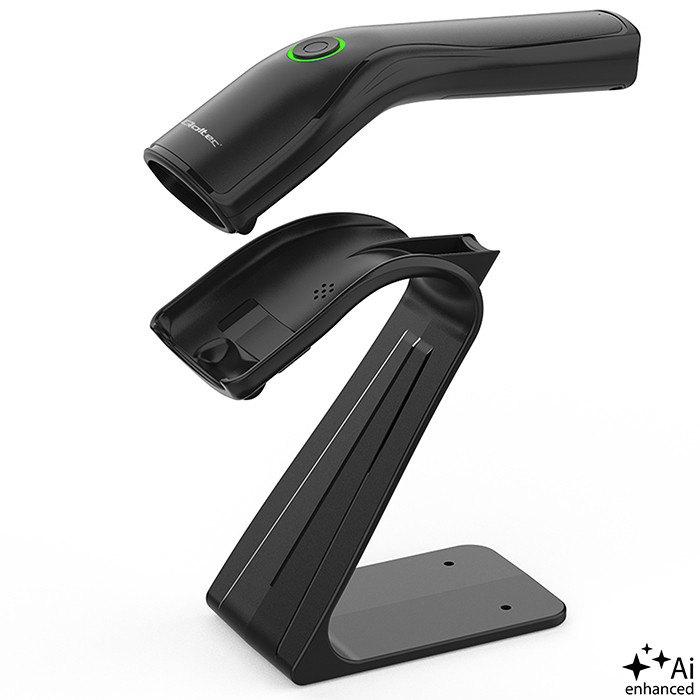

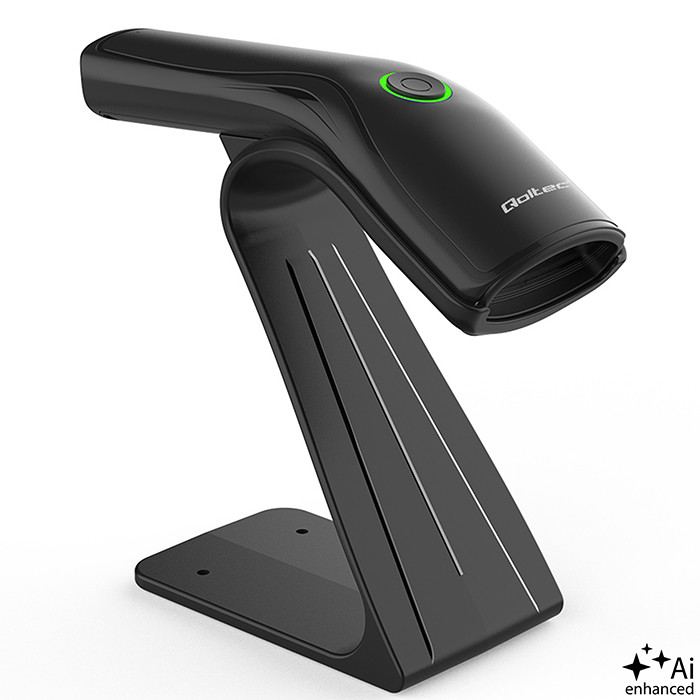

The Qoltec barcode scanner uses state-of-the-art CMOS Imager technology, which enables efficient and precise reading of 1D and 2D barcodes. The 640 × 480 px resolution sensor allows for convenient scanning of barcodes used in retail, logistics, services and administration. The scanner is ideal for use in shops, warehouses, logistics centres, pharmacies, offices, libraries, government offices and customer service points. Thanks to the included stand, it can be used both as a traditional handheld scanner and as a desktop device.

Three scanning modes – choose how you want to work

The Qoltec scanner has been designed for both one-off scanning and intensive, repetitive use. There are three scanning modes available:
• Manual – scans the code when the button is pressed.
• Continuous – convenient scanning of successive codes without having to press the button each time.

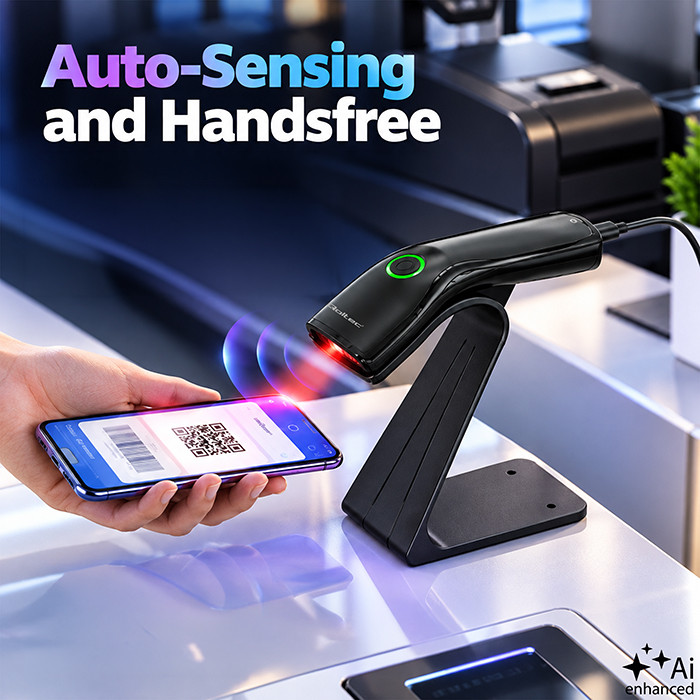

• Automatic – the scanner automatically detects a code within its reading range.

Precision reading of 1D 2D codes

Scanning speed of 100 scans per second, ergonomic design.

The device guarantees:
• reading of 1D and 2D codes,
• CMOS Imager scanning technology,
• high-performance operation at a speed of 100 scans per second,
• code scanning at various angles: 360° rotation, 42° horizontally, 37° vertically,
• from a distance of 1–200 cm,
• resistance to drops from heights of up to 1.5 m,
• ergonomic design – lightweight and comfortable to use
• assurance that the code has been read correctly thanks to an audible signal

Thoughtful construction - modern design

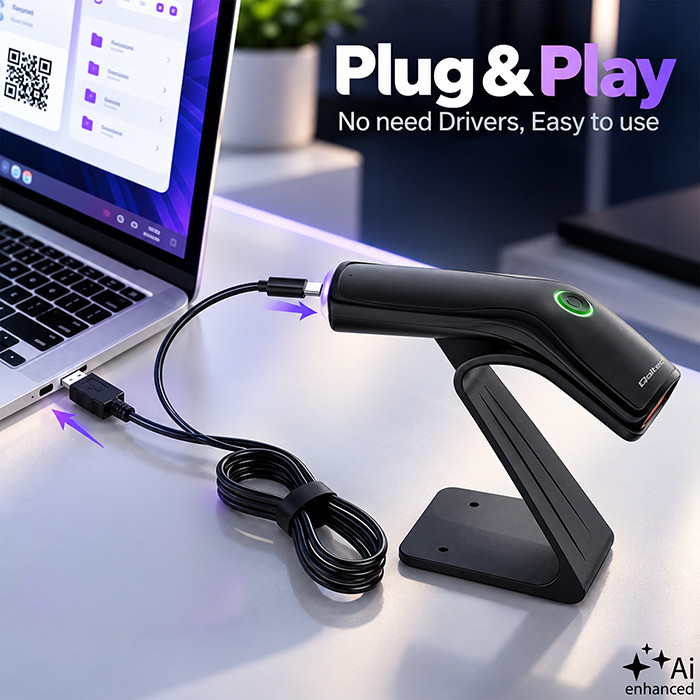

Convenient and intuitive to use – Plug & Play

The high quality of our readers is the result of thoughtful design based on the most important aspects of how these devices operate. We are fully aware of how they are used and what is expected of them, so to meet even the most demanding operating conditions, we are setting a new standard for streamlining work processes:
• Plug&Play interface – no need to install additional software,

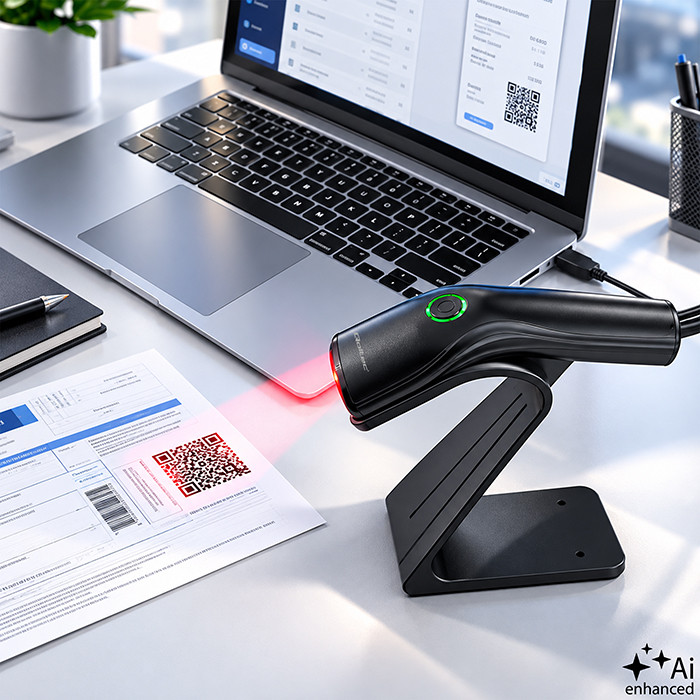

• 145 cm cable with a USB plug – allowing the device to be connected to a PC or laptop, so the reader can operate 24 hours a day,
• compatible with Windows/Mac OS, Linux and Android,
• ergonomic design – makes the reader easier to use

Confidence confirmed by a warranty

This product comes with a 24-month warranty

Do you want to be sure the product you’re buying is of high quality? Our solutions will meet your expectations. Every barcode scanner we offer comes with a 24-month warranty valid from the date of purchase.


Technical data
Producer
Qoltec
Scanner type
Wireless / Wired
Scan Type
Laser
Input voltage
DC 5V ±5%
Scanning speed
100 times/sec
Barcode Types
1D 2D
Decoding capability
1D: Code25-Interleaved , Code25-Standard, Code25-Matrix, RSS-14, Code39-Regular, Code39-FullASCII, Code93-Regular, Code93-FullASCII, Code128, Code11, UPCE0/E1, EAN/GSL/UCC-128Auto, Codabar, MSI, EAN/JAN-13, UPC-A, JAN/EAN-8 , ChinaPost 25, Plessey
2D : Data Matrix, QR, PDF417, Micro QR, Micro PDF417, Aztec, Han Xin
Scanning depth
QR 9.17 mil(7 byte):6cm - 10cm
Data Matrix 9.17mil(7 byte):7cm - 10cm
Code93 5.83mil(14 byte):7cm - 10cm
Refund code 28 byte:10cm - 15cm
WeChat Pay QR Code :9cm - 45cm
Scan mode
Manual, Continuous scanning, Self sensing mode (customized)
Scanning Angle
360° rotation | 42° horizontally | 37° vertically
Operating current
30mA (working mode); 15mA (standby mode); 70mA (peak mode)
Charging time
2.5h
Processor
32-bit ARM MCU
Battery
3.7V 2000mA lithium
Print contrast
≥30%
Interface
USB, 2.4G Bluetooth

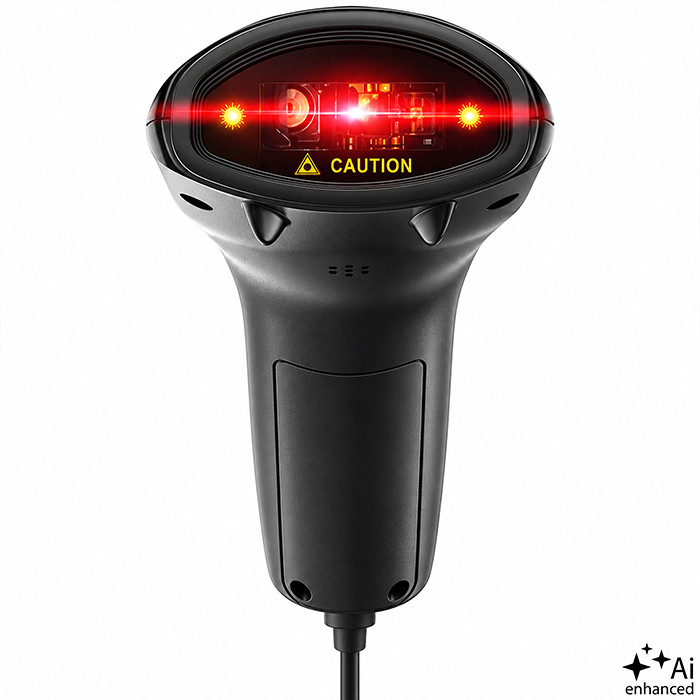

Source of light
LED (red aiming LED + white backlight LED)
Shock resistance
1.5m
Resolution
≥ 4 miles; sensor resolution: 480 × 640 px; type: CMOS
Memory
512 KB
Working time
16h
Scanning distance
1cm-200cm
Supported operating systems
Linux, Android, Windows XP, 7, 8, 10, MAC
Signalization
Audible signal + LED
Cable length
~1.45m
Language
English, German, Spanish, French, Italian (Italian 142), Czech, Turkish, Hungarian, Japanese
Usage
Logistics
Warehouses
Commerce
Libraries
Airports
Monitoring of medicines and medical supplies
Additional information
Motion tolerance – Code 128 20 cm/s
Motion tolerance – QR 25 cm/s
Virtual keyboard support
Power consumption: 0.85W (in use); 0.55W (standby); 1.05W (max)
OTHER PARAMETERS
Material
ABS + PC
Colour
Black
IP Rating
IP52
Working temperature
0˚C ~ +50˚C
Working humidity
20%-85% without condensation
Storage humidity
20%-85% without condensation

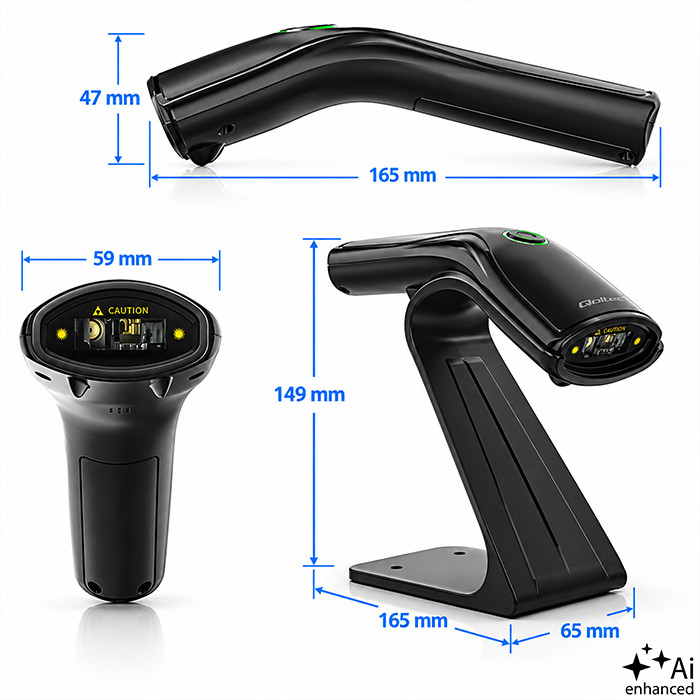

Dimensions (D/L x W x H)
165 x 59 x 47 mm (reader), 165 x 65 x 149 (stand)

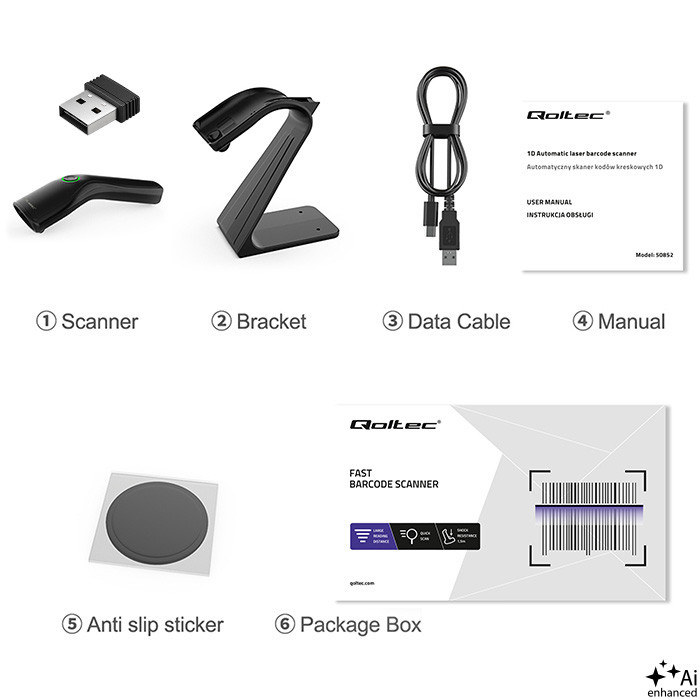

Package contents
1 x Wireless 1D/2D barcode scanner
1 x Scanner stand
1 x USB cable
1 x User manual
1 x Warranty card
Package depth / length [mm]
130
Package width [mm]
210
Package height [mm]
90
Net weight [kg]
0.204
Gross weight [kg]
0.324
Warranty
24 month
EAN code
5901878527529
