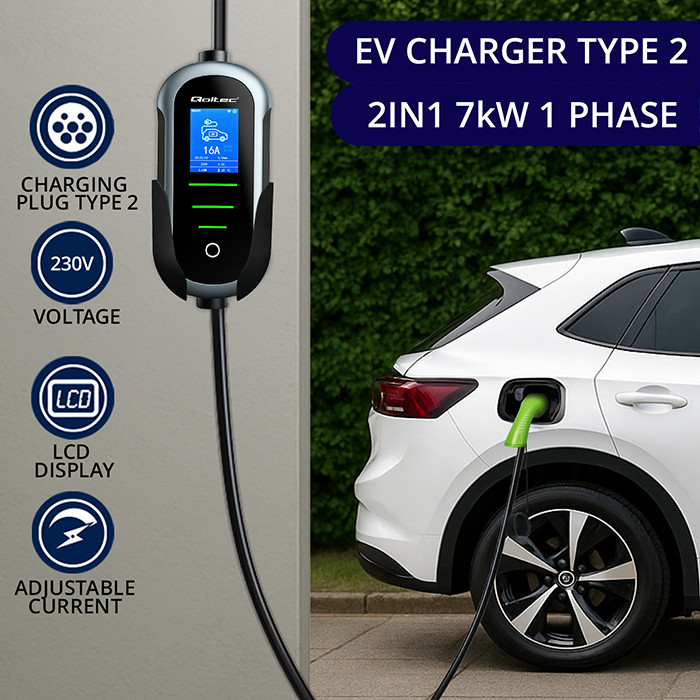

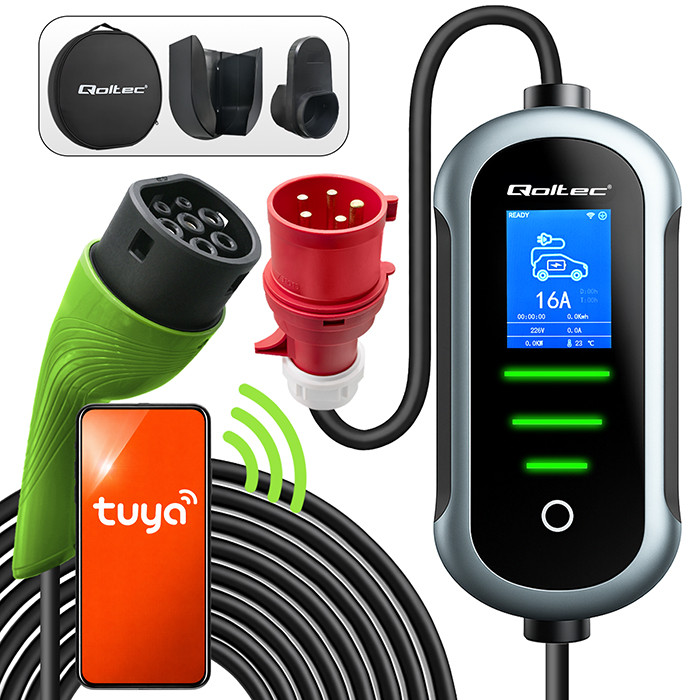

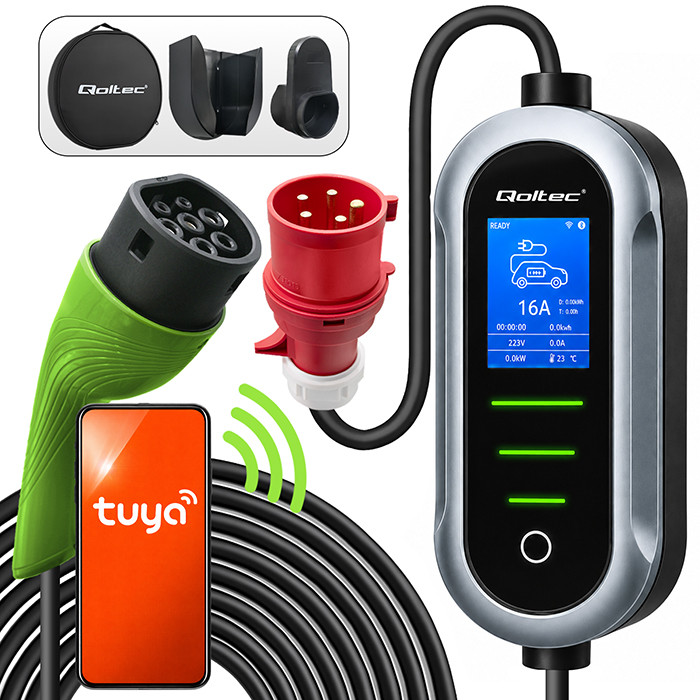

Qoltec Mobile EV Electric Car Charger with 2in1 Type 2 Adjustment | 7kW | 230V | CEE 32A | Wifi | TUYA | SMART LIFE | LCD | Portable | Wallbox | 5m

Qoltec Mobile EV Electric Car Charger with 2in1 Type 2 Adjustment | 7kW | 230V | CEE 32A | Wifi | TUYA | SMART LIFE | LCD | Portable | Wallbox | 5m

Product code: 52721

A Qoltec single-phase portable charger featuring a Type 2 connector – the European market standard – which is compatible with any Type 2 electric vehicle charging cable, and a 5-pin 32A power plug. This charger with adjustable charging current ensures convenient and safe charging of your electric car battery.
- Type 2 connector,

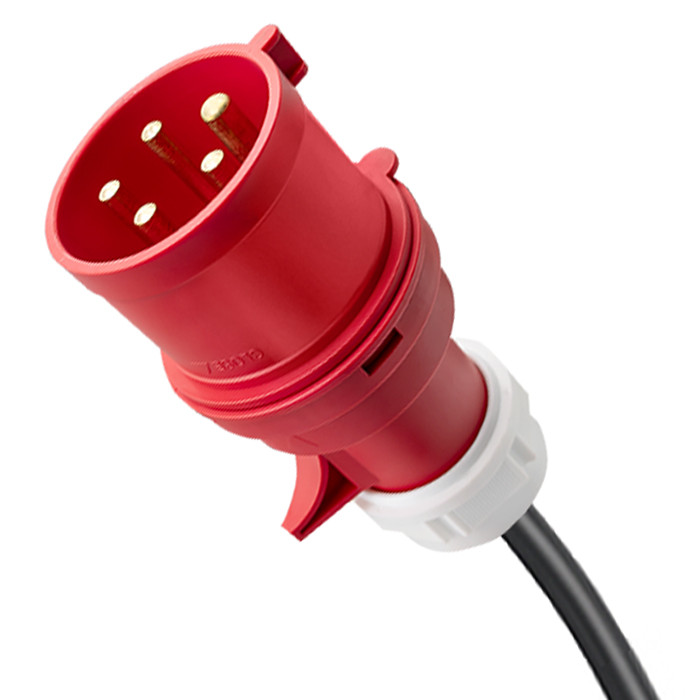

- 5-pin power plug,
- LCD display,
- Adjustable charging current,
- Delayed start function,
- 5m cable. The compact, weather-resistant design allows for convenient installation in a garage or outdoors, whilst intelligent safety features ensure stable and safe operation.

The best solution for charging electric vehicles

EV

Fast charging, universal connectivity, ideal for long journeys

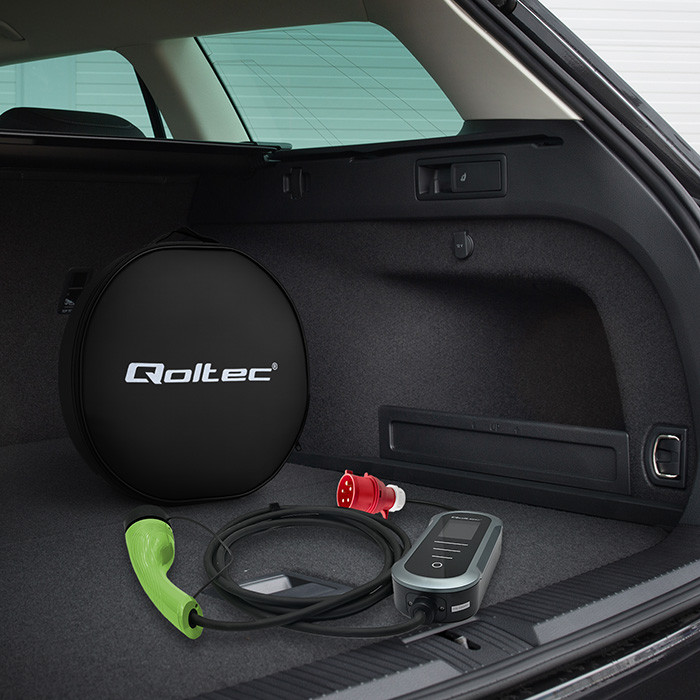

Do not let a low battery charge limit your mobility. The Qoltec mobile electric car charger is a practical and reliable solution that enables fast charging of electric cars from a CEE 32A power socket. Its compact design and solid construction make it ideal for home and travel use. All you need is access to a 230V power socket to safely and quickly charge your electric car. The charger is perfect for business trips and holidays, and thanks to the included carrying bag, you can conveniently store it in the boot

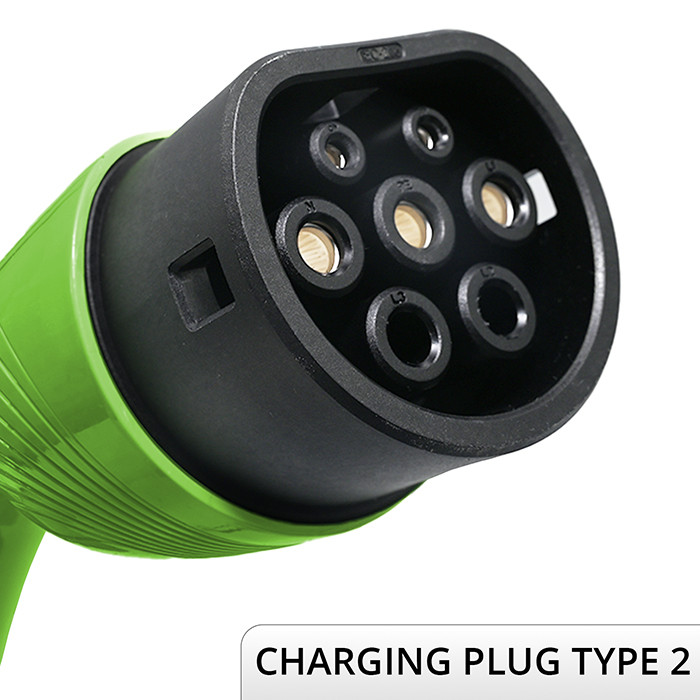

European standard type 2 connector

High charging power, 7-pin type 2 connector compliant with current regulations, four options (13A, 16A, 20A, 24A, 32A) for optimal charging

The charger has a Type 2 connector, which is currently the official European Union standard and charges electric cars equipped with the appropriate charging socket. The Type 2 connector has 7 pins, of which 3 or 5 are for charging and 2 are for communication between the station and the car.

Compatible with most electric cars sold in Europe.

The Qoltec charger supports four current modes: 13A, 16A, 20A, 24A 32A. It is worth noting that the Type 2 connector is designed for electric vehicles with a charging power greater than 3kW.

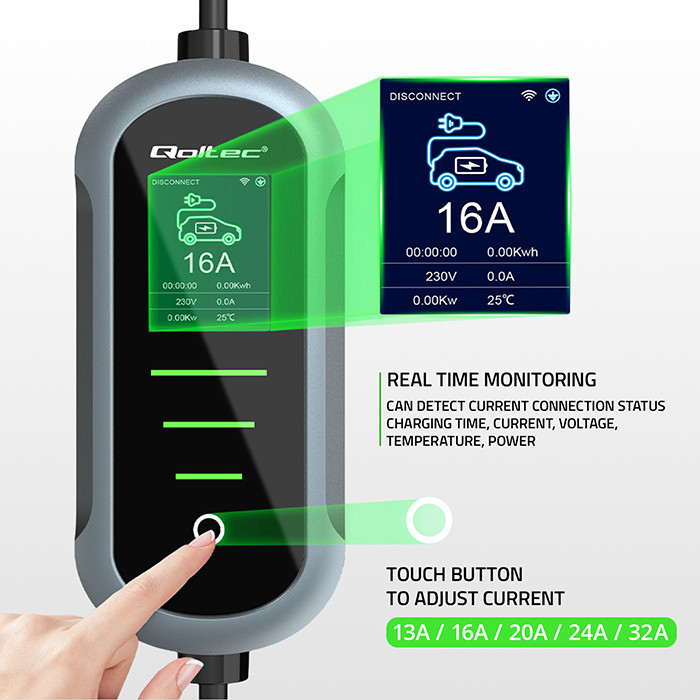

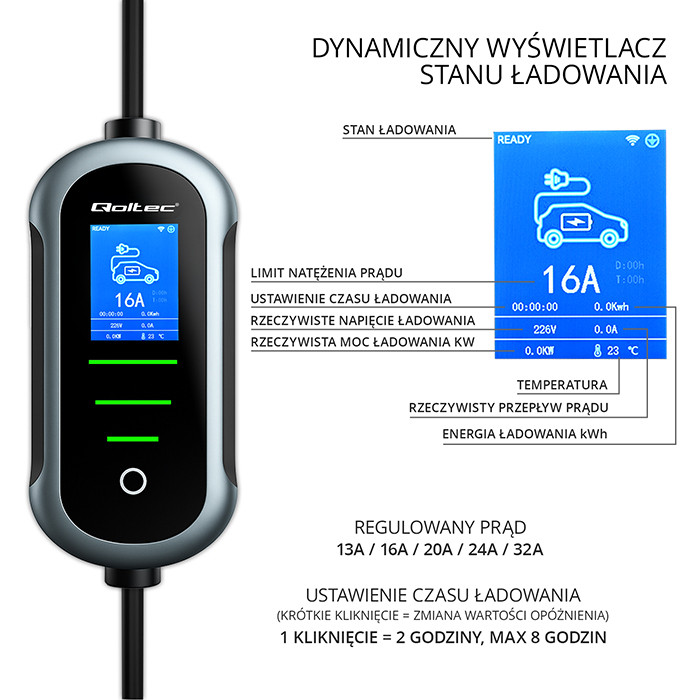

Multifunctional LCD display

Convenient 2.4" LCD display, Accurate charging time monitoring, Temperature sensor for safe charger operation, Automatic error repair

The product is equipped with a multifunctional 2.4" LCD display and LEDs indicating the charging status. The display allows you to: - set the current intensity using button A: 8A, 10A, 13A, 16A;
- check the exact charging time,
- set the charging delay using the button with the clock icon,
- monitor the operating temperature of the charger in real time thanks to the built-in temperature sensor in the plug, the charger will immediately stop working if the safe value is exceeded and automatically resume operation when the temperature returns to normal,
- monitor the progress of the charging process,

Automatic error repair

In addition, the charger has a smart chip that automatically corrects errors during charging, responding appropriately if any of the parameters exceed the norm, ensuring stable operation of the charger.

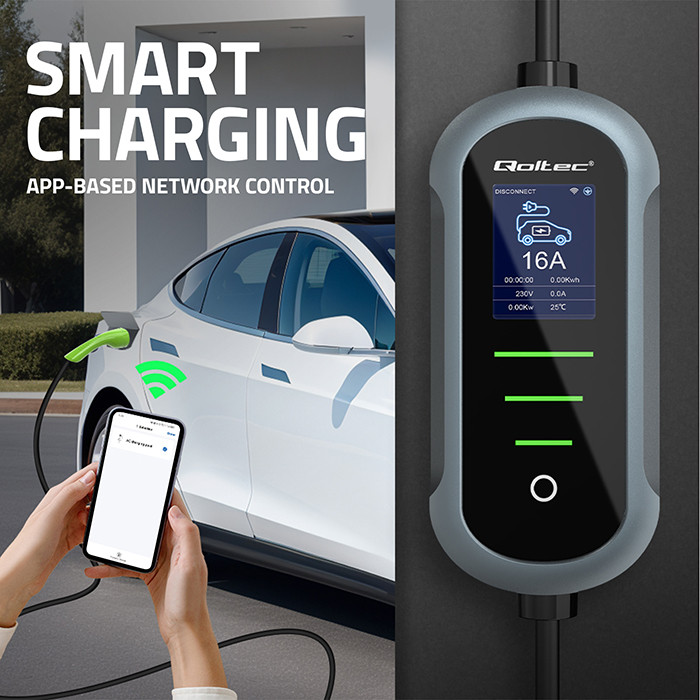

Full control over the charging process of your electric vehicle

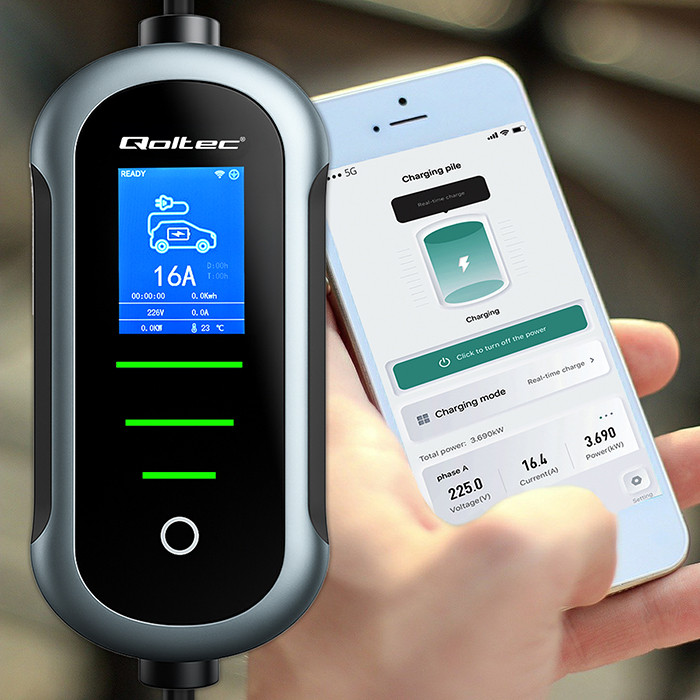

Monitor and Manage Charging Using Your Smartphone

Gain full control over charging your electric car with WiFi and a dedicated mobile app. Once you pair your phone with the charger, you can monitor the charging process in real time, check operating parameters, and remotely adjust settings such as current, time, or charging schedule. You can also use the app to schedule charging sessions at convenient times to make the most of cheap energy and optimise your electricity consumption.

Delayed charging function

Intuitive operation, intelligent delay function for charging by 2, 4, 6 or 8 hours

You can set a delayed charging start time of 2, 4, 6 or even 8 hours and save on energy costs, e.g. by using a night-time tariff, which is a more economical solution as it does not overload the system. Simply connect the charger to the power supply and then press the delay button a specified number of times before connecting the car. Pressing the button with the clock icon delays charging by 1 hour with each click.

Charge at home or on the go

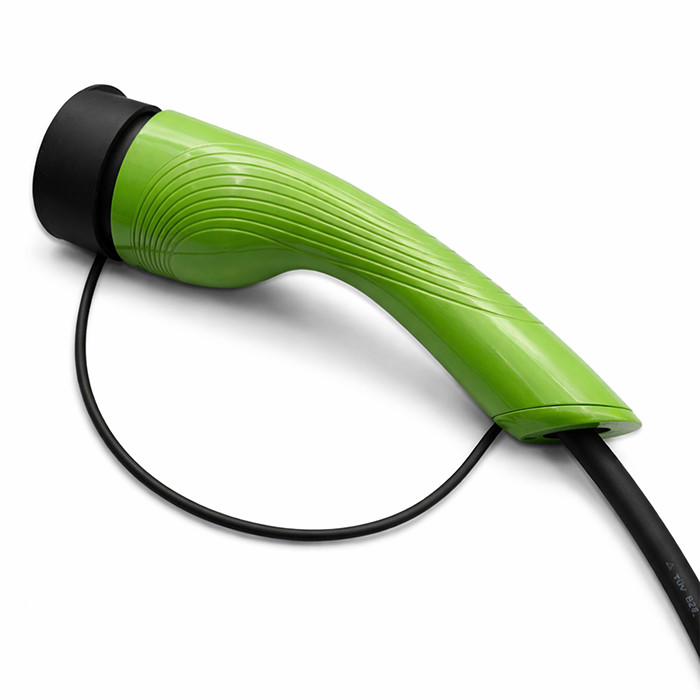

5-metre charging cable and ergonomic plug

The Qoltec mobile EV charger is the perfect solution for both home and travel use. It can be mounted on a wall in your garage or outside — just choose a location close to your vehicle and a 230V power source equipped with a CEE 32A power plug. An additional advantage is the 5-metre charging cable with an ergonomic type 2 plug, which ensures convenience of use and freedom to connect your vehicle. For complete safety, we recommend using a type B residual current device, which effectively protects against electric shock and system overload.

Waterproof polycarbonate casing

Durable and weather-resistant housing made of non-flammable polycarbonate, easy external installation, water and dust resistance

Our chargers are constructed from durable, UV-resistant, non-flammable polycarbonate. In addition, the charger is highly water-resistant and dustproof. The casing has special openings designed for external mounting.

Go green and power your car with clean energy

zasilacz

Use your own solar energy to charge your car. Recharge your vehicle up to several times faster.

Use your own renewable clean energy from photovoltaics to charge your vehicle - it's a way to reduce the operating costs of your car and cut carbon emissions. You can recharge your car at any time and even several times faster. The number of panels needed to charge your car will depend on the battery parameters, vehicle model and distances travelled. You can charge it in two ways:
• when the photovoltaic panels are producing energy - this is the most cost-effective solution
using surplus energy produced by photovoltaic panels, which has been transferred to an energy storage facility or the grid and can be used at a later time.

Your safety and that of your loved ones is important to us.

EV

Advanced safety features that protect both the vehicle and the user

The device is equipped with a range of advanced safety features that protect both the vehicle and the user from the effects of overloading, overheating or short circuits. Thanks to the built-in LEDs, you can check the device’s operating status at any time — the colours indicate the current charging status and any errors. With the Qoltec charger, you can be sure that the charging process is safe, stable and fully under control, regardless of the location and conditions of use.

Confidence confirmed by a warranty

Product covered by a 24-month warranty

Do you care about the high quality of the product you are buying? Our solutions will meet your expectations. The chargers we offer are covered by a 24-month warranty valid from the date of purchase.


Technical data
Producer
Qoltec
Type
2
Number of phases
1
Maximum power
7kW
Rated voltage
230V
Operating current
13A/16A/20A/24A/32A
Frequency
50Hz
Plug type
CEE 32A
Insulation resistance
>10MΩ
Type of charging interface
IEC 62196-2
Conductor cross-sectional area
5*2.5mm² + 1*0.5m²
Diameter of the cable
10.8mm
Cable length
5m, Power cable 0.31m
Insulation material
TPU
Display
LCD 2,4''
Compatibility
TYPE 2 compatible with most electric vehicles in Europe
Safety
Overvoltage protection
Undervoltage protection
Thermal overload protection
Short-circuit protection
Leakage current protection
Earthing
Temperature monitoring
IP Rating
IP65
Working temperature
-30˚C ~ +50˚C
Notices
The charger may only be used if the mains supply is equipped with a residual current device.
Do not attempt to repair the device yourself.
Please do not use the device with an additional extension lead.
Additional information
Wi-FI
Dedicated application TUYA / SMART LIFE APP
Aplikacja smart life : w aplikacji dostępne funkcje opóźnienie ładowania o 2H 4H 6H i 8H
OTHER PARAMETERS
Colour
Grey
Dimensions (D/L x W x H)
225 x 100 x 50 mm | 235 x 70 x 62 mm (charger) | 120 x 385 x 345 (bag)
Package contents
1 x EV charger

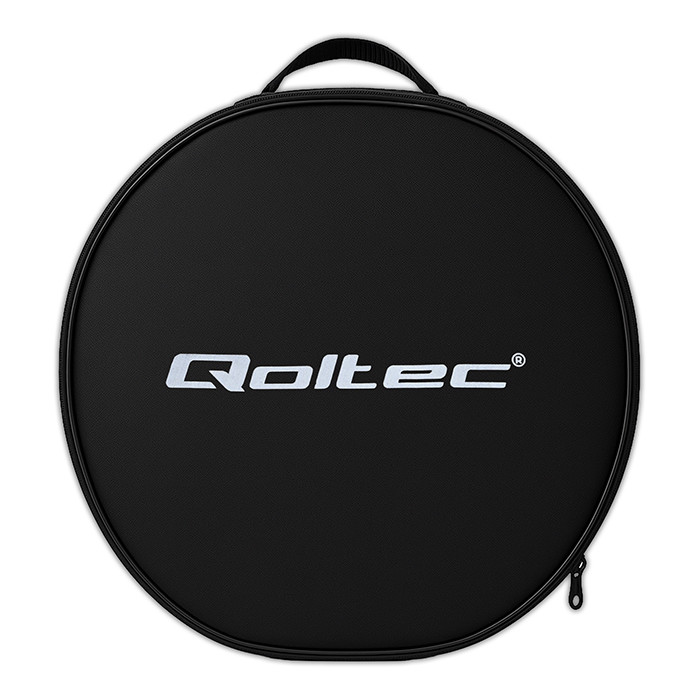

1 x Charger storage bag

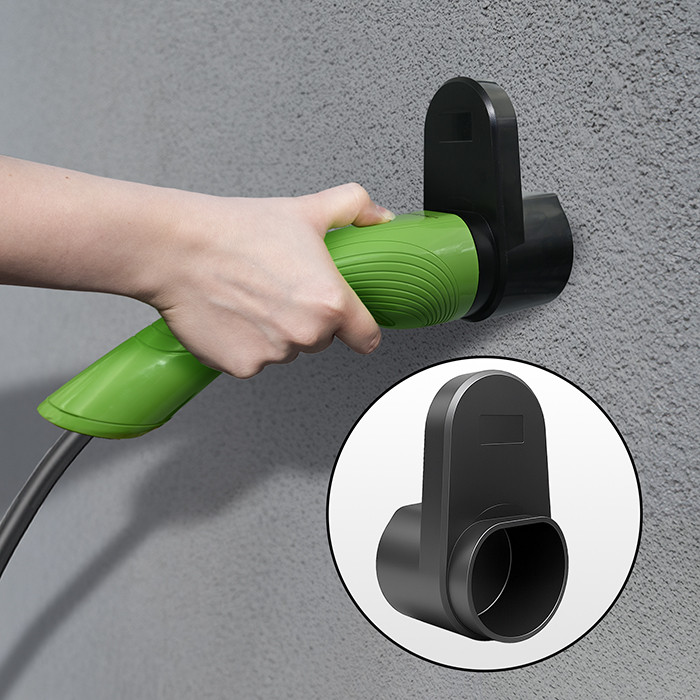

1 x Gun holder

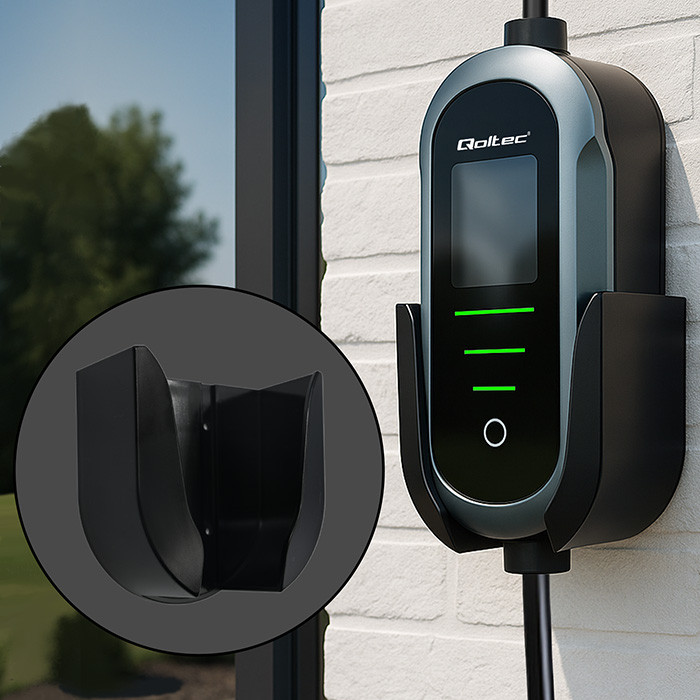

1 x Wall-mount bracket for the charger
1 x User manual
1 x Warranty card
Package
Box
Package depth / length [mm]
380
Package width [mm]
380
Package height [mm]
80
Net weight [kg]
3.160
Gross weight [kg]
3.360
Certificate
CE
Warranty
24 month
EAN code
5901878527215
