Qoltec Aluminium Power strip for RACK 10'' | 1U | 16A | PDU | 4xSCHUKO | 1.8m

Qoltec Aluminium Power strip for RACK 10'' | 1U | 16A | PDU | 4xSCHUKO | 1.8m

Product code: 54603

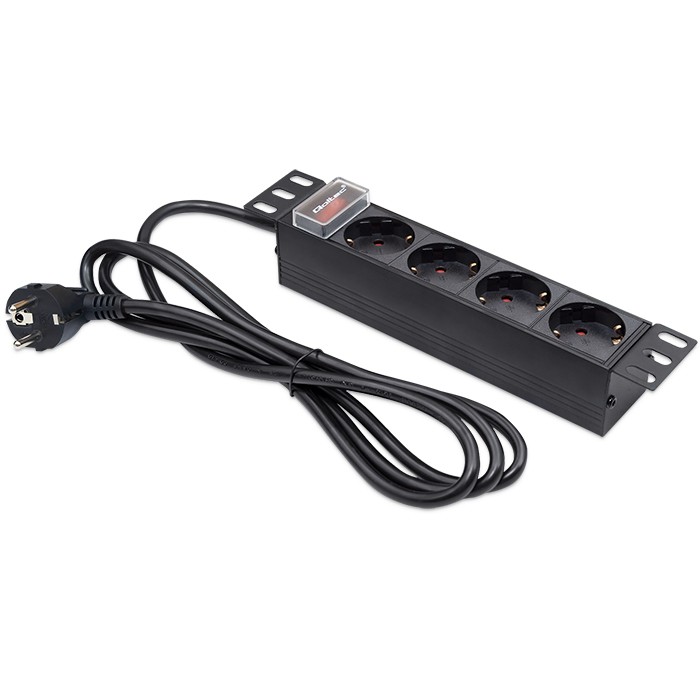

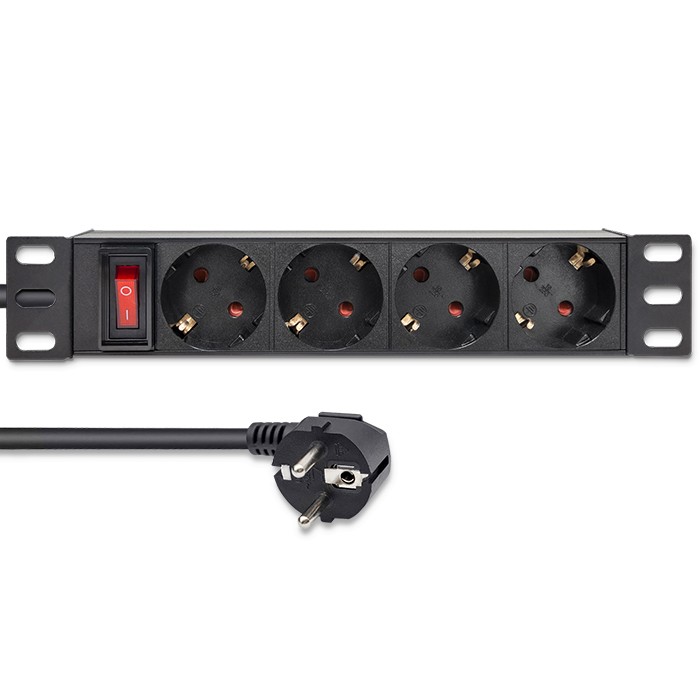

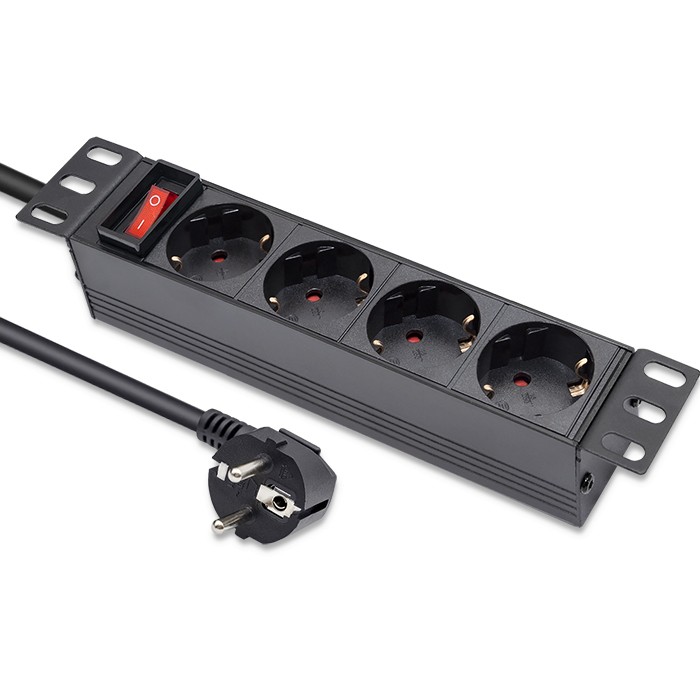

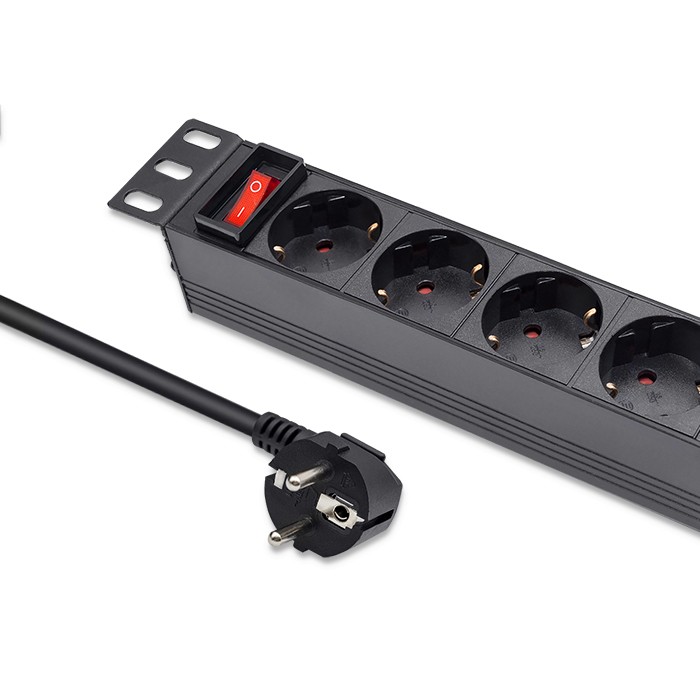

The PDU power strip is designed to distribute power from an available source. The product has 4 SCHUKO-type sockets. The enclosure is made of high-quality aluminium, the sockets are made of ABS plastic. Ideally suited for server cabinets.
Our strip offers:
- electrical durability,
- continuity of earthing,
- insulation resistance,
- illuminated switch.

Stable and safe power supply for your devices

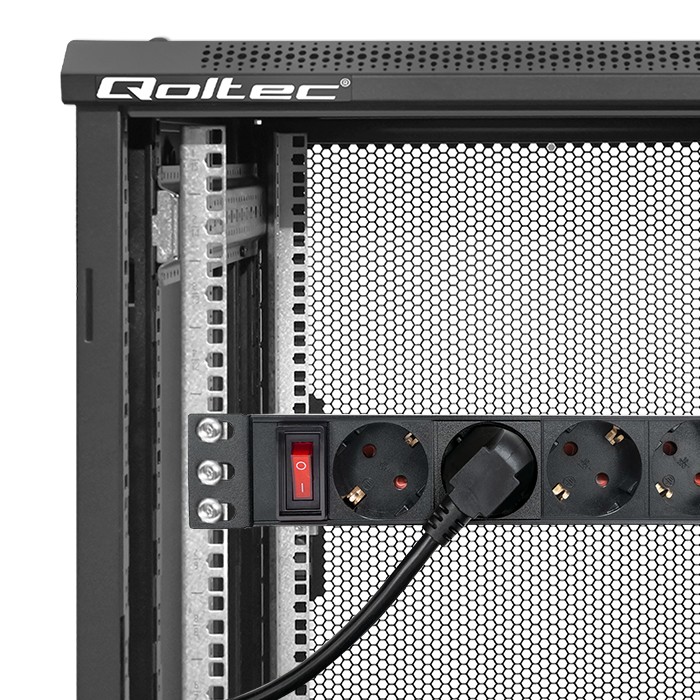

Maximum level of security for all network devices in the server rack

Do you run an IT company, perhaps you are involved in energy, industry or operate a small server room at home? Choosing the right equipment should always be very thoughtful, and the most important element in this case is a reliable power supply. The Qoltec PDU power strip is ideal for this. By purchasing our power strip, you ensure the right level of security for all the network devices in your server rack by protecting them from surges and power outages and increase energy efficiency.

High quality and durability

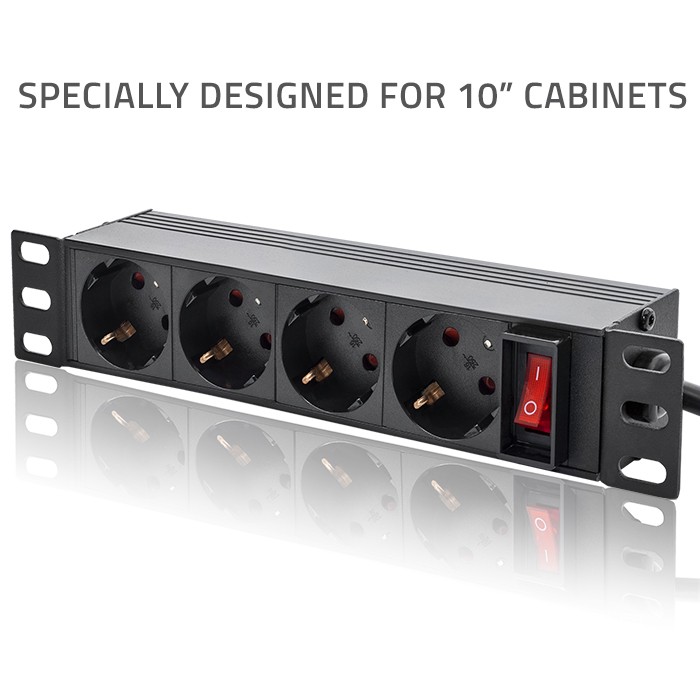

Choose our PDU strip for 1U 10" racks - functionality, durable aluminium housing and easy installation

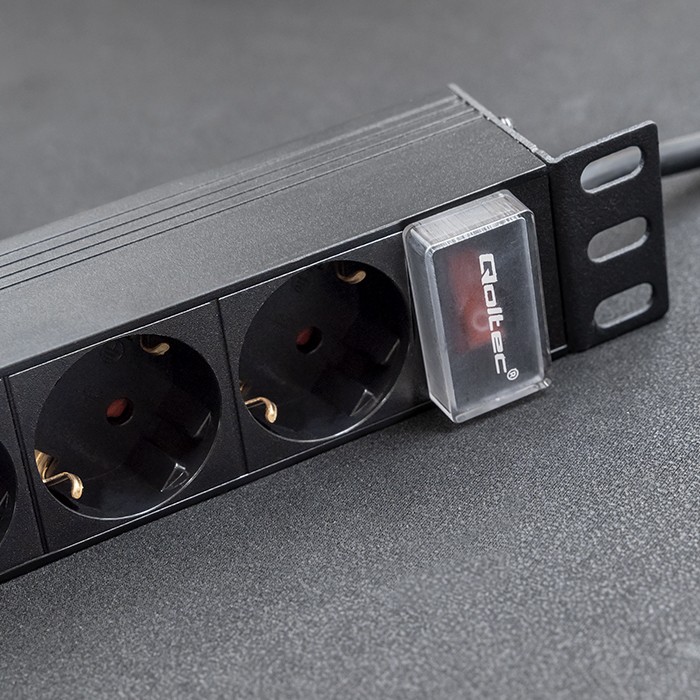

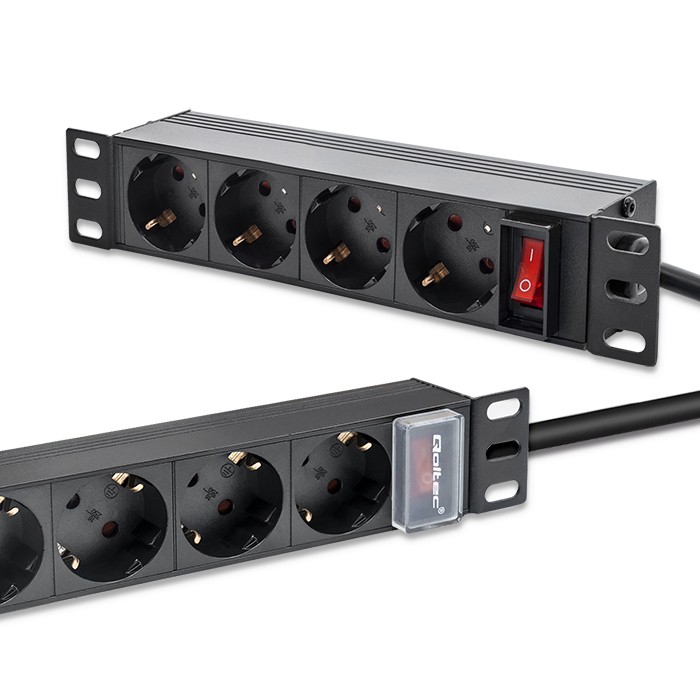

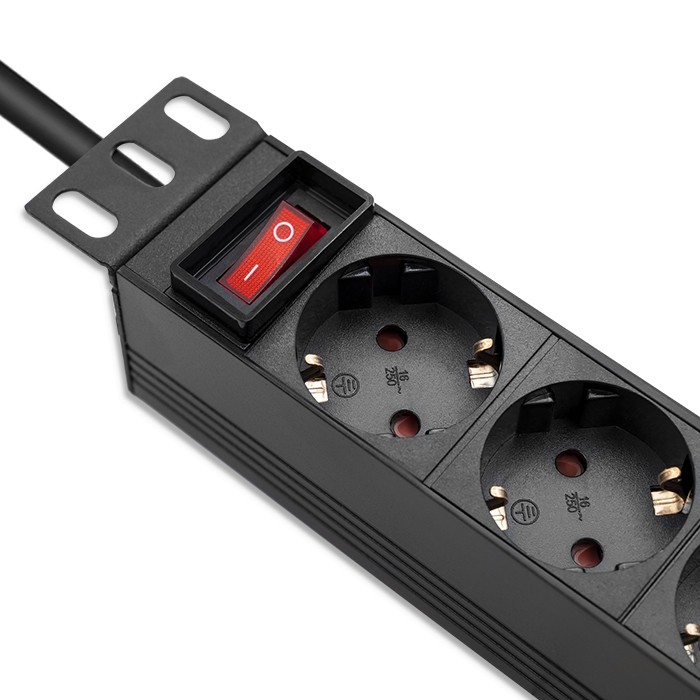

Choosing the right PDU strip, it is worth paying attention to functionality, the quality of the materials from which it is made, the mounting and the facilities offered, such as the illuminated switch, which allows you to quickly locate the power source. Our product fits perfectly into 1U 10" racks. The socket strip has 4 SCHUKO sockets. The housing is made of high-quality aluminium in black, while the sockets are made of durable ABS plastic. Thanks to which the socket strip is resistant to mechanical damage and intensive exploitation. Each PDU power strip has special brackets on both sides with which they can be mounted. The sockets are arranged at an angle of 35 degrees to the vertical surface of the server cabinet, making it easier to manage cabling and increasing the space in the server cabinet.

Highest safety standard

Completely CE and RoHS certified, guaranteeing the highest safety standards

Our surge strips for RACK cabinets meet the highest standards and are CE and RoHS certified. They have also passed tests for:
- electrical strength (Hypo test),
- earth continuity,
- insulation strength.

Confidence confirmed by a warranty
Product with 24 months guarantee

Do you care about the high quality of the product you are buying? Our solutions will meet your expectations. The power strips we offer for RACK cabinets are covered by a 24-month guarantee valid from the date of purchase.


Technical data
Producer
Qoltec
Input voltage
220 - 250 V
Max. input current
16A
Output voltage
230V
Output frequency
50 - 60 Hz
Maximum load
3680W
Plug standard
DIN VDE 0620-1
Plug type
DIN49441
Sockets
4 x SCHUKO
Conductor cross-sectional area
3G x 1.5mm²
Fire resistance rating
UL 94V-0
Working height
1U
Mounting method
Horizontal
Cable length
1.80m VDE compliant
Tests
Electrical strength (Hipot test), earth continuity, insulation strength.
Usage
Power supply in 10" rack enclosures
Additional information
Illuminated circuit breaker
OTHER PARAMETERS
Colour
Black
Material
Aluminium + PC + copper

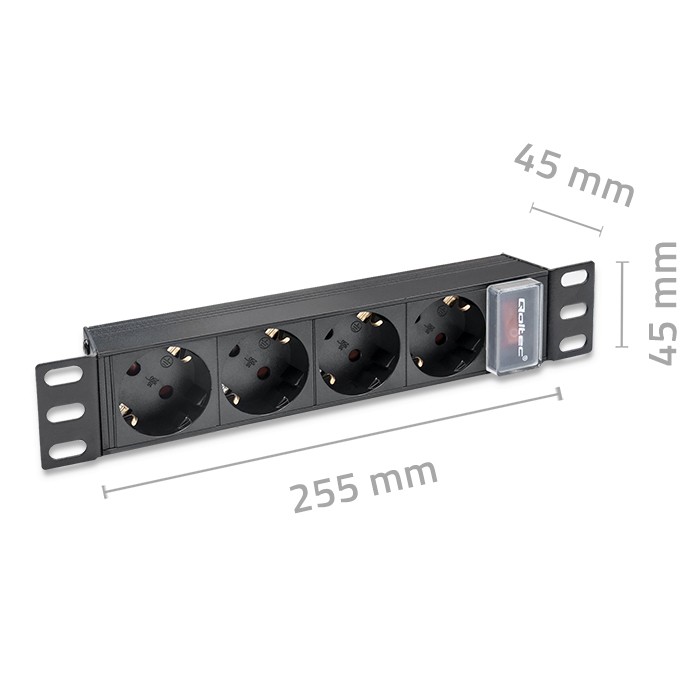

Dimensions (D/L x W x H)
255 x 45 x 45 mm
Package contents
1 x PDU socket strip
Package depth / length [mm]
95
Package width [mm]
330
Package height [mm]
55
Net weight [kg]
0.537
Gross weight [kg]
0.600
Certifications
CE, ROHS
Warranty
24 month
EAN code
5901878546032
