Qoltec Code lock DIONE with RFID reader Code | Card | key fob | Doorbell button | IP68 | EM

Qoltec Code lock DIONE with RFID reader Code | Card | key fob | Doorbell button | IP68 | EM

Product code: 52445

The DIONE code lock by Qoltec using electronic encryption technology secures access to objects and rooms by blocking access for unauthorized persons. It has a doorbell button.
Application : offices, public buildings , private properties, server rooms, warehouses.
Card and key fob included.

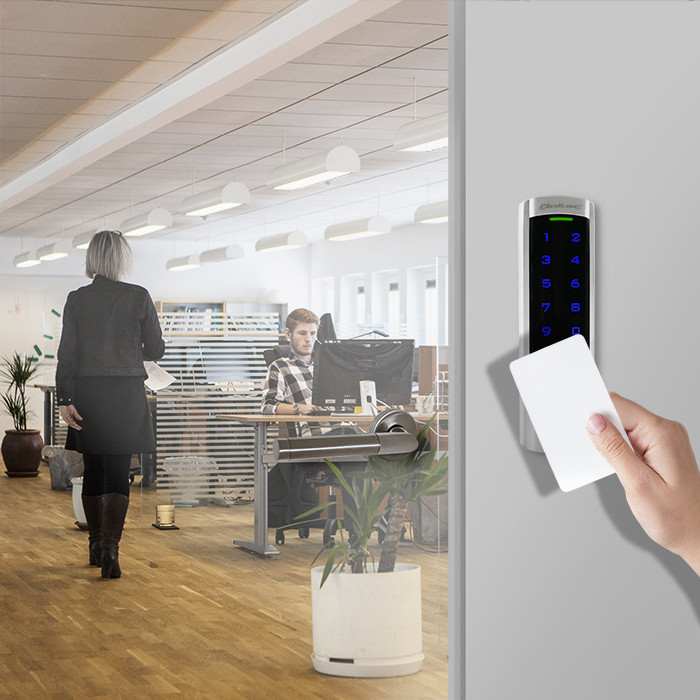

Automate your facility

zamek

The DIONE Code lock by Qoltec uses electronic encryption technology. It has several programming options. It supports up to 2000 users. It can be opened, for example, with an individual access code consisting of any combination of digits, if correct the lock releases the lock and unlocks access.

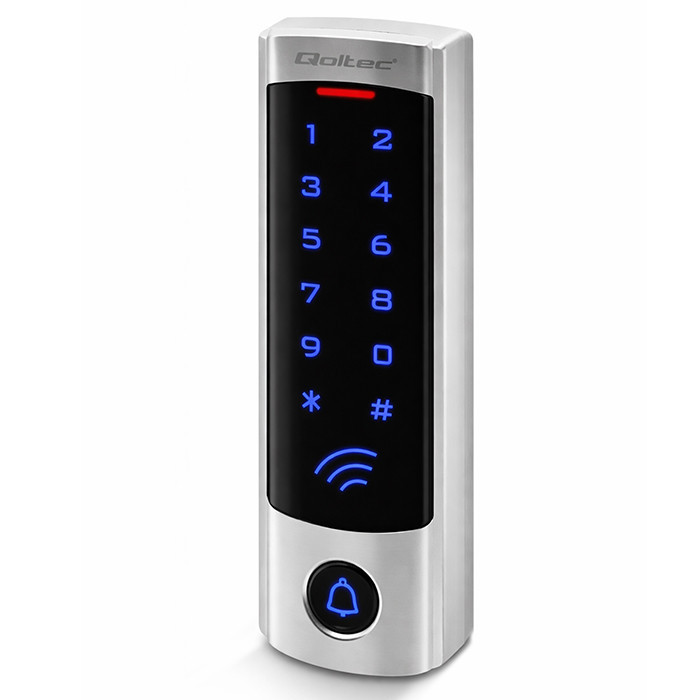

The presented model consists of an illuminated digital keypad, doorbell button  and a reader for proximity cards and key tags.

The lock can be unlocked with :

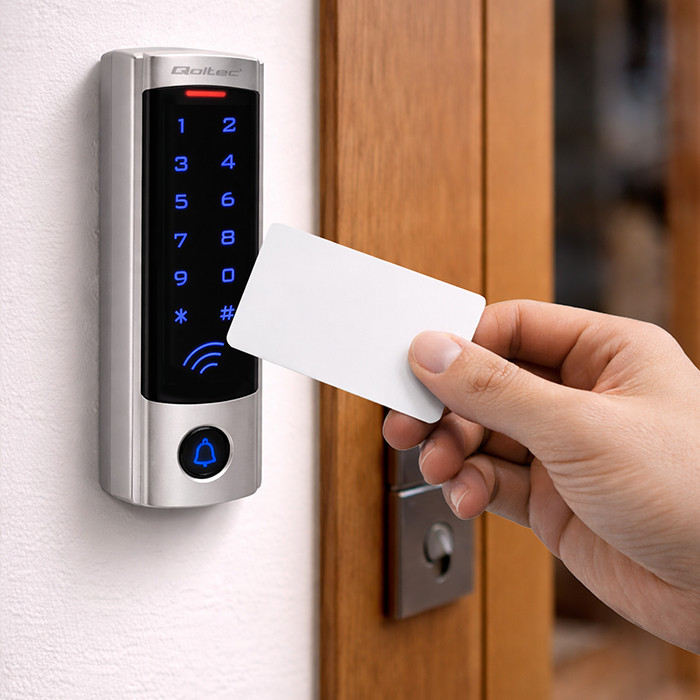

- user's proximity card or key tag,

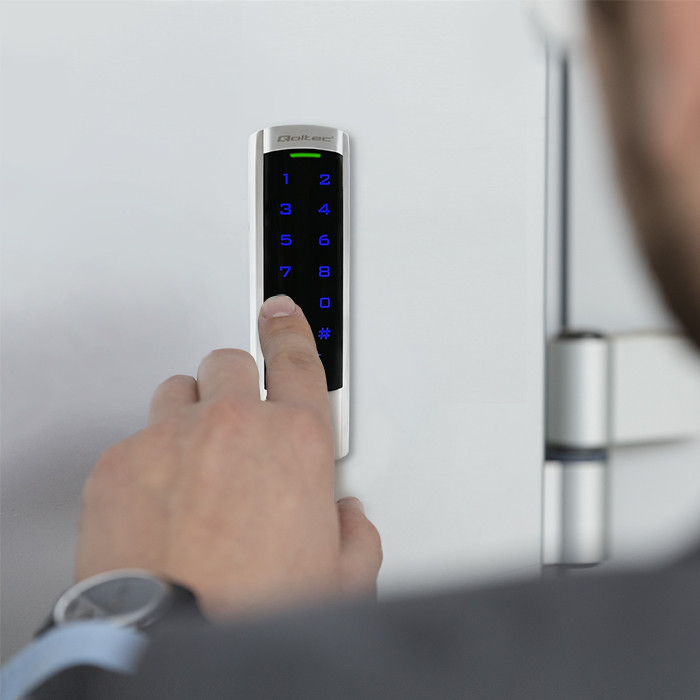

- PIN code (4-8 digits),
- user proximity card + PIN

Highest waterproof class

zamek

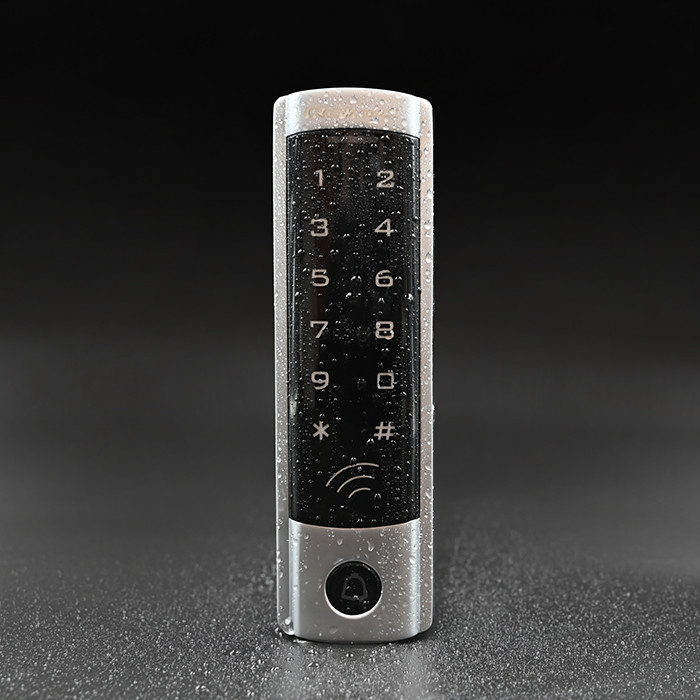

Our product has the highest class of rain and dust resistance, IP68. It is resistant to external factors such as dust and moisture. Keeping in mind that dust and moisture are a threat to electronics, and combination locks are often designed for outdoor installation, it is worth paying special attention to this parameter.
Elegant and solid construction with attention to every detail

zamek We make sure that the products of our brand are united not only by the aesthetics of workmanship, but also by durability. Solid workmanship guarantees the durability of the product and is a guarantee of use for many years.

Take care of security

The issue of security when storing various types of valuable items or documents that require special attention concerns not only companies, offices, clinics, but also private properties. There is always a risk of losing important data. Therefore, it is important to have adequate security - to prevent unauthorized access.

In our offer you will find several models of combination locks worth your attention - they all have one thing in common - they are designed to provide a high level of security.

Confidence confirmed by a warranty

Do you care about the high quality of the product you buy? Our solutions will meet your expectations. All code locks on offer are covered by a 24-month warranty valid from the date of purchase.


Technical data
Producer
Qoltec
Type
EM
Type of transmission
RFID

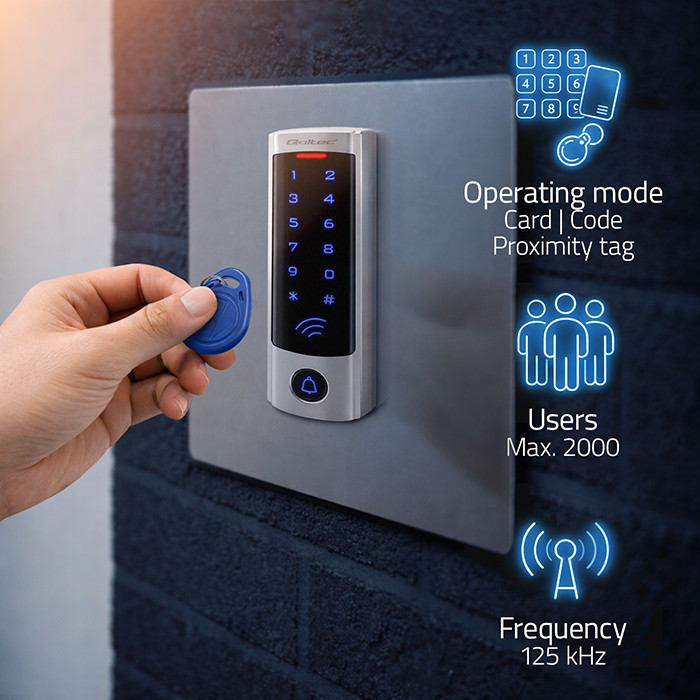

Operating mode
Code/card/proxymity tag
Nominal voltage
12-24 V DC
Frequency
125 kHz
Load capacity
<60mA
Max number of users
2000
Number of relay outputs
1
Touch keyboard
No
Fingerprint reader
No
Proximity reader
Yes
Opened via smartfone
No
Doorbell button
Yes
Backlight
Yes
Keypad
Yes

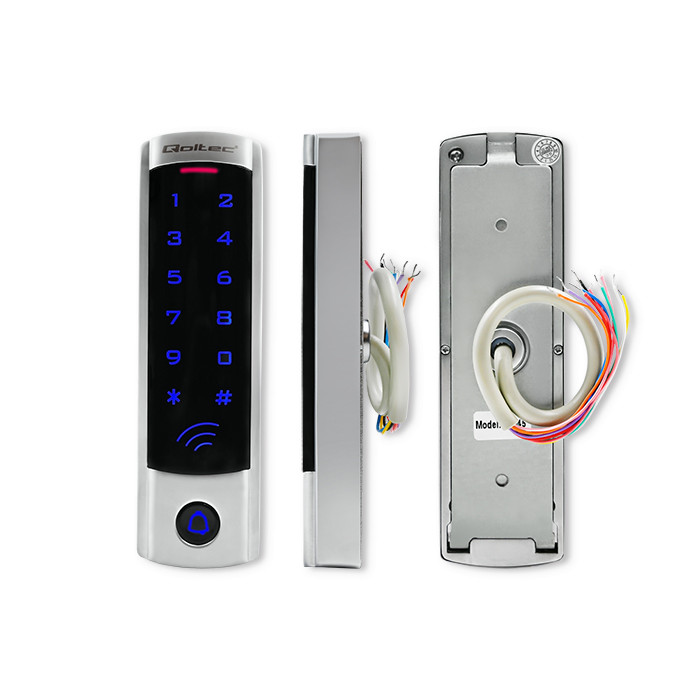

Installation
Surface mouting
IP Rating
IP68
Additional information
Card and key fob included.
Other parameters
Working temperature
-40℃~+60℃

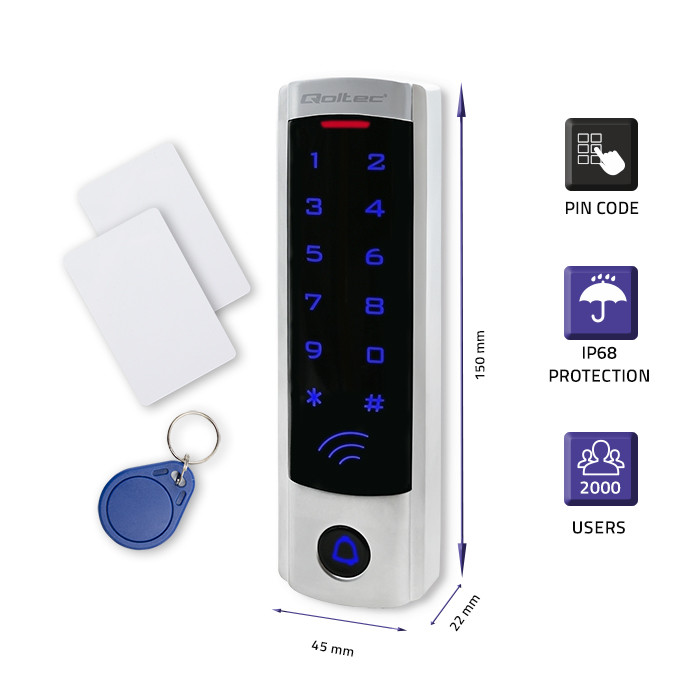

Dimensions (D/L x W x H)
25 x 45 x 154 mm
Package depth / length [mm]
126
Package width [mm]
192
Package height [mm]
60
Net weight [kg]
0.202
Gross weight [kg]
0.310
Warranty
24 month
EAN code
5901878524450
