Qoltec EV Cable Type 2 for car charging | 230V | 7kW | 32A | 5m

Qoltec EV Cable Type 2 for car charging | 230V | 7kW | 32A | 5m

Product code: 52472

EV charging cable for an electric car equipped with a Type 2 plug compatible with most electric cars sold in Europe.
- TPU coating
- waterproof
- dustproof
- durable

Enjoy independence and convenience

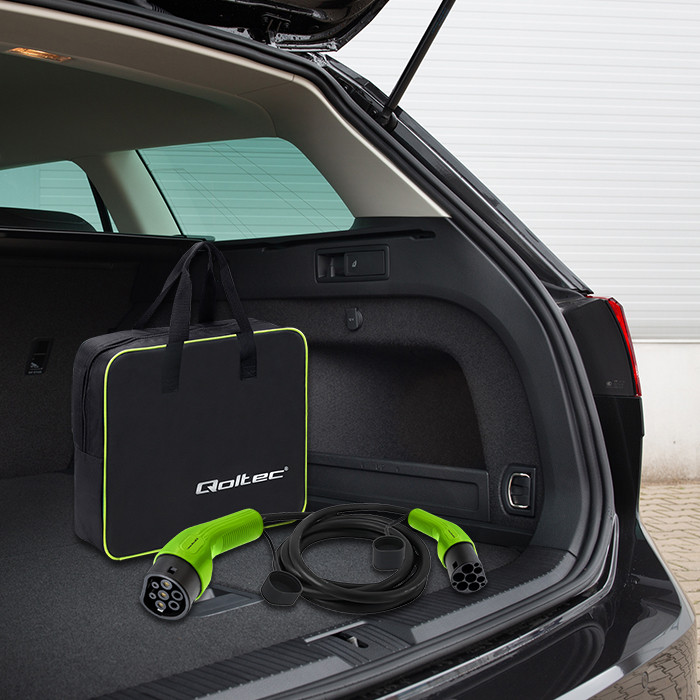

Don't let the low charge of your battery prevent you from using your electric vehicle. With our cables you can charge your car's battery in just a few minutes. Our EV cable will be perfect, for example, during longer vacation trips, thanks to its compact design, it takes up little space, you can easily carry it directly in the trunk or in the included bag. You don't have to worry about additional terminals, the cable has a type 2 connector - you can connect it from any station in Europe and enjoy independence while covering more miles.

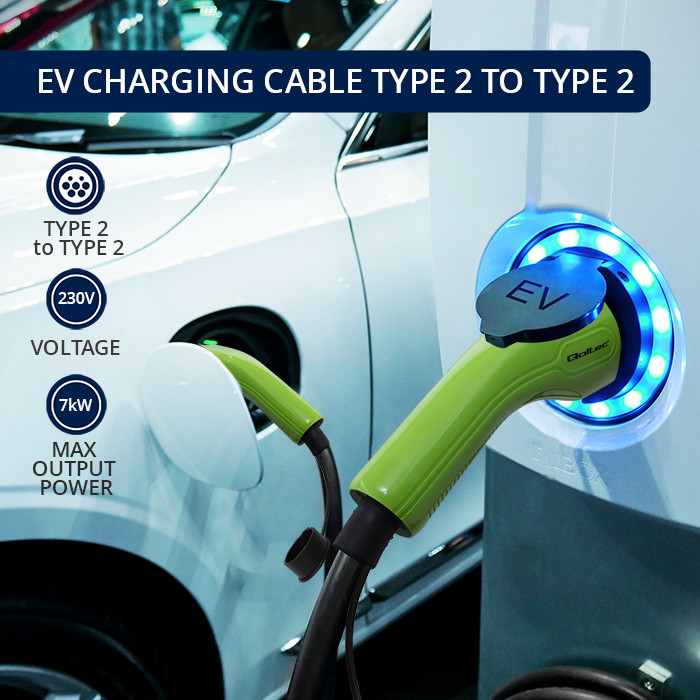

European connector standard type 2

kabel-ev

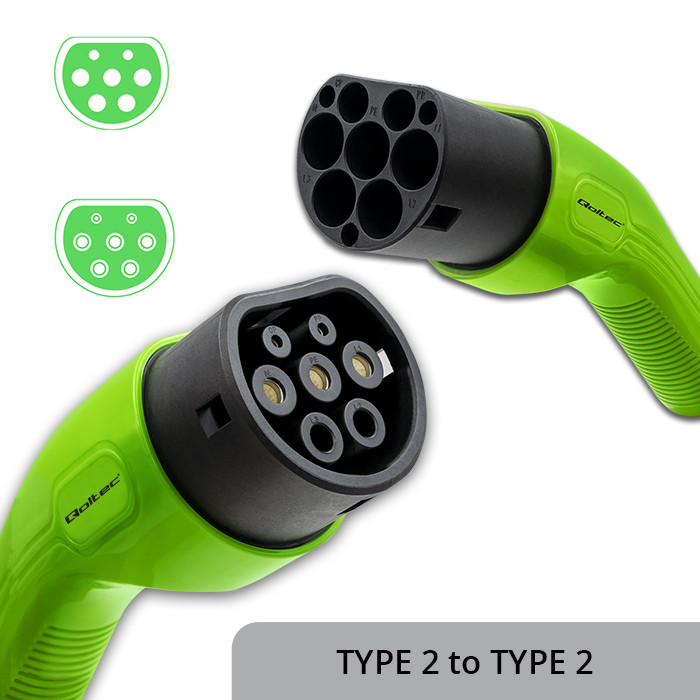

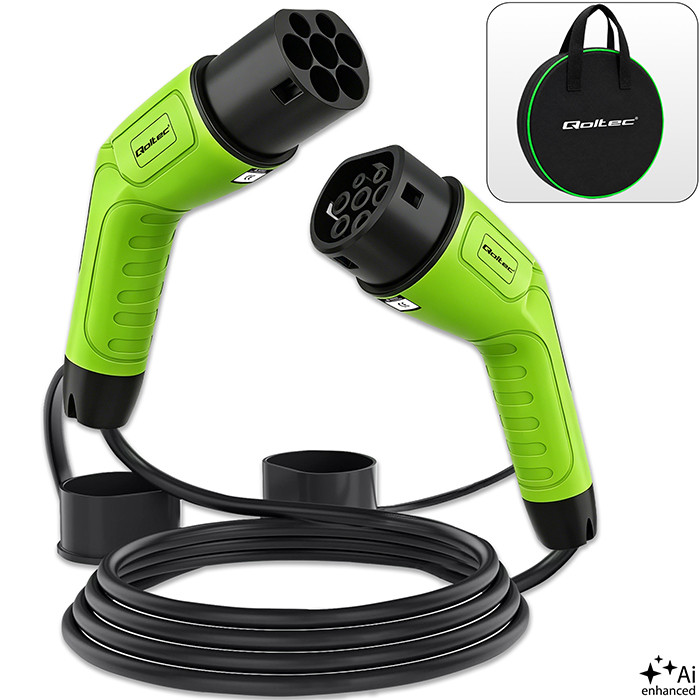

The cable has a Type 2 connector, which is now the official standard of the European Union and charges electric cars equipped with the corresponding charging socket. The Type 2 connector is 7 contacts, of which 3 contacts or 5 are for charging and 2 are for communication between the station and the car. Compatible with most electric cars sold in Europe.

Charge your electric car with the best products on the market

kabel-ev

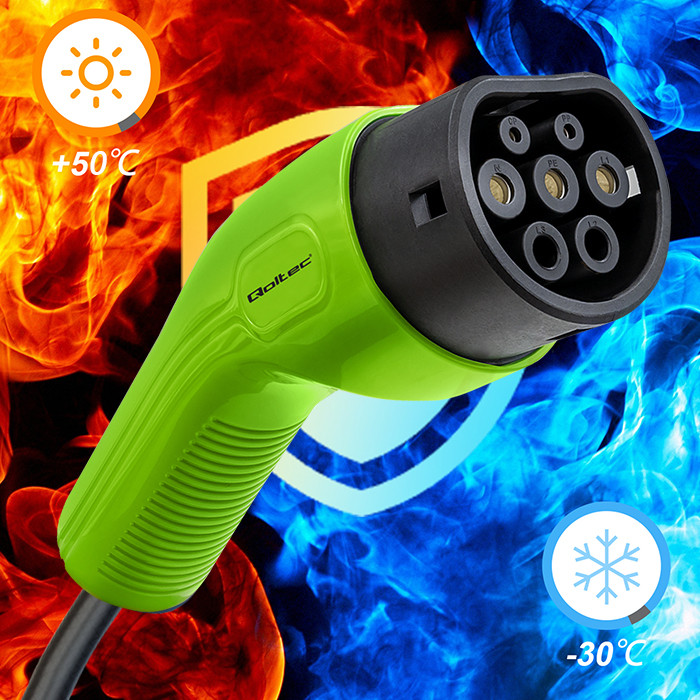

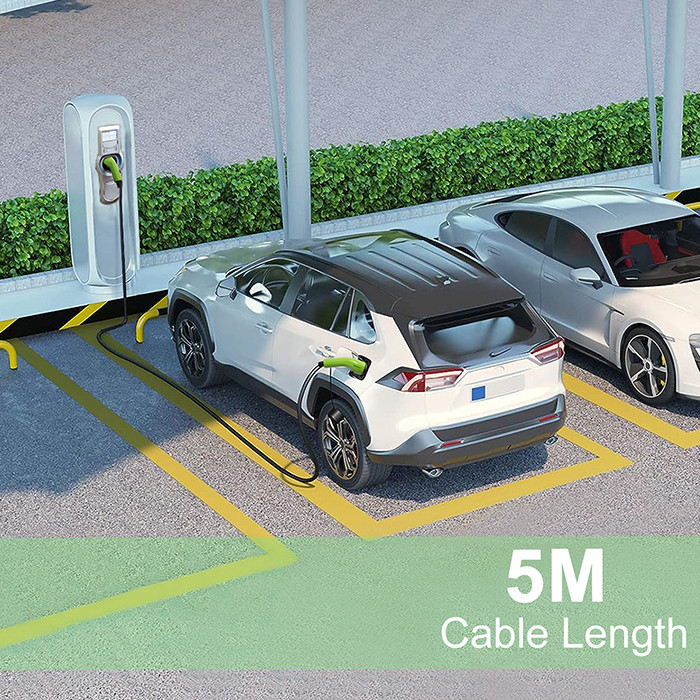

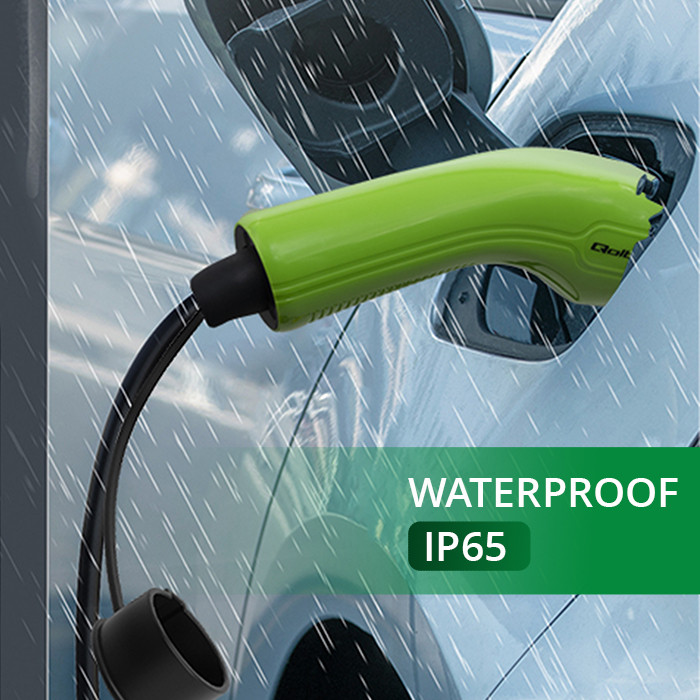

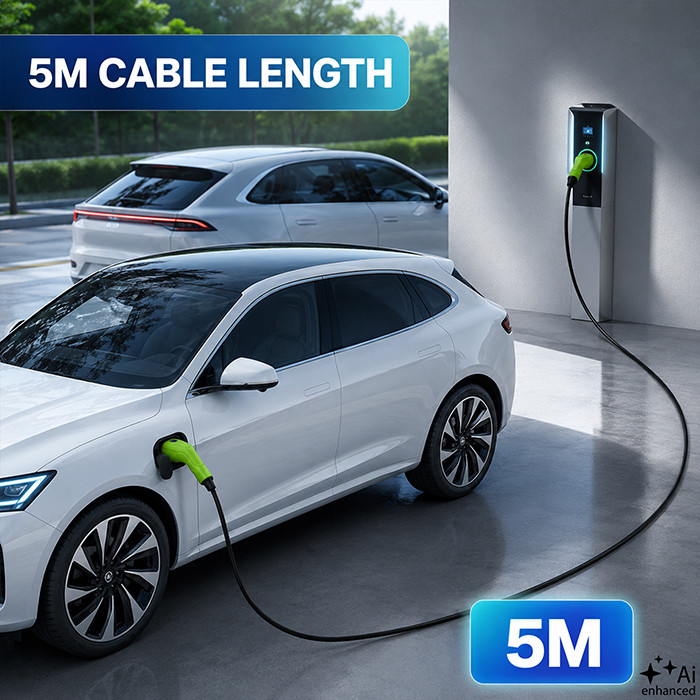

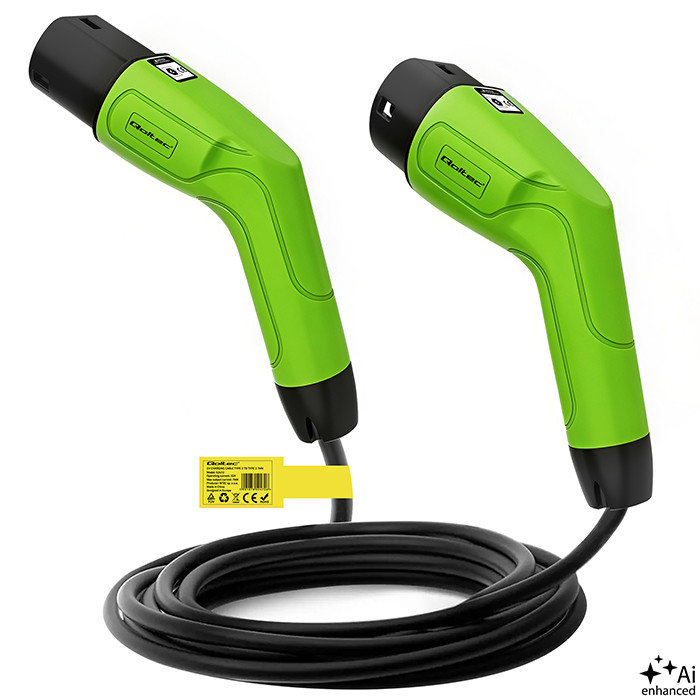

The ergonomic plug and 5-meter cable length will provide any user with a high level of convenience. The cable has been thoroughly tested, has full compliance with all required safety standards, is fireproof and resistant to extreme weather conditions, designed to operate at -30˚C ~ +50˚C. In addition, the cable's outer sheath exhibits high durability and flexibility, as well as water and dust resistance.

How to connect the EV cable correctly?

kabel-ev

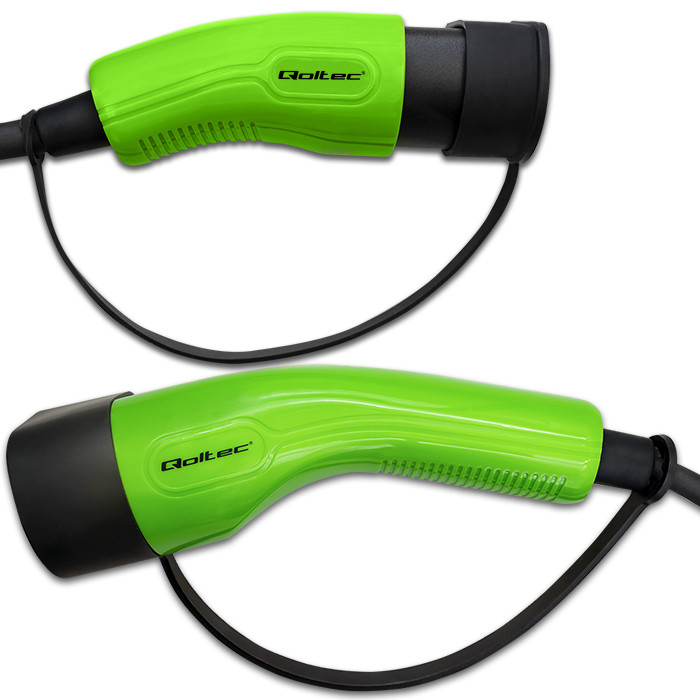

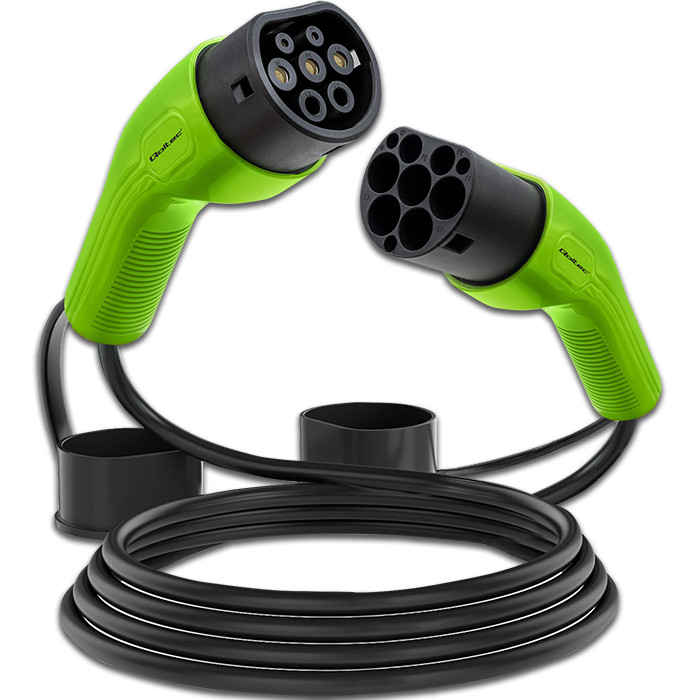

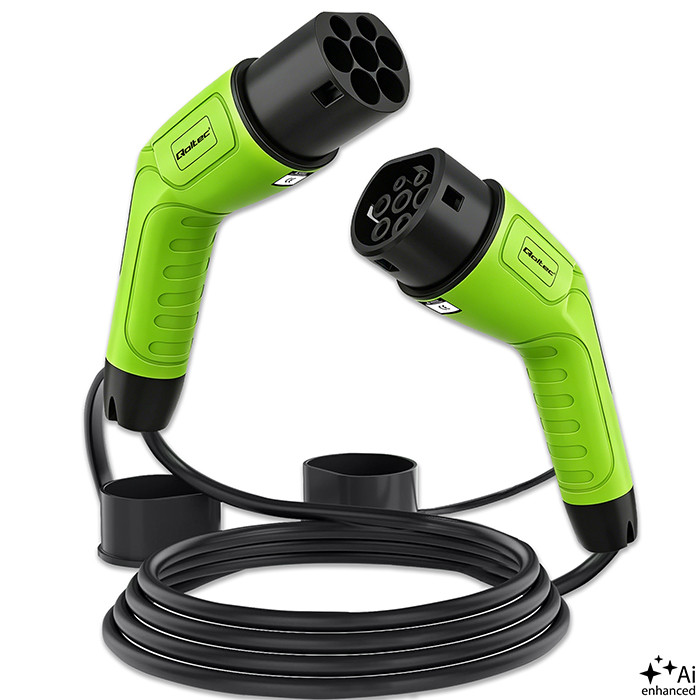

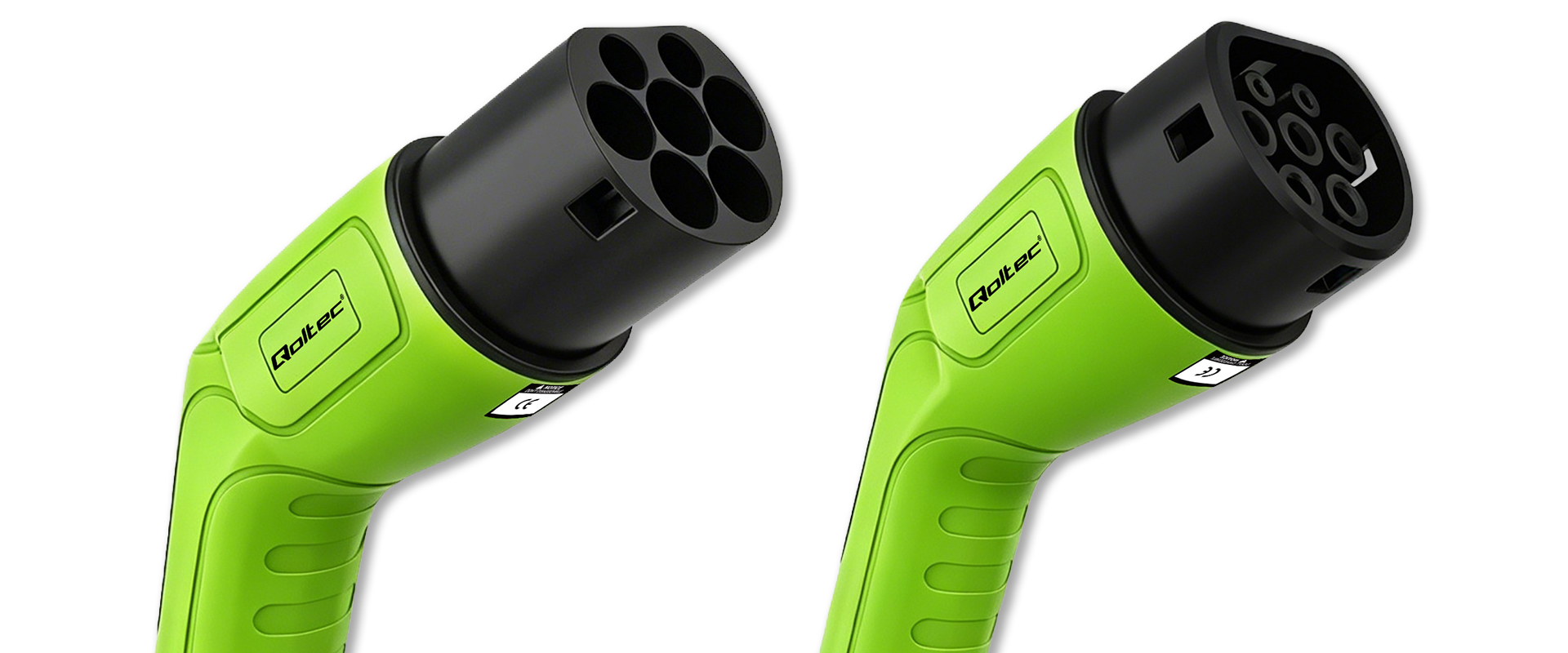

The cable has 2 male and 2 female connectors. The illustration above shows the correct way to connect the cable. The exceptional flexibility of the cable and the ergonomic shape of the pistol ensures complete comfort during daily use and storage of the cable. The mechanical life of the cable is ~ 10.000 connections, i.e. daily charging of your car for at least 25 years.

Confidence confirmed by a warranty

Do you care about the high quality of the product you are buying? Our solutions will meet your expectations. The chargers we offer come with a 24-month guarantee from the date of purchase.


Technical data
Producer
Qoltec
Type
2
Maximum charging power
7kW
Input voltage
230V
Output voltage
230V
Operating current
32A
Frequency
50Hz
Mechanical life
10 000 cycles
Diameter of the cable
13.5mm

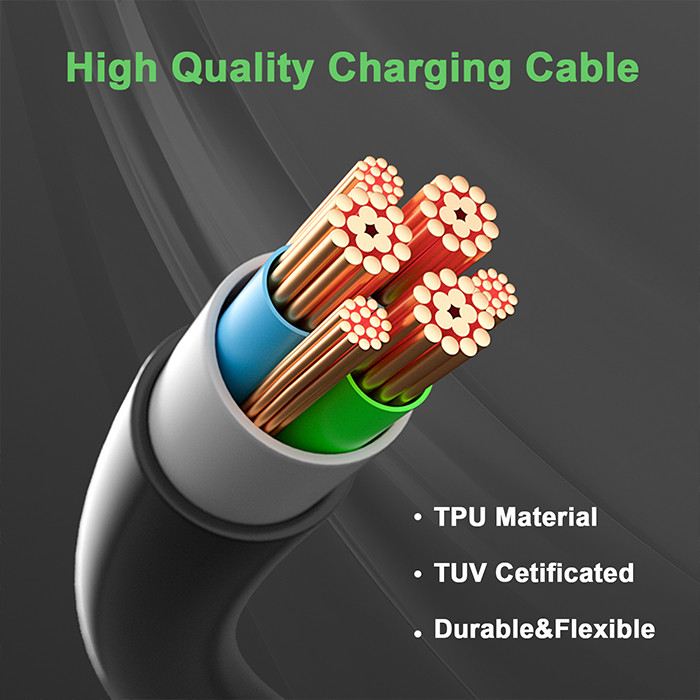

Cross-section conductor of a cable
3*6mm²+ 1*0.5mm²
Insulation material
TPU
Safety
Short circuit protection
Overcurrent protection
Undervoltage protection
Overvoltage protection
Ungrounded protection
Fire protection
Lightning protection
Fully sealed and waterproof
Cable length
5m
Working temperature
-30˚C ~ +50˚C
IP Rating
IP65
Colour
Black, green
Dimensions (D/L x W x H)
250 x 70 x 62 mm | 160 x 58 x 52 mm

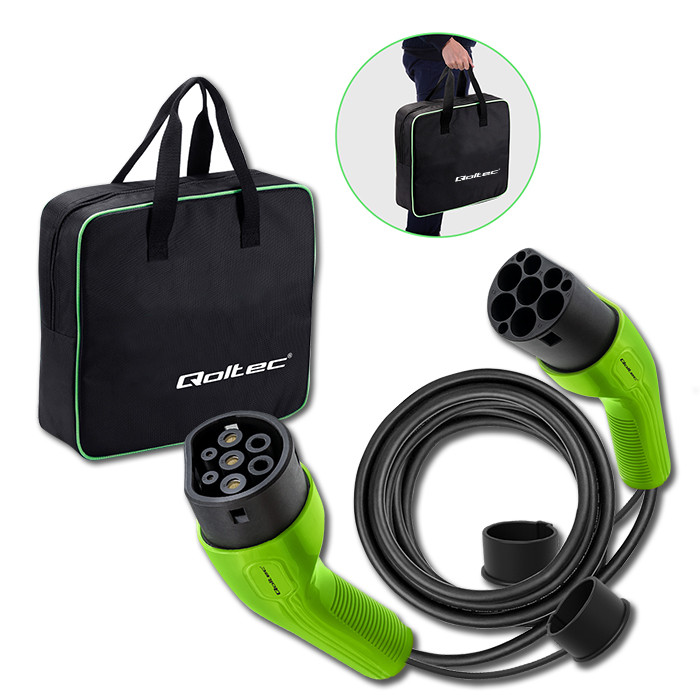

Package contents
1 x EV cable

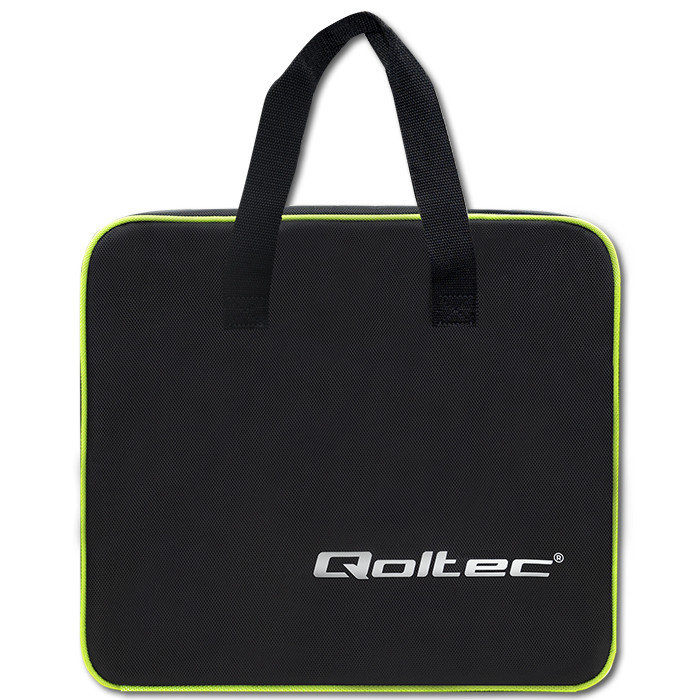

1 x Cable storage bag
1 x Warranty card
Package
Box
Package depth / length [mm]
355
Package width [mm]
400
Package height [mm]
140
Net weight [kg]
2.1000
Gross weight [kg]
2.5000

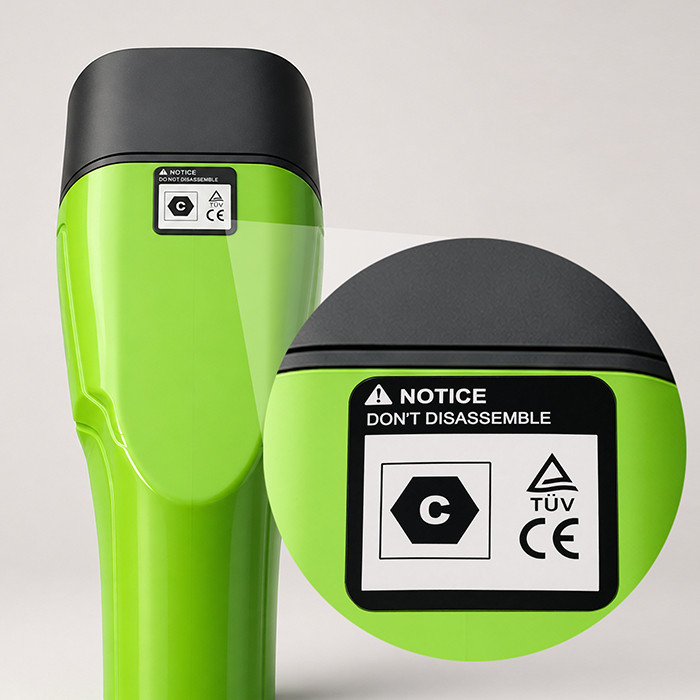

Certificate
CE, TUV, UL
Warranty
24 month
EAN code
5901878524726
