Qoltec Adapter fiber optic hybrid SC/UPC - ST/UPC | Simplex | Singlemode
Qoltec Fiber distribution box 1x4

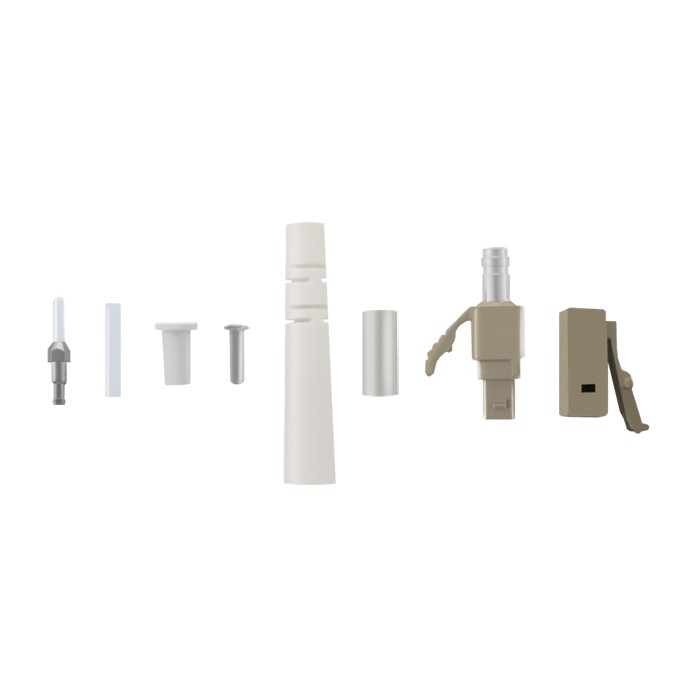

Qoltec Fiber optic connector LC/UPC | Multimode | 3.0mm
Product code: 54164
Fiber optic connector for connecting optical fibers.
Connectors: LC/UPC
Fiber type: Multimode
Technical data
Producer
Qoltec
Type connectors
LC/UPC
Fiber type
Multimode
Usage
Indoor cable
Diameter cable
3.0 mm
Optical fiber diameter
125 µm (657A, 657A2)
Tight buffer diameter
250 µm
Working time
About 100s (no fiber cut)
Insertion loss
≤ 0.3 dB (1310nm, 1550nm)
Fastening strength of naked fiber
> 4 N
Fastening strength of naked fiber holder
> 8 N
Tensile strength
> 10 N
Drop-off test
ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB
Operating temperature
-40°C ~ +75°C
On-line tensile strength (20N)
ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB
IL - insertion loss
RL - return loss
IL - insertion loss
RL - return loss
Mechanical durability (500 times)
ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB
Package
Polybag
Package depth / length [mm]
15
Package width [mm]
70
Package height [mm]
100
Gross weight [kg]
0,003 kg
EAN code
5901878541648
