Product code: 54169

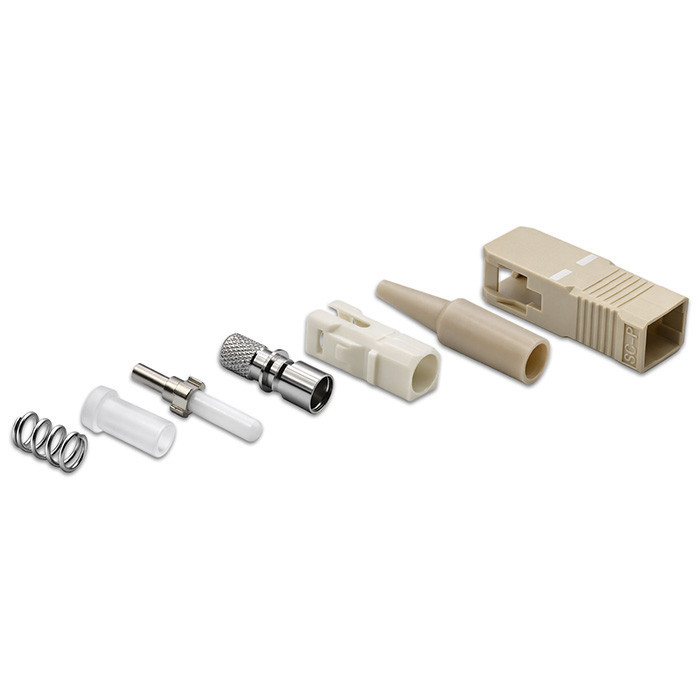

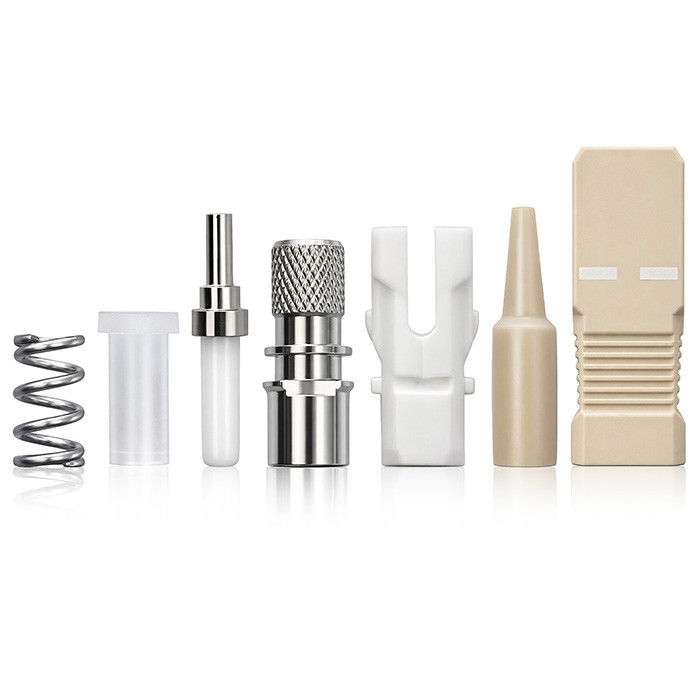

Fiber optic connector for connecting optical fibers.
Connectors: SC/UPC
Fiber type: Multimode
CONFIDENCE CONFIRMED BY A WARRANTY
Do you want a high quality product? Our solutions will meet your expectations. Each connector we offer comes with a 24-month guarantee valid from the date of purchase.
Technical data
Producer
Qoltec
Type connectors
SC/UPC
Fiber type
Multimode
Usage
Indoor cable. Drop cable.
Diameter cable
0.9 mm
Optical fiber diameter
125 µm (657A, 657A2)
Tight buffer diameter
250 µm
Working time
About 60s (no fiber cut)
Insertion loss
≤ 0.3 dB (1310nm, 1550nm)
Fastening strength of naked fiber
> 5 N
Fastening strength of naked fiber holder
> 10 N
Tensile strength
> 50 N
Drop-off test
ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB
Operating temperature
-40°C ~ +75°C
On-line tensile strength (20N)
ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB
IL - insertion loss
RL - return loss
IL - insertion loss
RL - return loss
Mechanical durability (500 times)
ΔIL ≤ 0.5 dB ΔRL ≤ 5 dB
Package
Polybag
Package depth / length [mm]
70
Package width [mm]
15
Package height [mm]
100
Net weight [kg]
0.0030
Gross weight [kg]
0.0040
Warranty
24 months
EAN code
5901878541693
