Qoltec LED Driver IP20 120W | 12V | 10A | Slim case

Qoltec LED Driver IP20 120W | 12V | 10A | Slim case

Product code: 50937

The LED switching power supply is a device characterized by stability and operational reliability. The thin design of the housing allows the use of the power supply in a place with limited access, and thanks to the highest quality components, the power supply meets the expectations of the most demanding customers.

It is designed to power LED strips, modules, panels, LED tapes, bulbs and many other electronic parts powered by 12V.

Harness the Power of LED Technology and Save Energy

Exceptional Energy Efficiency

Our power supply converts energy with 80% efficiency, utilizing the latest LED technology to ensure high energy savings, significantly reducing electricity consumption. As a result, your electricity bills will be lower, while also contributing to environmental protection.

Compact and Easy to Install

Compact Size and Lightweight Design

The power supply features a compact size and lightweight design, making it easy to install even in tight spaces. No matter where you mount it, it will always perform reliably. By choosing our 12V 120W LED switching power supply, you are investing in quality, reliability, and energy efficiency, ensuring your LED lighting will operate perfectly for years to come.

A Safe Solution for Your Home

Optimal Power, Maximum Efficiency - Stable and Safe

With a maximum power output of 120W, the power supply provides stable and safe operation, protecting your LED strips from overload. Additionally, built-in overload, overvoltage, and short-circuit protections ensure long-lasting and safe use. The IP20 protection rating safeguards against dust and moisture, making this power supply ideal for indoor applications.

Confidence confirmed by a warranty

Product Covered by a 24-Month Warranty

Looking for high-quality products? Our solutions will meet your expectations. Each of our power supplies comes with a 24-month warranty starting from the date of purchase.


Technical data
Producer
Qoltec
Usable power
120W
Input voltage
220 V - 240 V
Output voltage
12 V
Voltage adjustment
10.8 - 13.2 V
Voltage Accuracy
±1%
Input Voltage Range
176 - 264 VAC
AC current
1.42 A / 176 V ; 1.1 A / 220 V
Output current
10 A
Overload
Larger than 105% of capacity | restoration after abnormity removed
Frequency range
50 Hz
Surge current
Cold start: 65 A / 230 VAC
Hold time
50 ms / 230 VAC
Start and rise time
1000 ms, 30 ms / 230 VAC
Vibration proff
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z axes 60 min each
Linear Adjustment
±0.5%
Load Adjustment
±0.5%
Efficiency
80%
IP Rating
IP 20

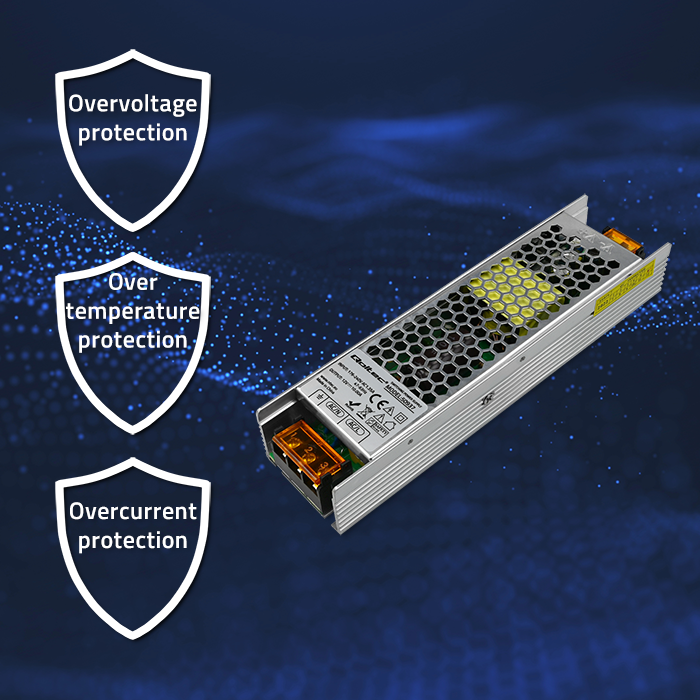

Safety
Overload protection
Overvoltage protection
Short-circuit protection
Additional information

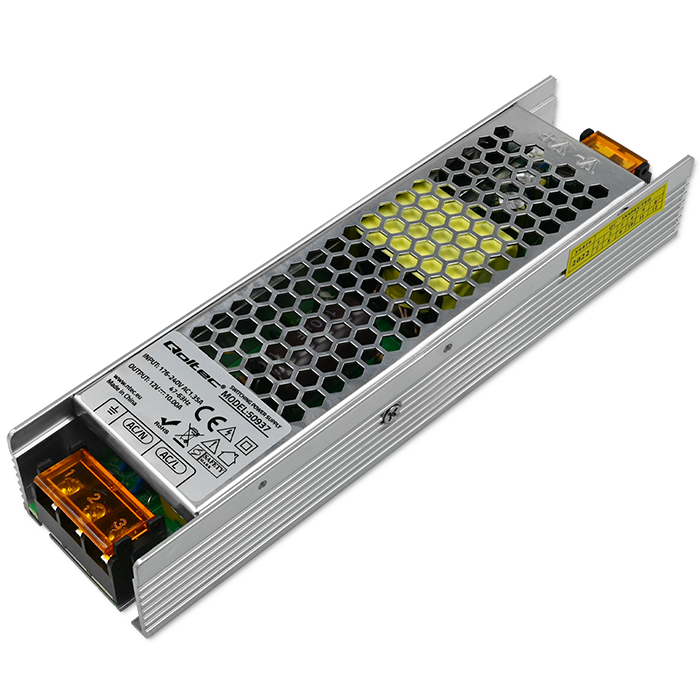

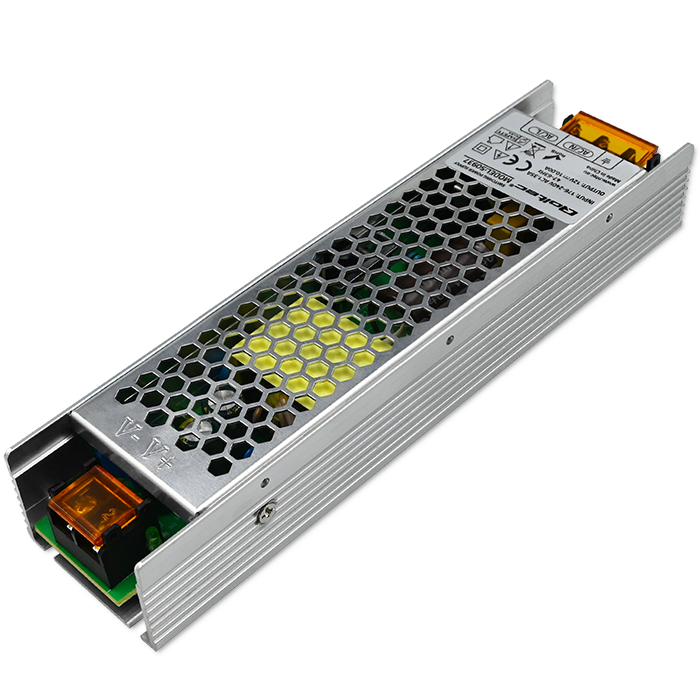

Switching power supply in a metal housing, converts 230V alternating voltage into 12V DC. It is intended for indoor use. Made of electronic components placed on a printed circuit board in a metal housing.
OTHER PARAMETERS
Colour
Silver
Working temperature
-20°C ~ +60°C
Storage temperature
-40°C ~ +80°C
Working humidity
20 ~ 90%, whitout condense

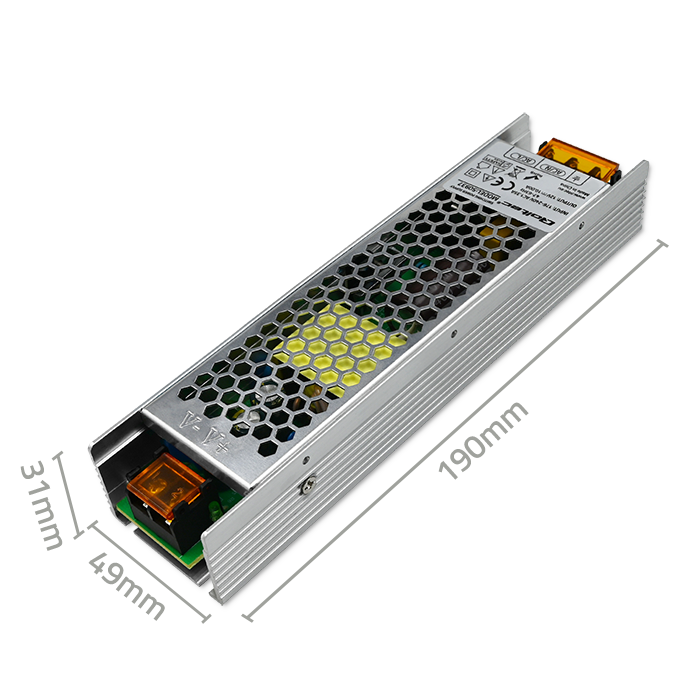

Dimensions (D/L x W x H)
49 x 31 x 190 mm
Package
Box
Package contents
1 x LED switching power supply
Package depth / length [mm]
55
Package width [mm]
195
Package height [mm]
35
Net weight [kg]
0.2550
Gross weight [kg]
0.2860
Warranty
24 months
EAN code
5901878509372
