Qoltec LED Driver IP20 | 150W | 12V | 12.5A

Qoltec LED Driver IP20 | 150W | 12V | 12.5A

Product code: 50928

The LED switching power supply is a device characterized by stability and operational reliability. Thanks to the highest quality components, the power supply meets the expectations of the most demanding customers.

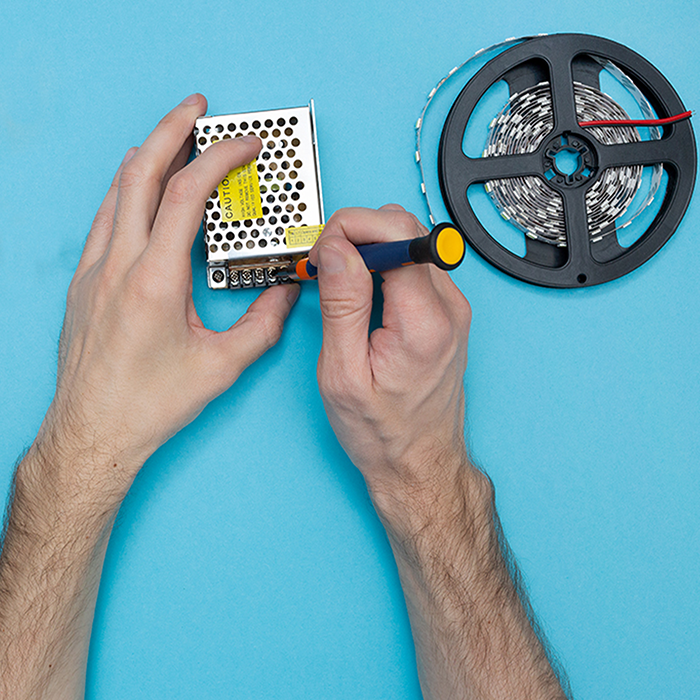

It is designed to power LED strips, modules, panels, LED tapes, bulbs and many other electronic parts powered by 12V.

Reliable LED supply

Are you looking for a reliable way to power the LED strip in your home? Or maybe in your company LED modules are an important element of the lighting installation? If so, you've come to the right place. The Qoltec brand has prepared a wide selection of modular power supplies for you, which are perfect for both home and office work. Thanks to their differentiation in terms of power, you can easily choose the model that suits you.

Safe solution

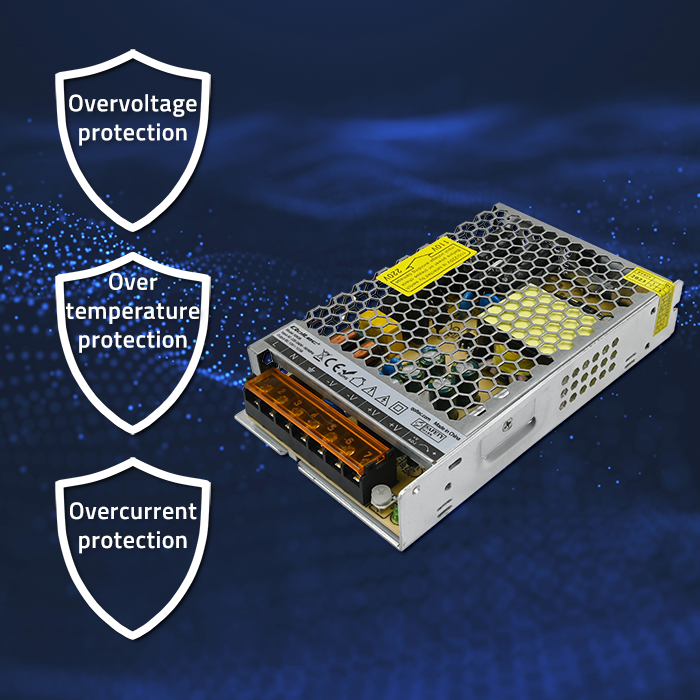

Our device is equipped with modern technologies ensuring protection against:
- overvoltage - protects against too low or too high voltage,
- overloads - protects against power line overload,
- short circuits - protects against short circuits in the supply circuit

Confidence confirmed by a warranty

You value the quality of purchased equipment so our projects and solutions are focused on meeting your expectations. Each modular power supply is covered by 24 months warranty.

Technical data
Package size
103 x 45 x 207 mm
Usable power
150 W
Input voltage
220 V - 240 V
Output voltage
12 V
Output current
12.5 A
Frequency range
50 - 60 Hz
AC current
2.8 A / 110 V ; 1.4 A / 220 V
Input Voltage Range
AC 110 V ± 15% / AC 220 V ± 15% changed by switch
Voltage Accuracy
Voltage adjustment
10.8 - 13.2 V
Surge current
Cold start: 65 A / 230 VAC
Overload protection
Overvoltage protection
Short-circuit protection
IP Rating
IP 20
Larger than 105% of capacity | restoration after abnormity removed
Hold time
50 ms / 230 VAC
Start and rise time
1000 ms, 30 ms / 230 VAC
Vibration proff
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z axes 60 min each
Linear Adjustment
Load Adjustment
Additional information

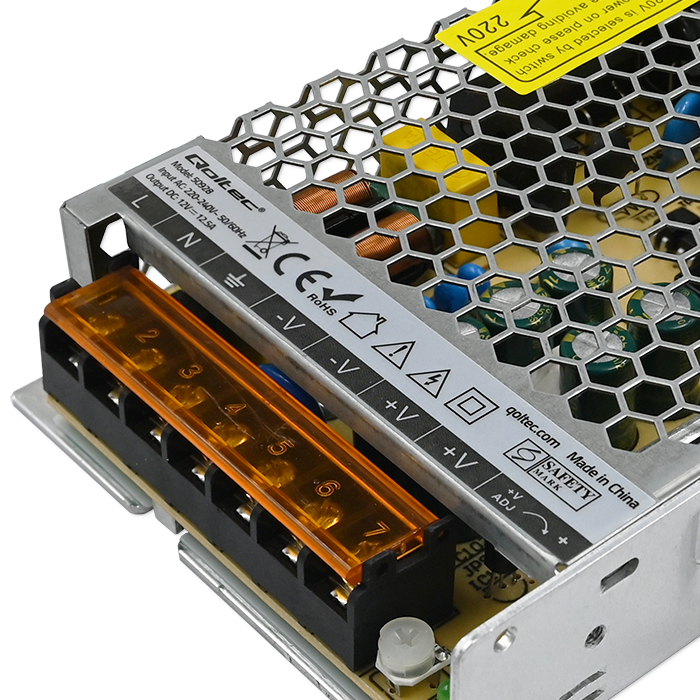

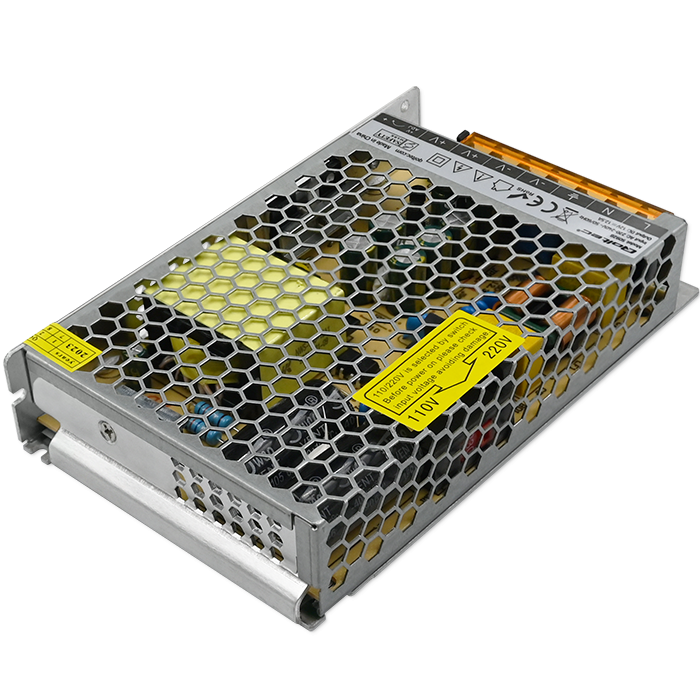

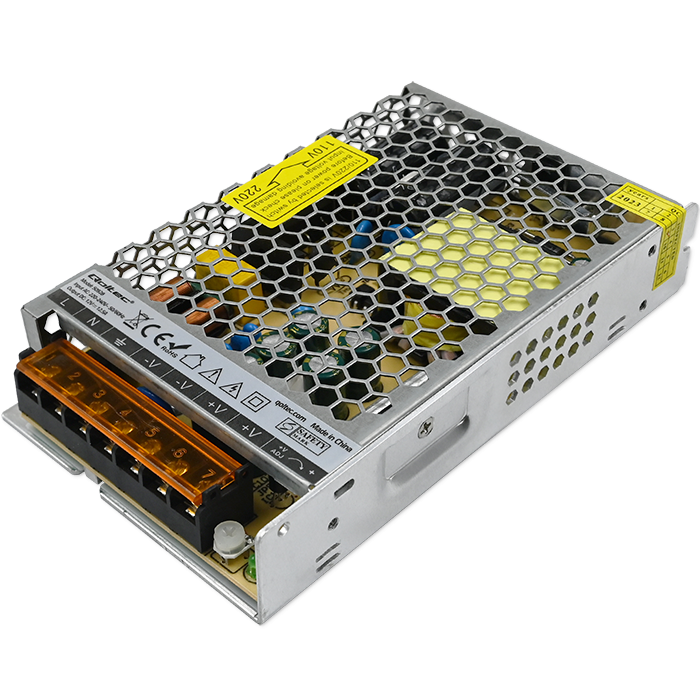

Switching power supply in a metal housing, converts 230V alternating voltage into 12V DC. It is intended for indoor use. Made of electronic components placed on a printed circuit board in a metal housing.
Working temperature
-20°C ~ +60°C
Storage temperature
-40°C ~ +80°C
Working humidity
20 ~ 90%, whitout condense

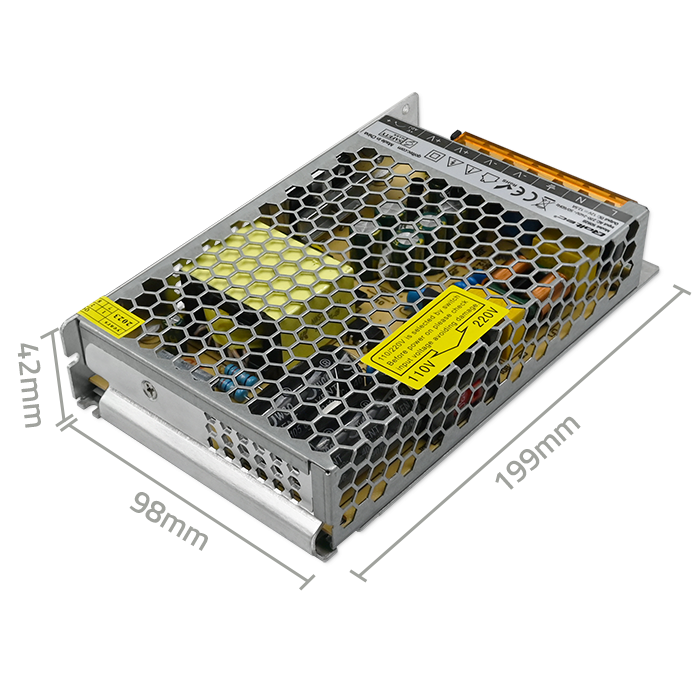

199 x 98 x 42 mm
98 x 42 x 199 mm
Package depth / length
105 mm
Package width
46 mm
Package height
208 mm
Net weight
0,6250 kg
Gross weight
0,4670 kg
24 months
EAN code
