Qoltec LED Driver 12VDC | 10A | 9 channels
Qoltec LED Driver IP20 | 60W | 12V | 5A | Slim case

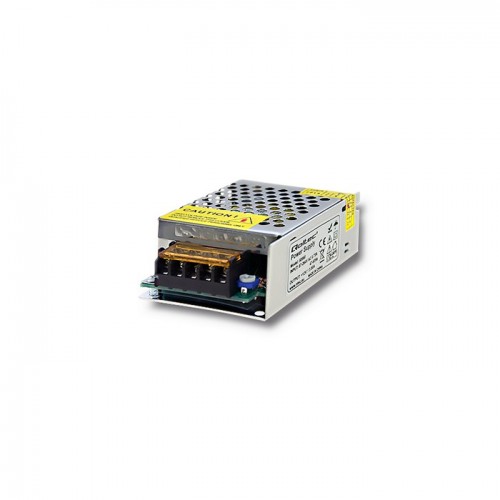

Qoltec LED Driver IP20 | 36W | 12V | 3A
Product code: 50960
High-quality Qoltec LED Power Supply destined to power led strips, modules, panels, led bulbs and other electronic devices powered by 12VDC.
Power: 36 W
Output Voltage: 12 V
Output current: 3 A
Technical data
Producer
Qoltec
Input voltage
220-240 V
Output voltage
12 V
Voltage adjustment
10.8 - 13.2V
AC current
0.57A/90V
Output current
3 A
Overload
Larger than 105% of capacity | restoration after abnormity removed
Frequency range
47-63Hz
Surge current
Cold start: 65A/230VAC
Hold time
50ms/230VAC
Start and rise time
1000ms,30ms/230VAC
Vibration proff
10~500Hz,5G 10min/cycle, Xˎ Yˎ Z axes 60 min each
Linear Adjustment
±0.5%
Load Adjustment
±0.5%
R&N
150mVp-p
Rated Power
36 W
IP Rating
IP20
Additional information
Aluminum case
OTHER PARAMETERS
Working temperature
-20~ +60°C
Storage temperature
-40~+80°C
Working humidity
20~90%, whitout condense
Dimensions
58 x 33 x 82 mm
Package depth / length [mm]
65
Package width [mm]
44
Package height [mm]
95
Net weight [kg]
0.1300
Gross weight [kg]
0.1390
Warranty
24 months
EAN code
5901878509600
