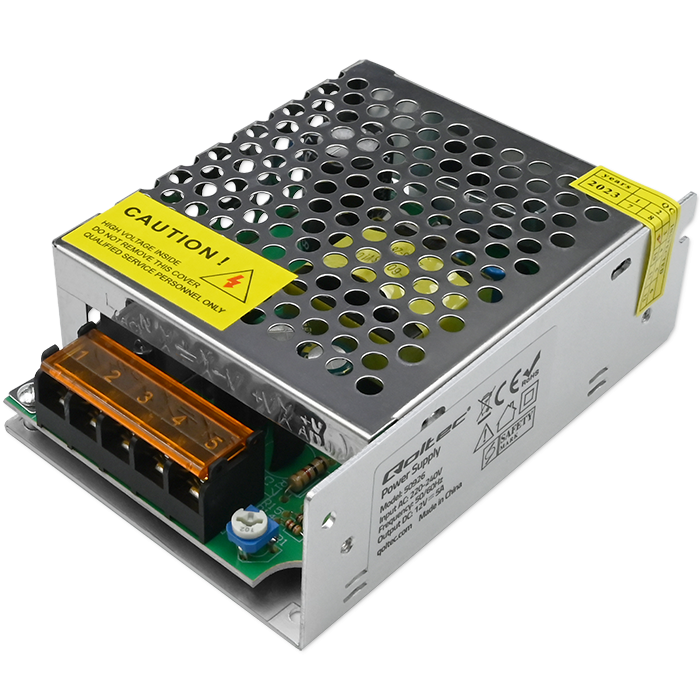

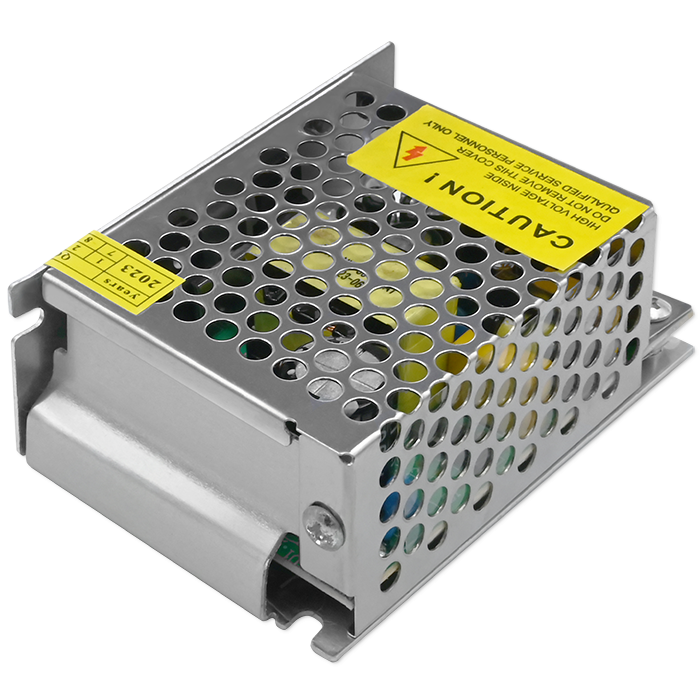

Qoltec LED Driver IP20 | 60W | 12V | 5A

Qoltec LED Driver IP20 | 60W | 12V | 5A

Product code: 50926

The LED switching power supply is a device characterized by stability and operational reliability. Thanks to the highest quality components, the power supply meets the expectations of the most demanding customers.

It is designed to power LED strips, modules, panels, LED tapes, bulbs and many other electronic parts powered by 12V.

Reliable LED supply

Are you looking for a reliable way to power the LED strip in your home? Or maybe in your company LED modules are an important element of the lighting installation? If so, you've come to the right place. The Qoltec brand has prepared a wide selection of modular power supplies for you, which are perfect for both home and office work. Thanks to their differentiation in terms of power, you can easily choose the model that suits you.

Safe solution

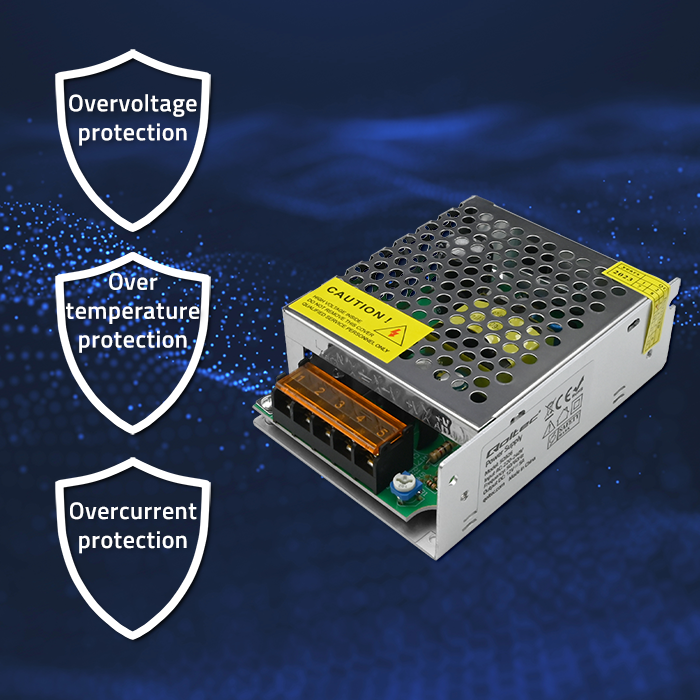

Our device is equipped with modern technologies ensuring protection against:
- overvoltage - protects against too low or too high voltage,
- overloads - protects against power line overload,
- short circuits - protects against short circuits in the supply circuit

Confidence confirmed by a warranty

You value the quality of purchased equipment so our projects and solutions are focused on meeting your expectations. Each modular power supply is covered by 24 months warranty.

Technical data
Producer
Qoltec
Package size
82 x 42 x 119 mm
Usable power
60 W
Input voltage
220 V - 240 V
Output voltage
12 V
Output current
5 A
Frequency range
50 Hz
AC current
0.92 A / 90 V ; 0.38 A / 220 V
Input Voltage Range
175 - 264 VAC / 120 - 370 VDC
Voltage Accuracy
±1%
Voltage adjustment
10.8 - 13.2 V
Surge current
Cold start: 65 A / 230 VAC
Safety
Overload protection
Overvoltage protection
Short-circuit protection
IP Rating
IP 20
Efficiency
80%
Overload
Larger than 105% of capacity | restoration after abnormity removed
Hold time
50 ms / 230 VAC
Start and rise time
1000 ms, 30 ms / 230 VAC
Vibration proff
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z axes 60 min each
Linear Adjustment
±0.5%
Load Adjustment
±0.5%
Additional information

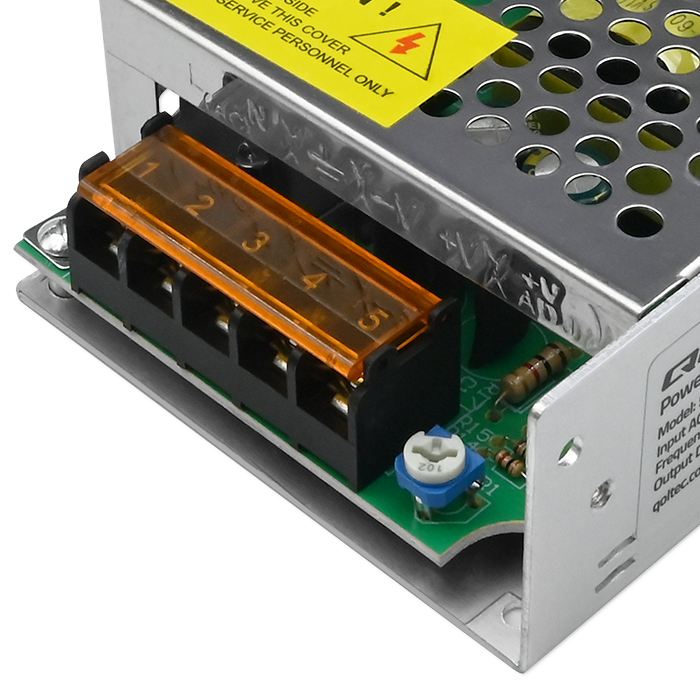

Switching power supply in an aluminum housing, converts 230V alternating voltage into 12V DC. It is intended for indoor use. Made of electronic components placed on a printed circuit board in a metal housing.
Working temperature
-20°C ~ +60°C
Storage temperature
-40°C ~ +80°C
Working humidity
20 ~ 90%, whitout condense

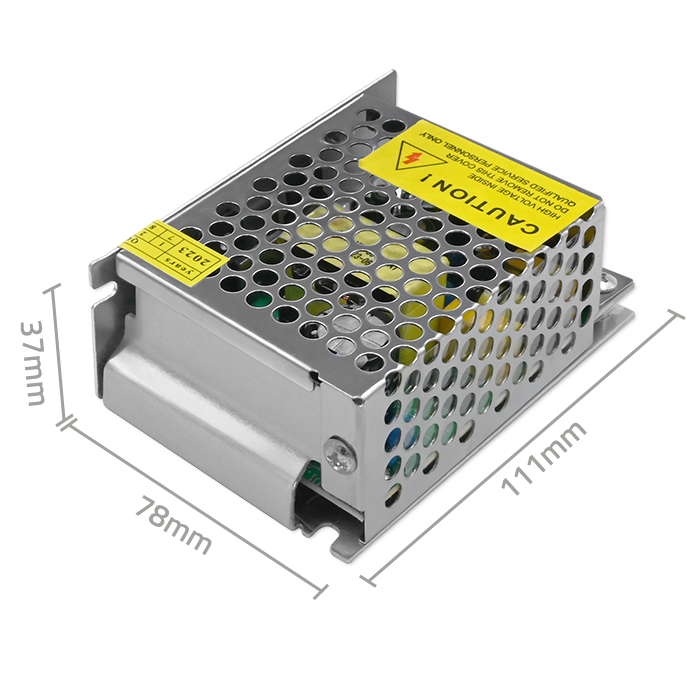

Dimensions
110 x 78 x 35 mm
Dimensions
78 x 37 x 111 mm
Package depth / length
82 mm
Package width
41 mm
Package height
119 mm
Net weight
0,2080 kg
Gross weight
0,2280 kg
Warranty
24 months
EAN code
5901878509266
