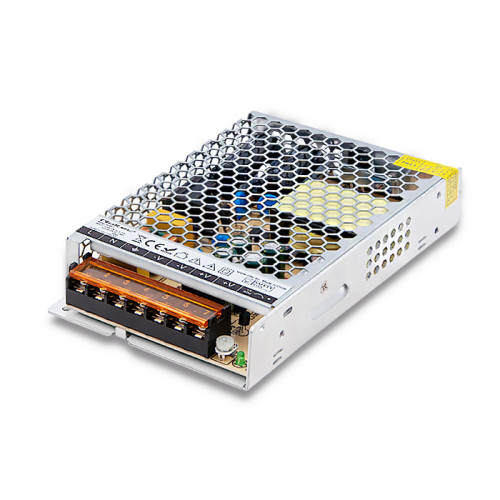

Qoltec LED Driver IP20 | 150W | 12V | 12.5A | Slim

Qoltec LED Driver IP20 | 150W | 12V | 12.5A | Slim

Product code: 50967

LED switching power supply is a device characterized by stability and reliable operation. Thanks to the use of the highest quality components, the power supply meets the expectations of the most demanding customers. The presented "Slim" variant, thanks to its size, will facilitate the selection of an appropriate place for installation.

It is designed to power LED strips, modules, panels, strips, LED bulbs and many other electronic devices powered by 12V DC.

Reliable LED supply

zasilacz Are you looking for a reliable way to power the LED strip in your home? Or maybe in your company LED modules are an important element of the lighting installation? If so, you've come to the right place. The Qoltec brand has prepared a wide selection of modular power supplies for you, which are perfect for both home and office work. Thanks to their differentiation in terms of power, you can easily choose the model that suits you.

Stylish and ecological

zasilacz The presented model has a compact size, so you can easily place the power supply in the place of your choice. In addition, our company makes every effort to protect the environment as much as possible, thus the presented LED power supply is packed in an elegant biodegradable box.

Safe solution
Our device is equipped with modern technologies ensuring protection against:
- overvoltage - protects against too low or too high voltage,
- overloads - protects against power line overload,
- short circuits - protects against short circuits in the supply circuit
Confidence confirmed by a warranty

Do you care about the high quality of the product you buy? Our solutions will meet your expectations. Each of the modular power supplies we offer is covered by a 24-month warranty valid from the date of purchase.


Technical data
Producer
Qoltec
Usable power
150 W
Input voltage
220 V - 240 V
Output voltage
12 V
Output current
12.5 A
Frequency range
50 - 60 Hz
AC current
2.8 A / 110 V ; 1.4 A / 220 V
Input Voltage Range
AC 110 V ± 15% / AC 220 V ± 15% changed by switch
Voltage Accuracy
±1%
Voltage adjustment
10.8 - 13.2 V
Surge current
Cold start: 65 A / 230 VAC
Safety
Overload protection
Overvoltage protection
Short-circuit protection
IP Rating
IP 20
Efficiency
80%
Overload
Larger than 105% of capacity | restoration after abnormity removed
Hold time
50 ms / 230 VAC
Start and rise time
1000 ms, 30 ms / 230 VAC
Vibration proff
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z axes 60 min each
Linear Adjustment
±0.5%
Load Adjustment
±0.5%
R&N
150 mVp-p
Additional information
Switching power supply in a metal housing, converts 230V alternating voltage into 12V DC. It is intended for indoor use. Made of electronic components placed on a printed circuit board in a metal housing.
Working temperature
-20°C ~ +60°C
Storage temperature
-40°C ~ +80°C
Working humidity
20 ~ 90%, whitout condense
Dimensions (D/L x W x H)
30 x 97 x 159 mm
Package contents
LED power supply
Package depth / length [mm]
103
Package width [mm]
35
Package height [mm]
168
Net weight [kg]
0.3920
Gross weight [kg]
0.4190
Warranty
24 months
EAN code
5901878509679
Downloads
Product card in PDF
Technical support

If you have problem with this product please contact us using this form.
You can also contact us using telephone, phone numbers are in contact.

I have problem with this product
Retail sales

You can find our product in well known stores with electronic equipment.

Wholesale

Ntec is an exclusive distributor of Qoltec product in Poland www.en.b2b.ntec.eu
