Product code: 52580

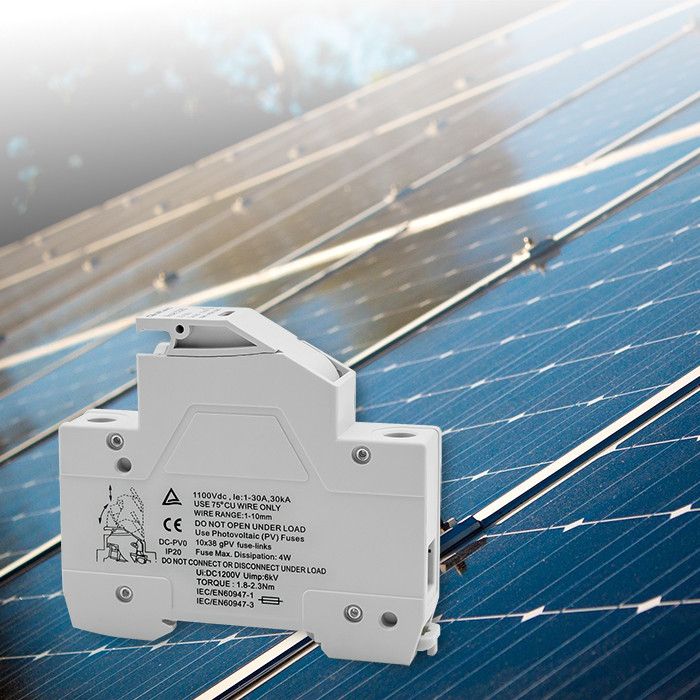

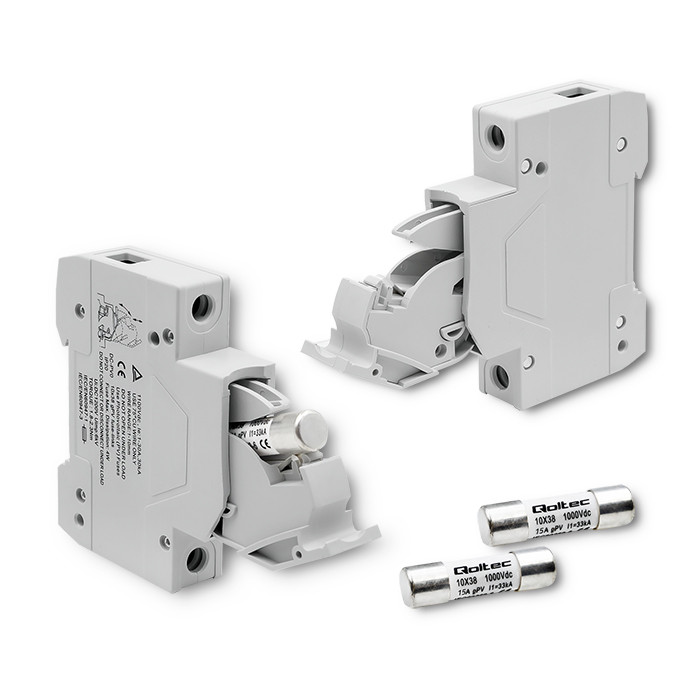

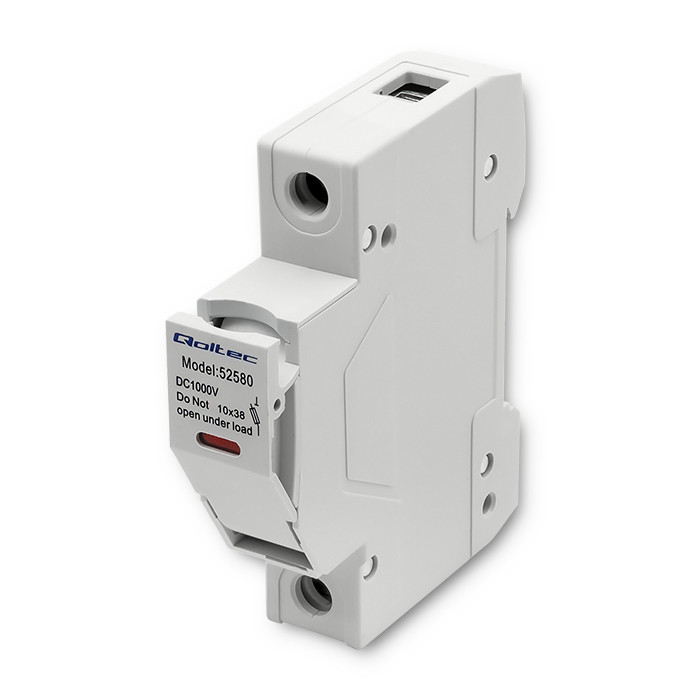

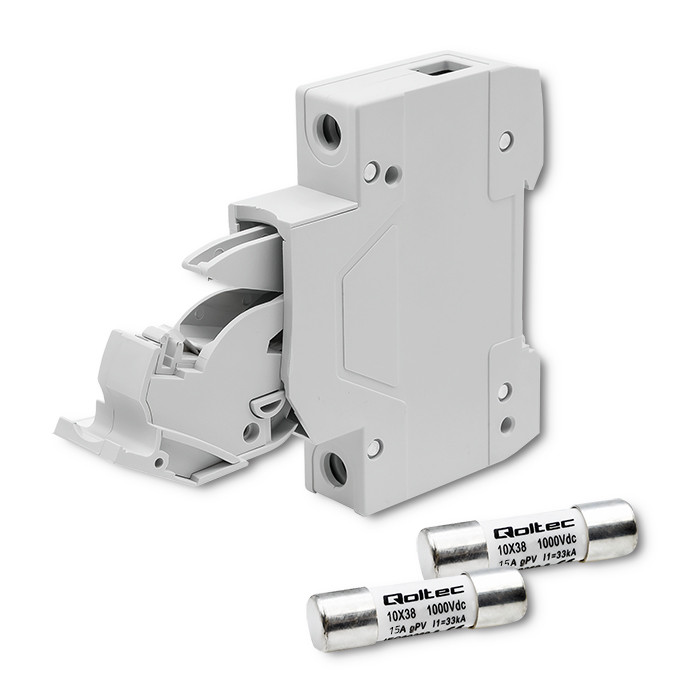

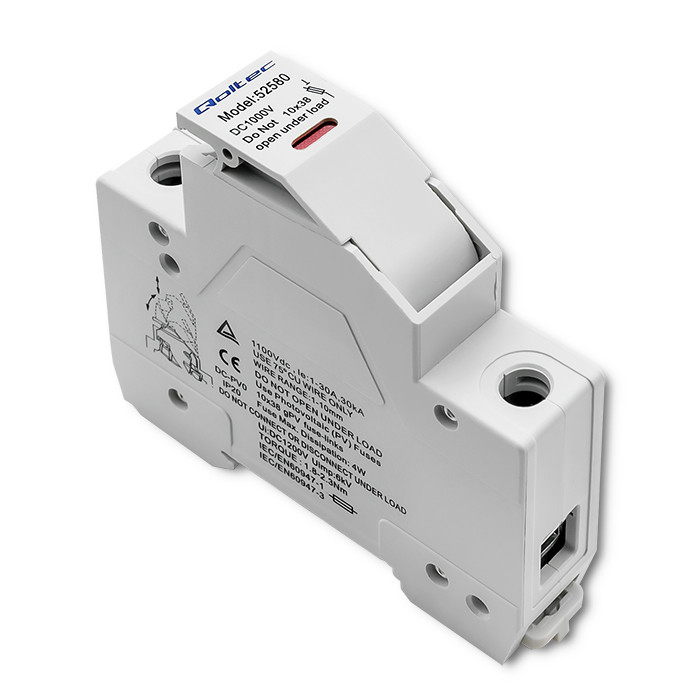

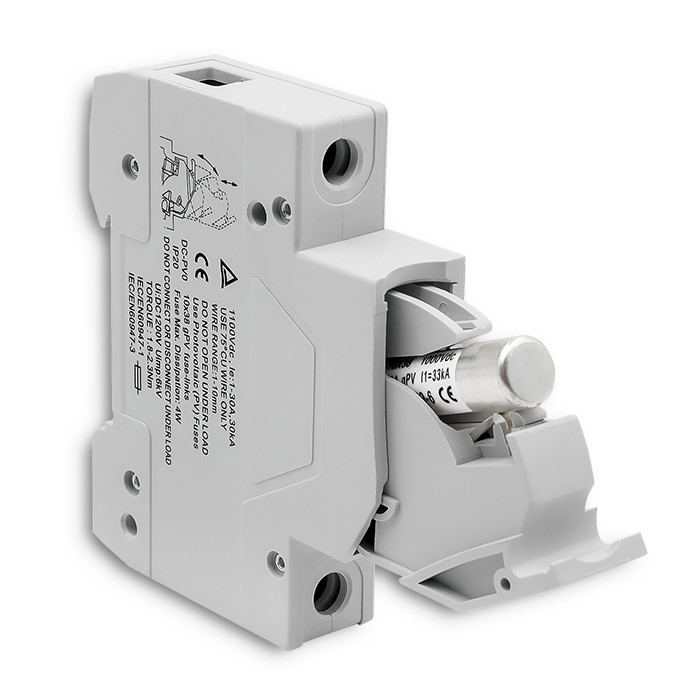

Qoltec's 1000V fuse will work well as overcurrent and short circuit protection. The set includes a fuse housing with a diode and a replaceable 15A insert with dimensions of 10x38 mm . For use in photovoltaic systems.

Safety is our priority - trust our fuses

modul Every circuit of an electrical installation must be properly protected from the effects of overloads and short circuits, so it is mandatory to use the appropriate protection. One such device is a DC fuse, which helps remove the current when the current in the circuit is too high. It effectively eliminates the risk of damage to the installation caused by a temporary overvoltage or short circuit, which can damage the network and connected equipment.

High quality and durability

DIN Qoltec brand DC fuse is made of high quality material moreover it features :
- fireproof housing,
- durability,
- made of corrosion-resistant material,
- replaceable and easy to use,

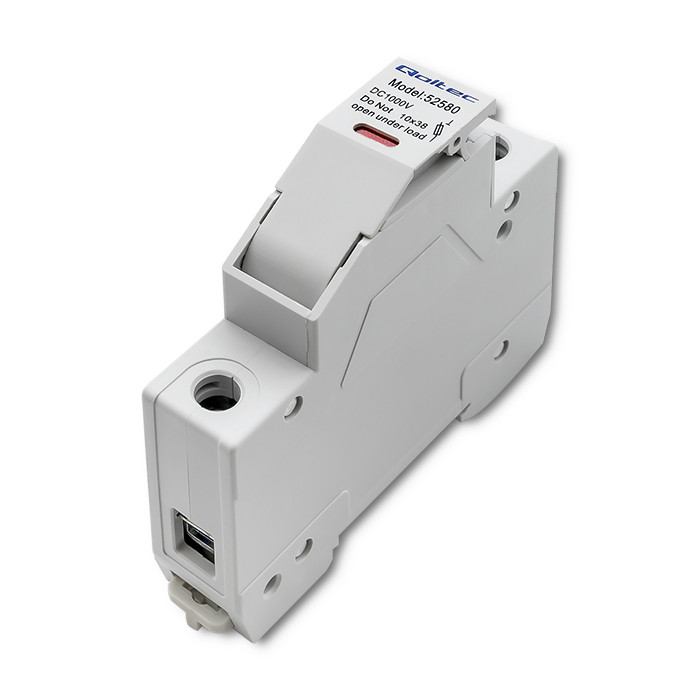

- It has a diode indicating the operation of the fuse,
- long service life.

Confidence confirmed by a warranty

modul Do you care about the high quality of the product you buy? Our solutions will meet your expectations. The product comes with a 24-month warranty valid from the date of purchase.


Technical data
Producer
Qoltec
Fuse
YES
Rated voltage
1000V
Rated current
15A
Class
II
Number of poles
1P

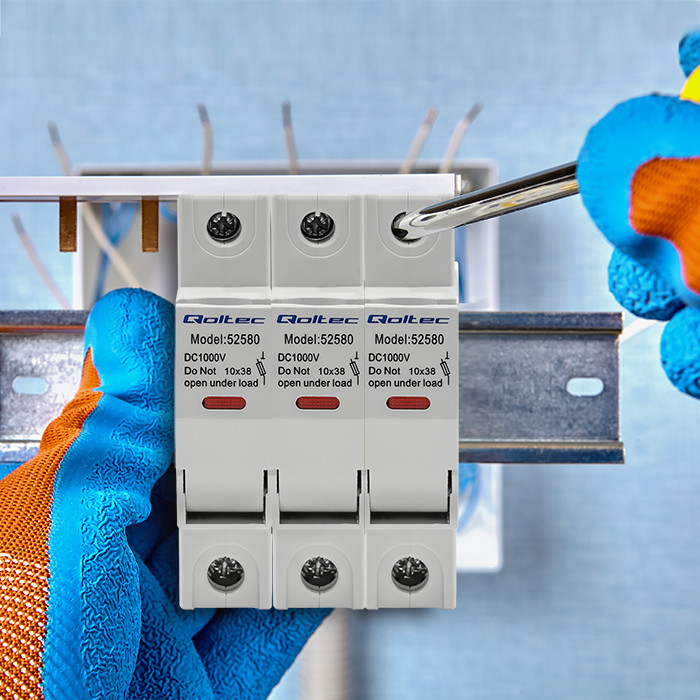

Type of assembly
Szyna TH35
IP rating
IP20
Usage
Photovoltaic, solar panels
Material
PA66, cooper
Relative humidity
+20℃≤95% +40℃≤50%
Operating temperature
-10˚C ~ +85˚C

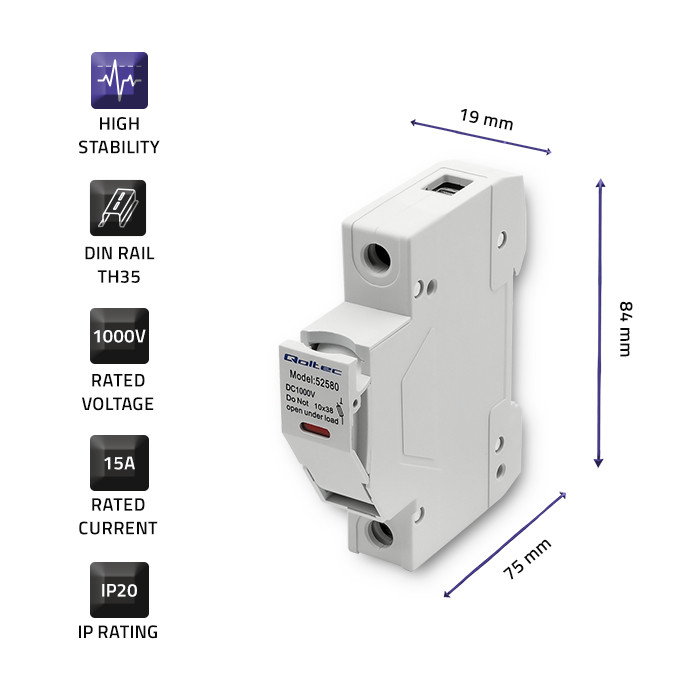

Dimensions (D/L x W x H)
75 x 85 x 19 mm
Net weight [kg]
0.084
Gross weight [kg]
0.085
Certificate
CE
Warranty
24 miesiące
EAN code
5901878525808
