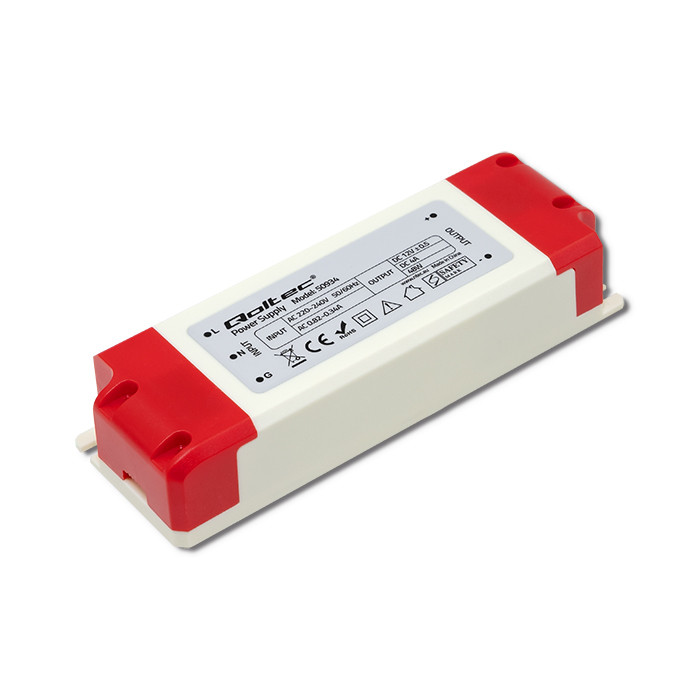

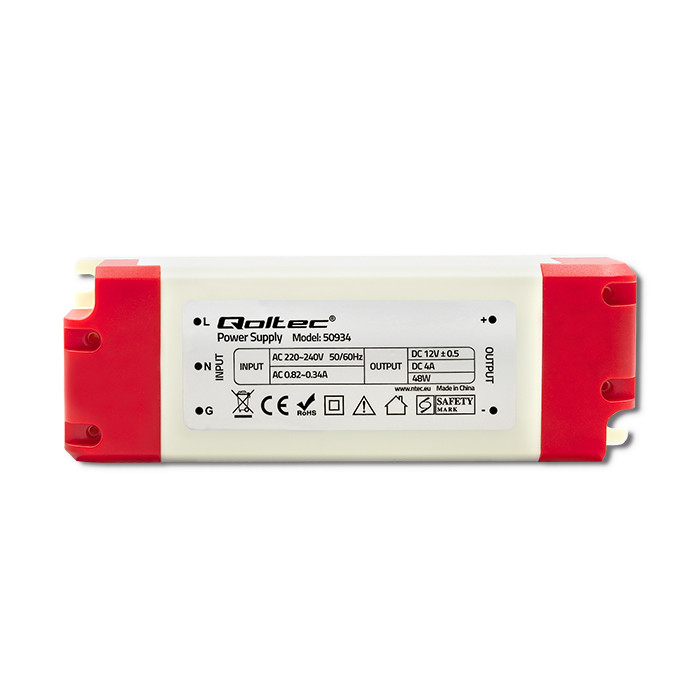

Qoltec LED Driver IP20 48W | 12V | 4A

Qoltec LED Driver IP20 48W | 12V | 4A

Product code: 50934

The LED switching power supply is a device characterized by stability and operational reliability. Thanks to the highest quality components, the power supply meets the expectations of the most demanding customers.
It is designed to power LED strips, modules, panels, LED tapes, bulbs and many other electronic parts powered by 12V.

Reliable LED supply

zasilacz

Are you looking for a reliable way to power the LED strip in your home? Or maybe in your company LED modules are an important element of the lighting installation? If so, you've come to the right place. The Qoltec brand has prepared a wide selection of modular power supplies for you, which are perfect for both home and office work. Thanks to their differentiation in terms of power, you can easily choose the model that suits you.

Safe solution

zasilacz

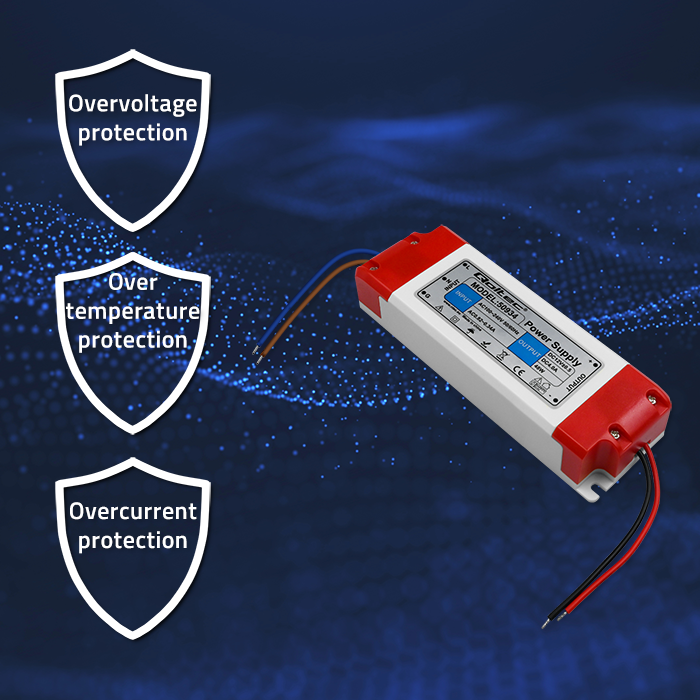

Our device is equipped with modern technologies ensuring protection against:
- overvoltage - protects against too low or too high voltage,
- overloads - protects against power line overload,
- short circuits - protects against short circuits in the supply circuit

Confidence confirmed by a warranty

zasilacz

You value the quality of purchased equipment so our projects and solutions are focused on meeting your expectations. Each modular power supply is covered by 24 months warranty.


Technical data
Producer
Qoltec
Usable power
48W
Input voltage
220 V - 240 V
Output voltage
12 V
Voltage Accuracy
±1%
Input Voltage Range
110 - 220 VAC
AC current
0.83 A / 100 V ; 0.34 A / 220 V
Output current
4 A
Overload
Larger than 105% of capacity | restoration after abnormity removed
Frequency range
50 - 60 Hz
Surge current
Cold start: 65 A / 230 VAC
Hold time
50 ms / 230 VAC
Start and rise time
1000 ms, 30 ms / 230 VAC
Vibration proff
10 ~ 500 Hz, 5G 10 min/cycle, Xˎ Yˎ Z axes 60 min each
Load Adjustment
±0.5%
Efficiency
75%
IP Rating
IP 20
Safety
Overload protection
Overvoltage protection
Short-circuit protection
Additional information
Plastic case
Additional information

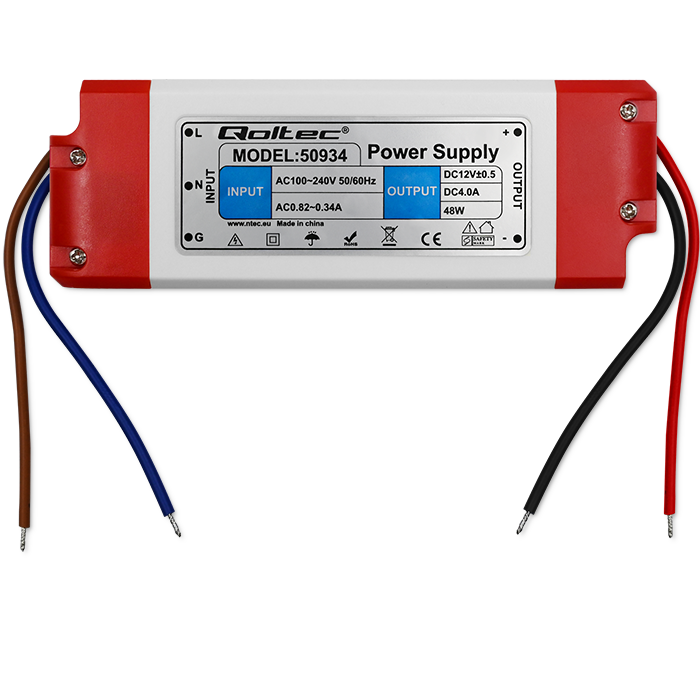

Switching power supply in a plastic housing converts 230V alternating voltage into 12V DC. It is intended for indoor use. Made of electronic components placed on a printed circuit board.
OTHER PARAMETERS
Colour
White, red
Cable length
0.09m
Working temperature
-20°C ~ +60°C
Storage temperature
-40°C ~ +80°C
Working humidity
20 ~ 90%, whitout condense

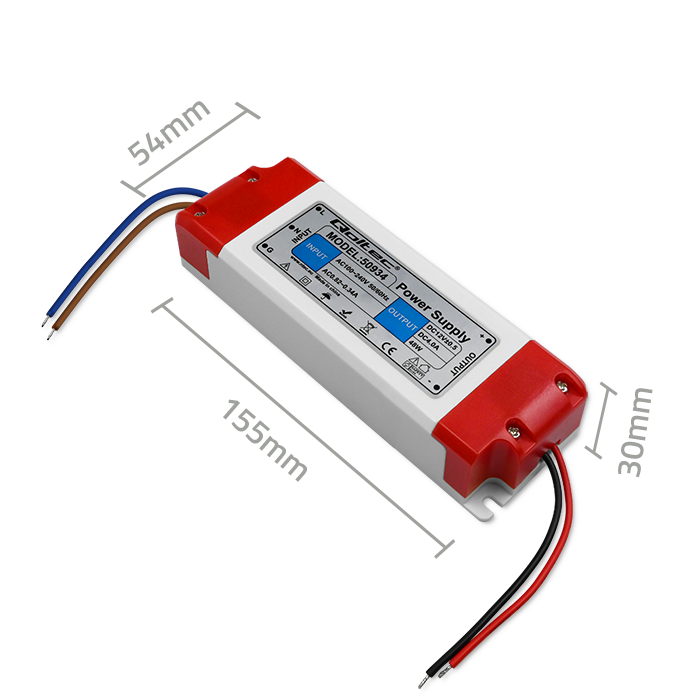

Dimensions (D/L x W x H)
30 x 155 x 54 mm
Package
Box
Package contents
1 x LED power supply
Package depth / length [mm]
58
Package width [mm]
165
Package height [mm]
35
Net weight [kg]
0.1780
Gross weight [kg]
0.1980
Warranty
24 months
EAN code
5901878509341
Downloads
Product card in PDF
Technical support

If you have problem with this product please contact us using this form.
You can also contact us using telephone, phone numbers are in contact.

I have problem with this product
Retail sales

You can find our product in well known stores with electronic equipment.

Wholesale

Ntec is an exclusive distributor of Qoltec product in Poland www.en.b2b.ntec.eu

Safety information
English safety information
