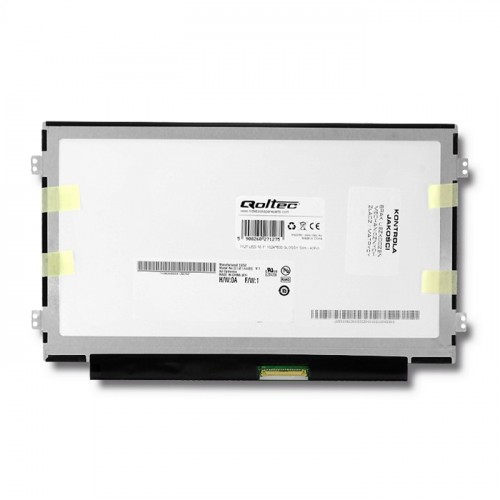

Qoltec Screen LED 10.1"
Screen LED 11.6"
Qoltec Screen LED 10.1"
Product code: 7127.LED_10.1_G_SLIM
Model / part number: LTN101NT05
Backlight technology: LED
Thickness: 3mm
Screen size: 10.1"

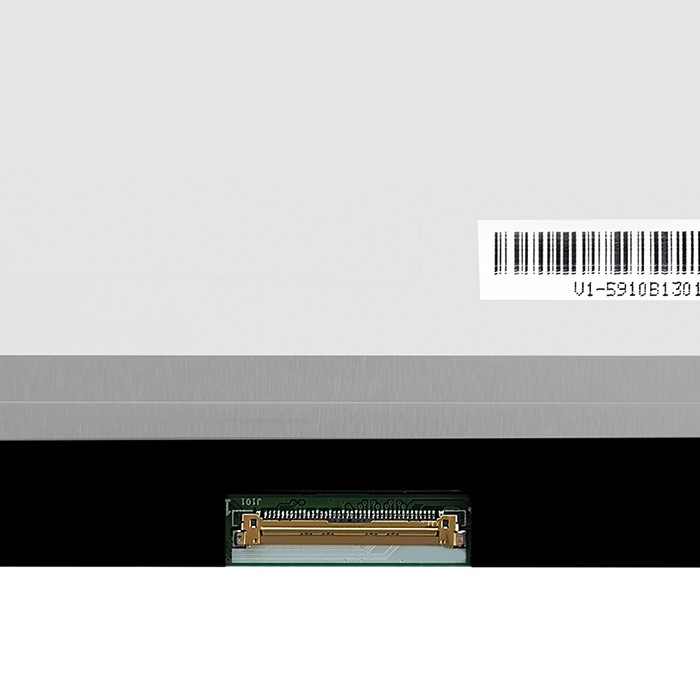

Connectors: 40 pin
Surface: Glossy
NOTE! Compare photo to own part for exchange
Screen LED

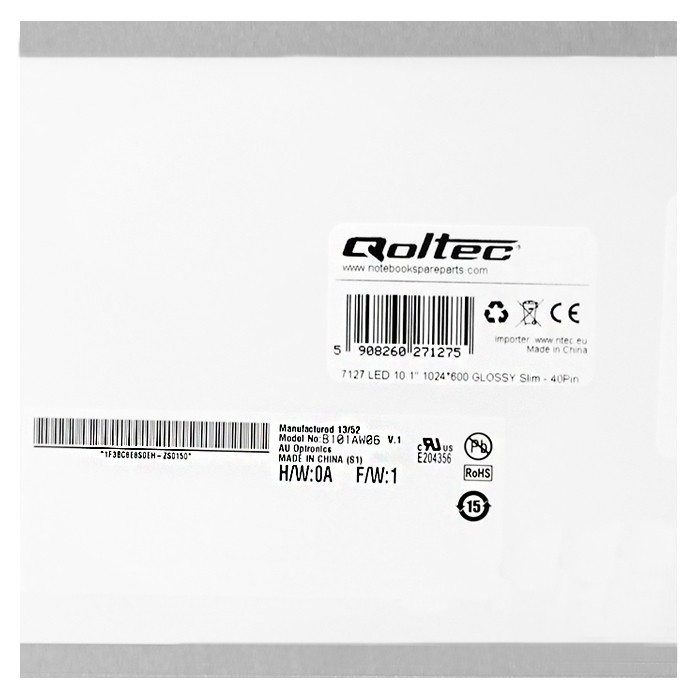

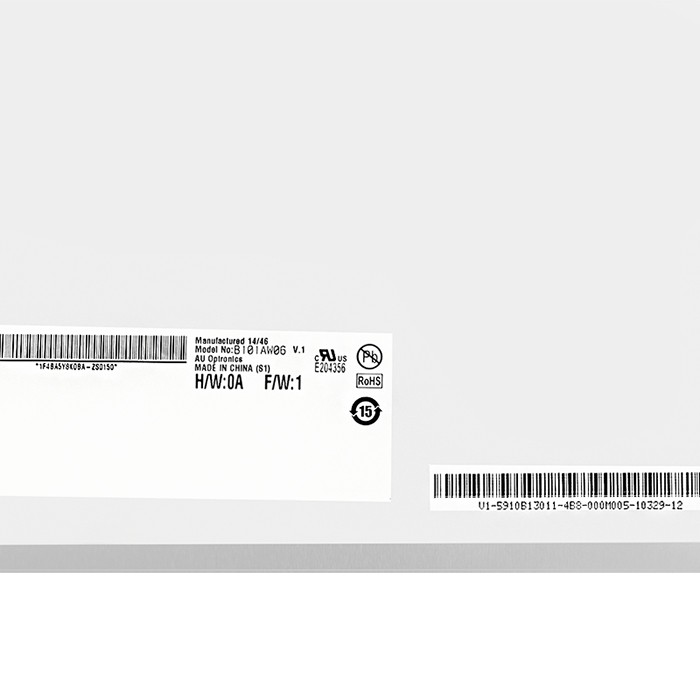

The notebook screen is the main part of the laptop allows you to work. In order to fit an appropriate model should be verified compatibility list contained in the product description on the page qoltec.pl. If in doubt, please check a number of the original matrix located on the backside - for example LTN101NT05, where LTN is the designation of the manufacturer, 101 is the number of inches (10.1 "), the remaining characters to define a series of laptops that are tailored matrix. Changing even one character can attest to the difference in the location of the mounting clamps or tape, and other parameters.
In choosing the correct model will help you the configurator located on our website or at http://notebookspareparts.pl
Technical data
Producer
Qoltec
Model / part number
LTN101NT05
Backlight
LED
Designed for brands
Acer, Asus, IBM/Lenovo, Samsung
Quality assessment
GRADE A+
Screen size
10.1"
Resolution
1024*600
Connector
40 pin
Configurator
Replaces
Au Optronics: B101AW06 V.1 H/W:0A, B101AW06 V.0 H/W:0A, B101AW02 V.0 H/W:0B, B101AW06 V.0 H/W:1A, B101AW02 V.3 H/W:0A
Chi Mei: N101L6-L0D, N101L6-L0C
Samsung: LTN101AT09, LTN101NT05, LTN101NT08, LTN101NT08-802, LTN101NT08-805, LTN101NT08-808, LTN101NT09-805
HannStar: HSD101PHW3,
Chunghwa: CLAA101NB03A
LG Philips: LP101WSB-TLN1
Chi Mei: N101L6-L0D, N101L6-L0C
Samsung: LTN101AT09, LTN101NT05, LTN101NT08, LTN101NT08-802, LTN101NT08-805, LTN101NT08-808, LTN101NT09-805
HannStar: HSD101PHW3,
Chunghwa: CLAA101NB03A
LG Philips: LP101WSB-TLN1
Gross weight [kg]
0.6280
Net weight [kg]
0.6180
Warranty
12 months
EAN code
5908260271275
Compatible with
Acer Aspire One ZH9
Acer Aspire One D260
Acer Aspire One D257
Acer Aspire One D255
Acer Aspire One 521
Acer Aspire One Happy
Packard Bell Dot S2
Lenovo IdeaPad S10 VER.2
Lenovo IdeaPad S10-3
Asus Eee PC 1008
Asus Eee PC 1008H
Asus Eee PC 1008HA
Asus Eee PC 1008HAG
Asus Eee PC 1008PE
Asus Eee PC 1018PB
Medion Akoya E1222
Packard-Bell 1005
Packard-Bell DOT S2
Packard-Bell PAV80
MSI Wind U160
Samsung NC210
Samsung NC110
Samsung NC110-A01
Samsung NP-NC110-HZ1PL
Samsung NP-NC110-A02PL
Creatvie Tablet Ziio 10
