Archival product Screen LED 10.1"

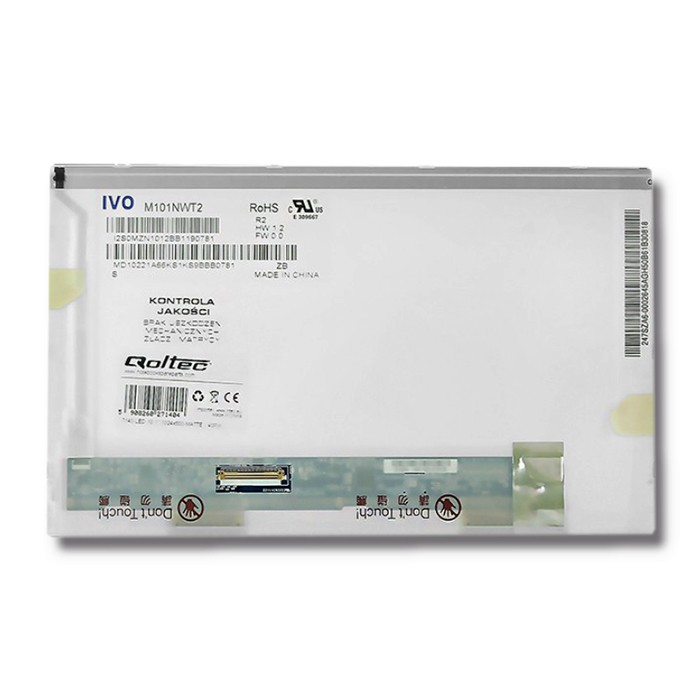

Screen LED 10.1"

Product code: 7140.LED_10.1_M

Model / part number: M101NWT2
Backlight technology: LED
Screen size: 10.1"
Connectors: 40 pin
Surface: Glossy

NOTE! Compare photo to own part for exchange

Screen LED

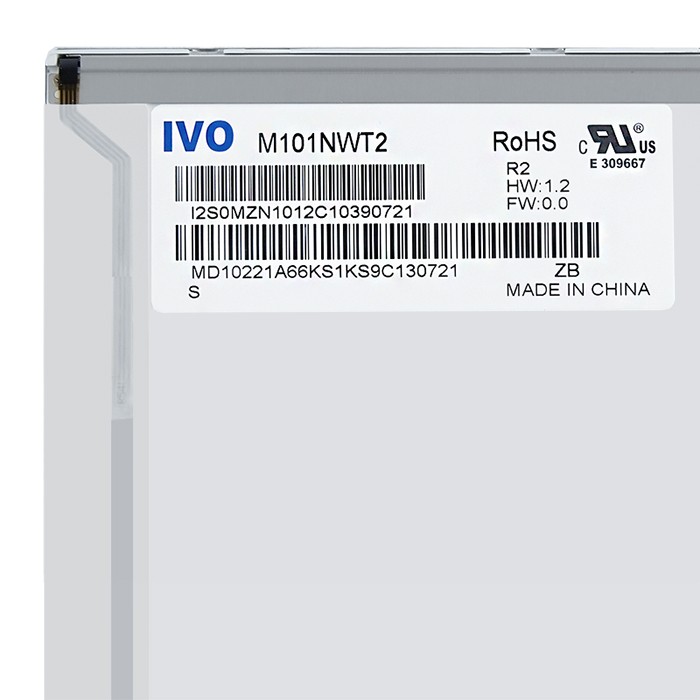

The notebook screen is the main part of the laptop allows you to work. In order to fit an appropriate model should be verified compatibility list contained in the product description on the page qoltec.pl. If in doubt, please check a number of the original matrix located on the backside - for example: M101NWT2, where LTN is the designation of the manufacturer, 101 is the number of inches (10.1 "), the remaining characters to define a series of laptops that are tailored matrix. Changing even one character can attest to the difference in the location of the mounting clamps or tape, and other parameters. In choosing the correct model will help you the configurator located on our website or at http://notebookspareparts.pl

Technical data
Producer
Qoltec
Model / part number
M101NWT2
Backlight
LED
Designed for brands
Acer, Asus, Dell, IBM/Lenovo, HP/Compaq, Samsung, Toshiba
Quality assessment
GRADE A+
Screen size
10.1"
Resolution
1024*600
Connector
40 pin
Configurator
notebookspareparts.pl
Replaces
Au Optronics: B101AW01, B101AW01 V. 0, B101AW01 V. 2, B101AW01 V3, B101AW03, B101AW03 V. 0, B101AW03 V.0 HW1A, B101AW03 V.0 HW2A, B101AW03 V.0 HW3A, B101AW03 V.0 HW5A, B101AW03 V.1, B101AW03 V.1 HW4A, B101AW03 V.1 HW5A, B101AW07 V.0
Chi Mei: N101L6-L01, N101L6-L01 Rev.C1, N101L6-L01 Rev.C2, N101L6-L02, N101N6-L02 Rev C. 1, N101L6-L03, N101L6-L0A, N101L6-L0B, N101L6-L11, N101L6-L0D (wersja nie slim),
LG Philips: LP101WSA-TLA1, LP101WSA-TLA2 , LP101WSA-TLN1, LP101WSA-TLN2, LP101WSA-TLB1, LP101WSA-TLB2, LP101WSA-TLP1, LP101WXA-TLA1, LP101WS1-TLA1, LP101WSA, LP101WSA (TL)(A1), LP101WSA (TL)(A2), LP101WSA (TL)(B1), LP101WSA (TL)(B2), LP101WSA (TL)(N1), LP101WSA (TL)(N2), LP101WSA (TL)(P1), LP101WXA-(TL)(A1), LP101WS1-(TL)(A1)
Samsung: LTN101NT02-101, LTN101NT02-A01, LTN101NT02-A02, LTN101NT02-A03, LTN101NT02-A04, LTN101NT02-B01, LTN101NT02-B01-AG, LTN101NT02-C01, LTN101NT02-T01, LTN101NT02-W05, LTN101NT06, LTN101NT07, LTN101NT07-801, LTN101NT07-901, LTN101NT07-W01
Chunhwa: CLAA101NB01A, CLAA101NC05
Hyndis: HT101WSB-101
Innolux: BT101IW03 V. 1, BT101IW01, BT101IW01 V.0, BT101IW02 V.0, BT101W03 V.1
Infovision: M101NWT2, M101NWT2 R2, M101NWT2-R2
Gross weight [kg]
0.5930
Net weight [kg]
0.5830
Warranty
12 months
EAN code
5908260271404
Compatible with
Acer Aspire One D150
Acer Aspire One D250
Acer Aspire One N270
Acer Aspire One Pro 531H
Acer Aspire One Z250
Acer Aspire One NAV50
Acer Aspire One D250-0BGk
Acer Aspire One 532h-2Dr
Acer Aspire One 533
Acer Aspire One ZG8531H-0DK
Asus Eee PC 1001PX-BLK059S
Asus Eee PC 1001PX
Asus Eee PC 1001PXD
Asus EEE PC 1015BX
Dell Mini 10
Dell Mini 1010
Dell Mini 1012
HP Mini 1099EA
HP Mini 1170CM
HP Mini 2140
HP Mini 2410
HP Mini 110
HP Mini 110-3100sw
HP Mini 210
HP Mini 210-2000ew
HP Mini 210-1000ew
HP Mini 210-2200ew
IBM/Lenovo IdeaPad S10e (nie S10)
IBM/Lenovo IdeaPad S9e
IBM/Lenovo IdeaPad S10-2
Samsung N110
Samsung N120
Samsung NP-N120-HAZ2DE
Samsung NP-N120-KA01AU
Samsung NP-N120-KA01DE
Samsung NP-N120-KA02DE
Samsung NP-N120-KA03DE
Samsung NP-N120-KA03UK
Samsung NP-N120-KA03US
Samsung NP-N120-KA04DE
Samsung NP-N120-KA04US
Samsung NP-N120-KA05DE
Samsung NP-N120-KA05UK
Samsung NP-N120-KA06DE
Samsung N130
Samsung N150
Samsung N310
Samsung NP-NC10
Samsung NP-NC10-KB01PL
Samsung NP-N110
Samsung NP-N110-KA01DE
Samsung NP-N110-KA02ES
Samsung NP-N110-KA01US
Samsung NP-N130
Samsung NP-N130-KA03DE
Samsung NP-N130-KA02DE
Samsung NP-N130-KA01DE
Samsung NP-N130-JA02DE
Samsung NP-N130-JA01DE
Samsung NP-N140
Samsung NP-N145
Samsung NP-N145 Plus
Samsung NP-N150
Samsung NP-N150 Plus
Samsung NP-N210
Samsung NP-NB550D
Samsung NP-NF210-A01PL
Toshiba Satellite NB200
Toshiba Satellite NB205
Toshiba Satellite NB250
Toshiba Satellite NB250-10
Toshiba Satellite NB250-107
Toshiba Satellite NB550
Toshiba Satellite NB550D
Toshiba Satellite NB300
Toshiba Satellite NB305
Toshiba Satellite NB520
Toshiba Satellite NB520-108
Toshiba Satellite NB520-10R
Toshiba Satellite NB500
Toshiba Satellite NB500-112
Toshiba Satellite NB505
MSI U160
EMachine 250-01g16I
EMachine 350
EMachine 250
