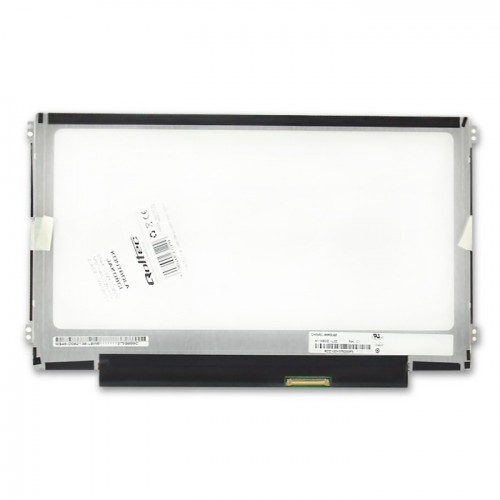

Archival product Screen LED 11.6"

Screen LED 11.6"

Product code: 7129.LED_11.6_G_SLIM

Model / part number: LP116WH2 TL N1
Backlight technology: LED
Screen size: 11.6"

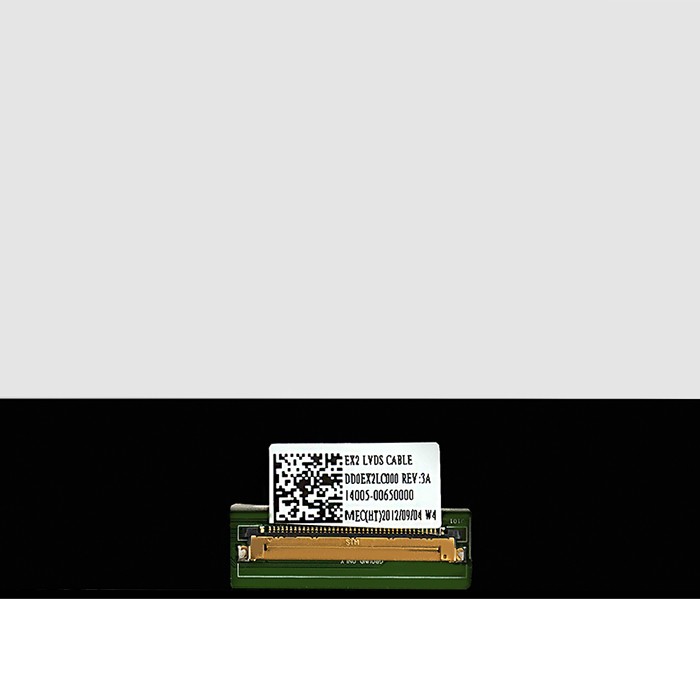

Connectors: 40 pin
Surface: Glossy

NOTE! Compare photo to own part for exchange

Screen LED

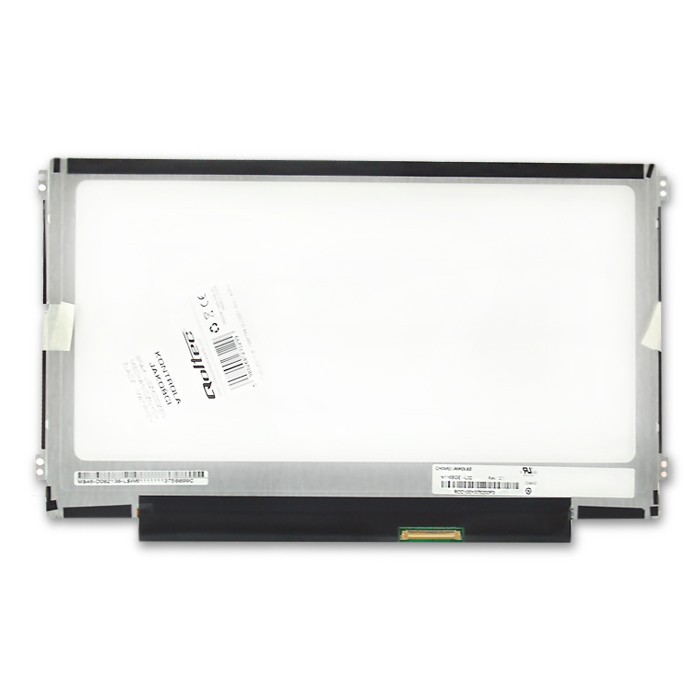

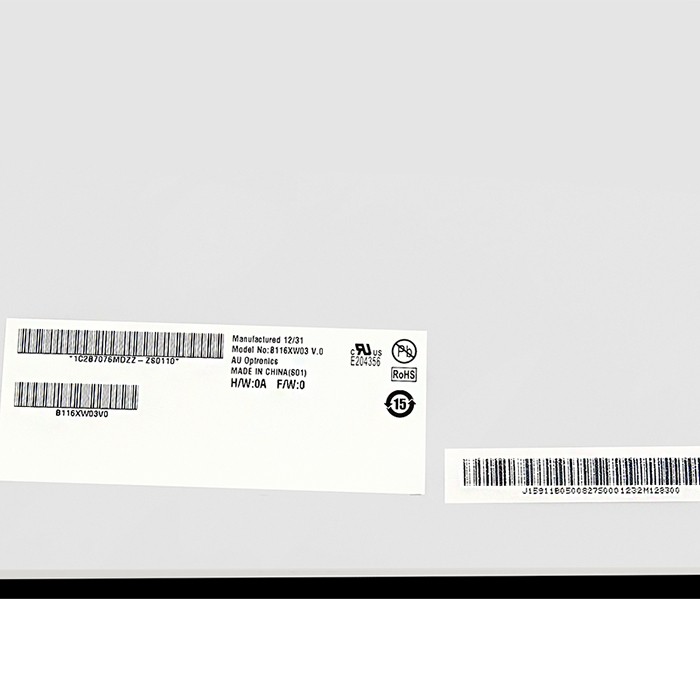

The notebook screen is the main part of the laptop allows you to work. In order to fit an appropriate model should be verified compatibility list contained in the product description on the page qoltec.pl. If in doubt, please check a number of the original matrix located on the backside - for example: LP116WH2 TL N1, where LTN is the designation of the manufacturer, 116 is the number of inches (11.6 "), the remaining characters to define a series of laptops that are tailored matrix. Changing even one character can attest to the difference in the location of the mounting clamps or tape, and other parameters. In choosing the correct model will help you the configurator located on our website or at http://notebookspareparts.pl

Technical data
Producer
Qoltec
Model / part number
LP116WH2 TL N1
Backlight
LED
Designed for brands
Dell, HP/Compaq, IBM/Lenovo, Sony
Quality assessment
GRADE A+
Screen size
11.6"
Resolution
1366*768
Connector
40 pin
Configurator
Replaces
Au Optronics: B116XW03 V.0, B116XW03 V.1, B116XW03 V.1 H/W:1A, B116XW01 V.0
LG Philips: LP116WH2-TLC1, LP116WH2-TLB1, LP116WH2-TLN1
Samsung: LTN116AT04, LTN116AT04-S01,, LTN116AT02
Chi Mei: N116BGE-L41 C1, N116BGE-L42 C1, N116BGE-L42 B2, N116B6-L04
Gross weight [kg]
0.5890
Net weight [kg]
0.5790
Warranty
12 months
EAN code
5908260271299
Compatible with
Asus X201E
Dell Inspiron 11z (1110)
Dell Inspiron M101z (1120)
Dell Alienware M11x
Dell Alienware M11xR2
Sony Vaio VPC-Y
Sony Vaio VPC-YB1S1E
Sony Vaio VPC-YB2M1E
Sony Vaio VPCYB21E
Sony VPC-YB3V1B,
Sony VPC-YB3V1E,
Sony VPC-YB3V1E/P
Sony PCG-31311M
Sony PCG-3131M
Sony PCG-31311L
HP Mini 311
HP Mini 311C
HP Pavilion DM1
HP Pavilion DM1-1030
HP Pavilion DM1-1035
HP Pavilion DM1-2011
Lenovo ThinkPad Edge E120
Lenovo ThinkPad Edge E125
